Data Link Connector: Locations

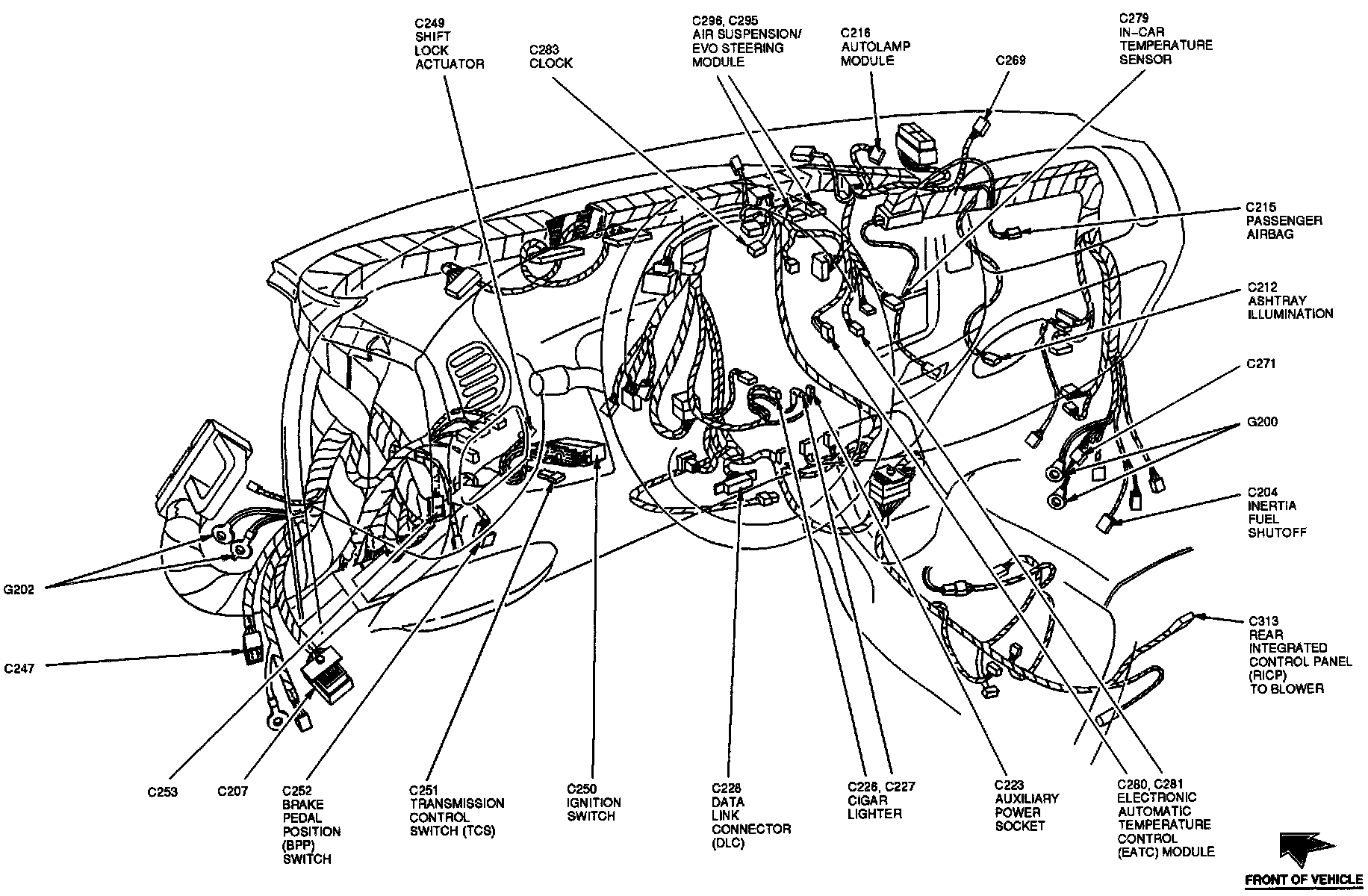

Instrument Panel Views:





The Data Link Connector is located behind center of the instrument panel.
