Ignition Coil: Service and Repair

REMOVAL







1. Disconnect the ignition coil electrical connection.

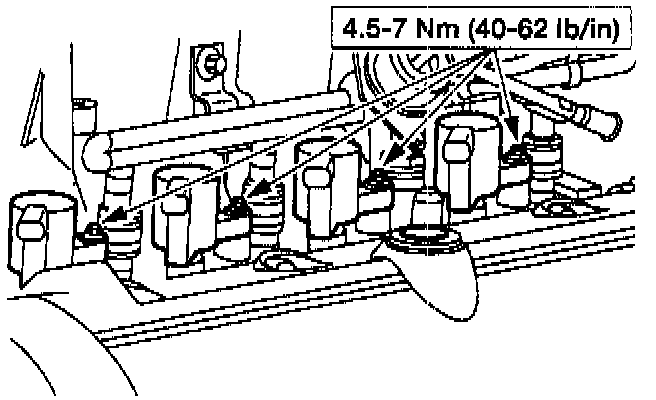

2. Remove the bolts.

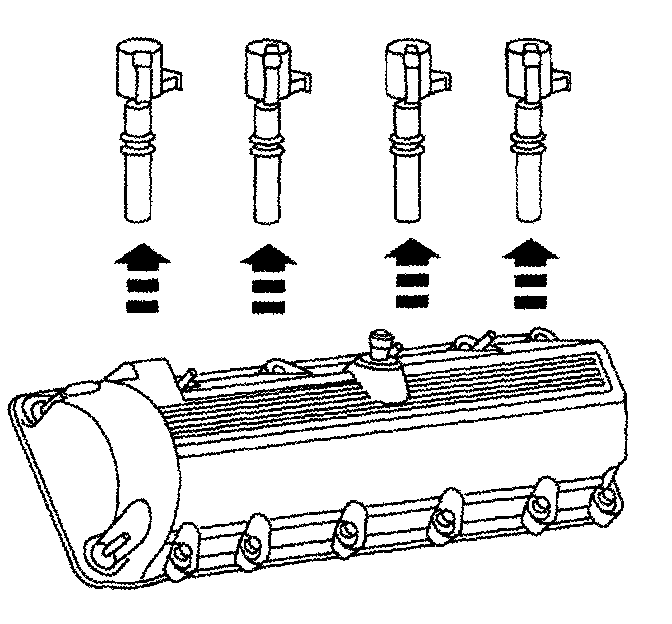

3. Remove the ignition coils.







INSTALLATION
1. Follow the removal procedure in reverse order.
