Window Glass: Service and Repair

REMOVAL

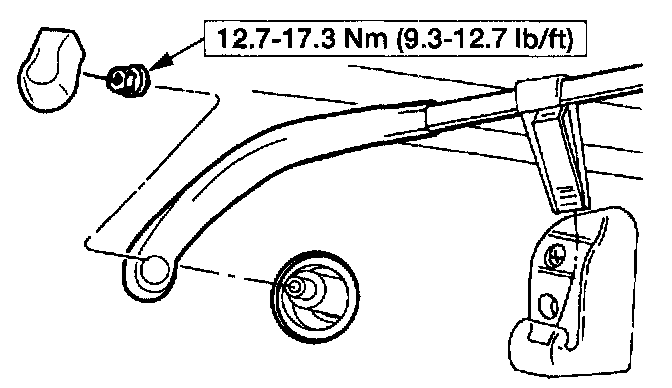

1. Remove the rear wiper arm.
1 Remove the cover.
2 Remove the nut.
3 Remove the rear wiper arm.

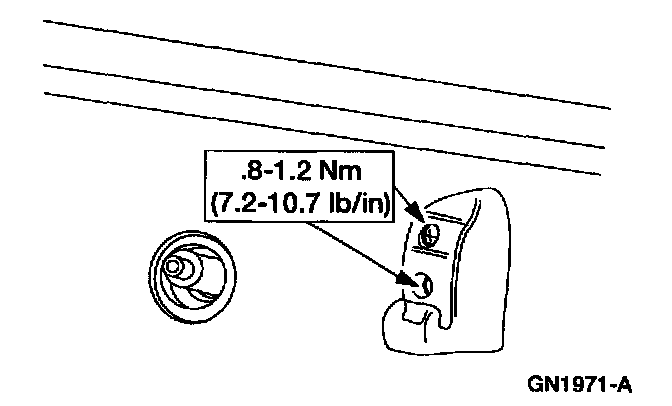

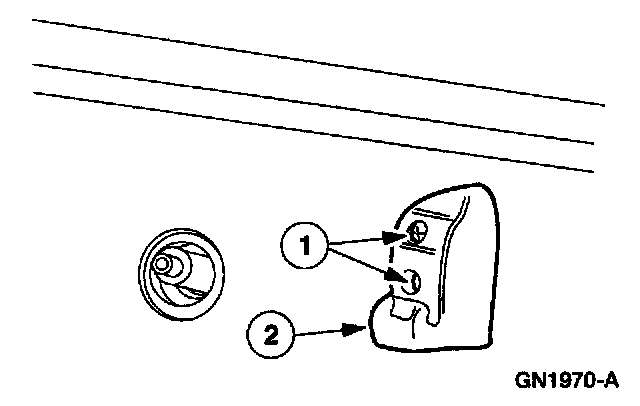

2. Remove the rear wiper stop.
1 Remove the screws.
2 Remove the rear wiper stop.

3. Remove the liftgate window glass.
4. Peel back the top corners of the watershield and remove the plugs at the top corners.

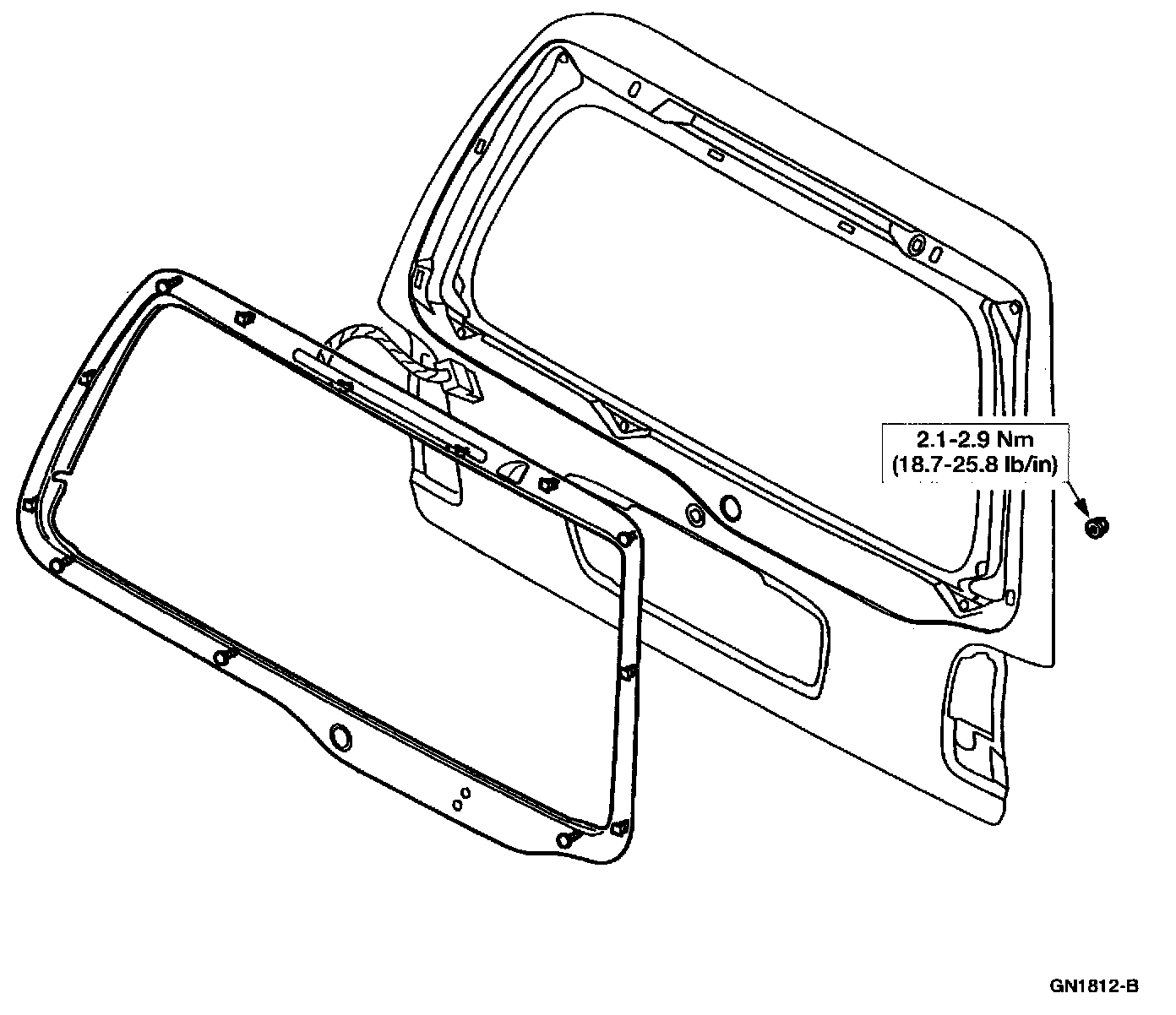

5. Remove the liftgate window glass moulding.
1 Remove the five nuts.
2 Remove the moulding.
3 Disconnect the center hi-mount stop lamp electrical connector.
4 Disconnect the washer nozzle.

INSTALLATION
















1. To install, reverse the removal procedure.

NOTE: Be careful not to pinch the washer nozzle hose during installation of the liftgate window moulding.
