Blower Motor Speed Control

REMOVAL
1. Remove the windshield wiper mounting arm and pivot shaft.







2. Remove the nut.







3. Remove the cowl top extension.
- Disconnect the wire harness connector.
- Remove the screw and remove the cowl top extension.

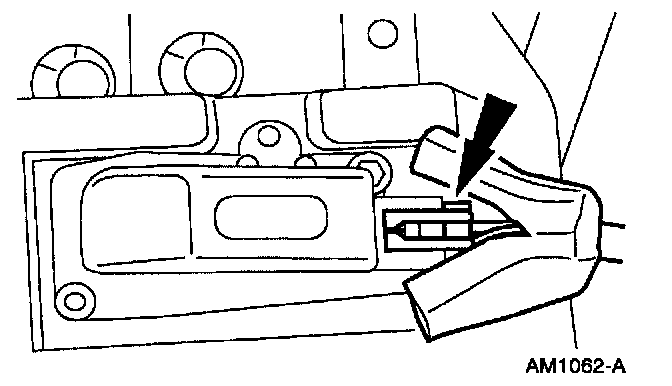

4. Disconnect the wire harness connector.

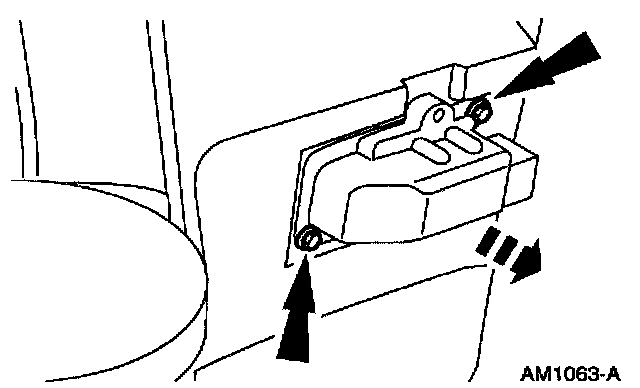

5. Remove the screws and remove the blower motor speed control.

















INSTALLATION

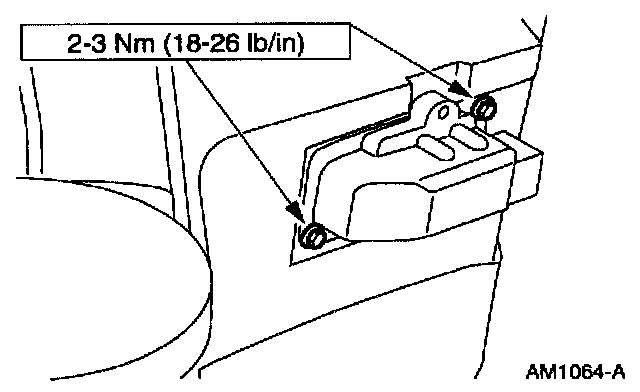

1. Follow the removal procedure in reverse order.
