Electronic Climate Control Module

REMOVAL

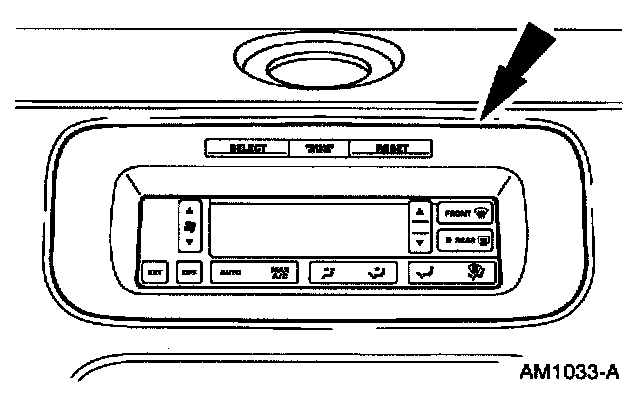

1. Remove the center instrument panel finish panel.

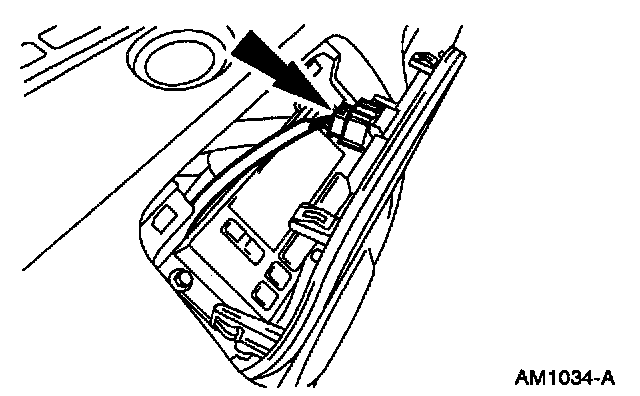

2. Disconnect the wire harness connector.

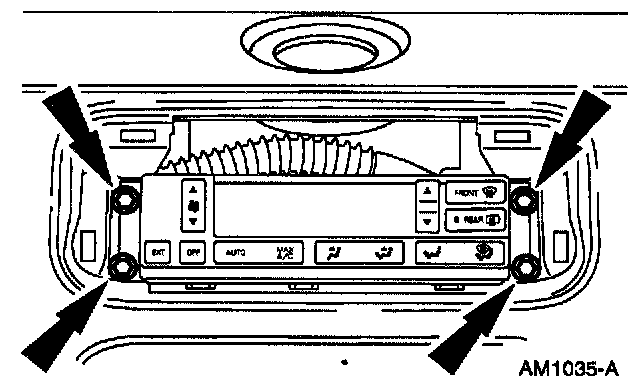

3. Remove the screws and pull the electronic automatic temperature control module from the instrument panel.







4. Remove the electronic automatic temperature control module.
- Remove the nuts and the vacuum harness.
- Disconnect the wire harness connectors and remove the electronic automatic temperature control module.







INSTALLATION

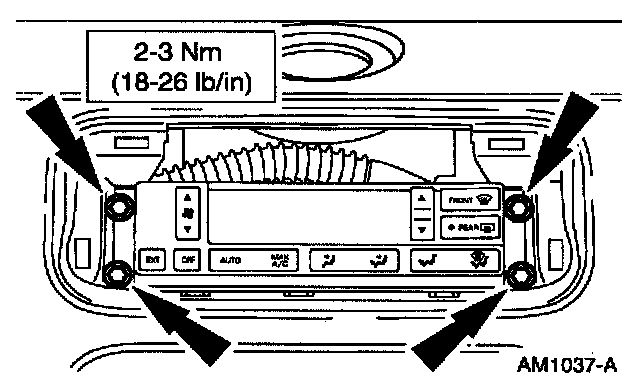

1. Follow the removal procedure in reverse order.
