Engine Views

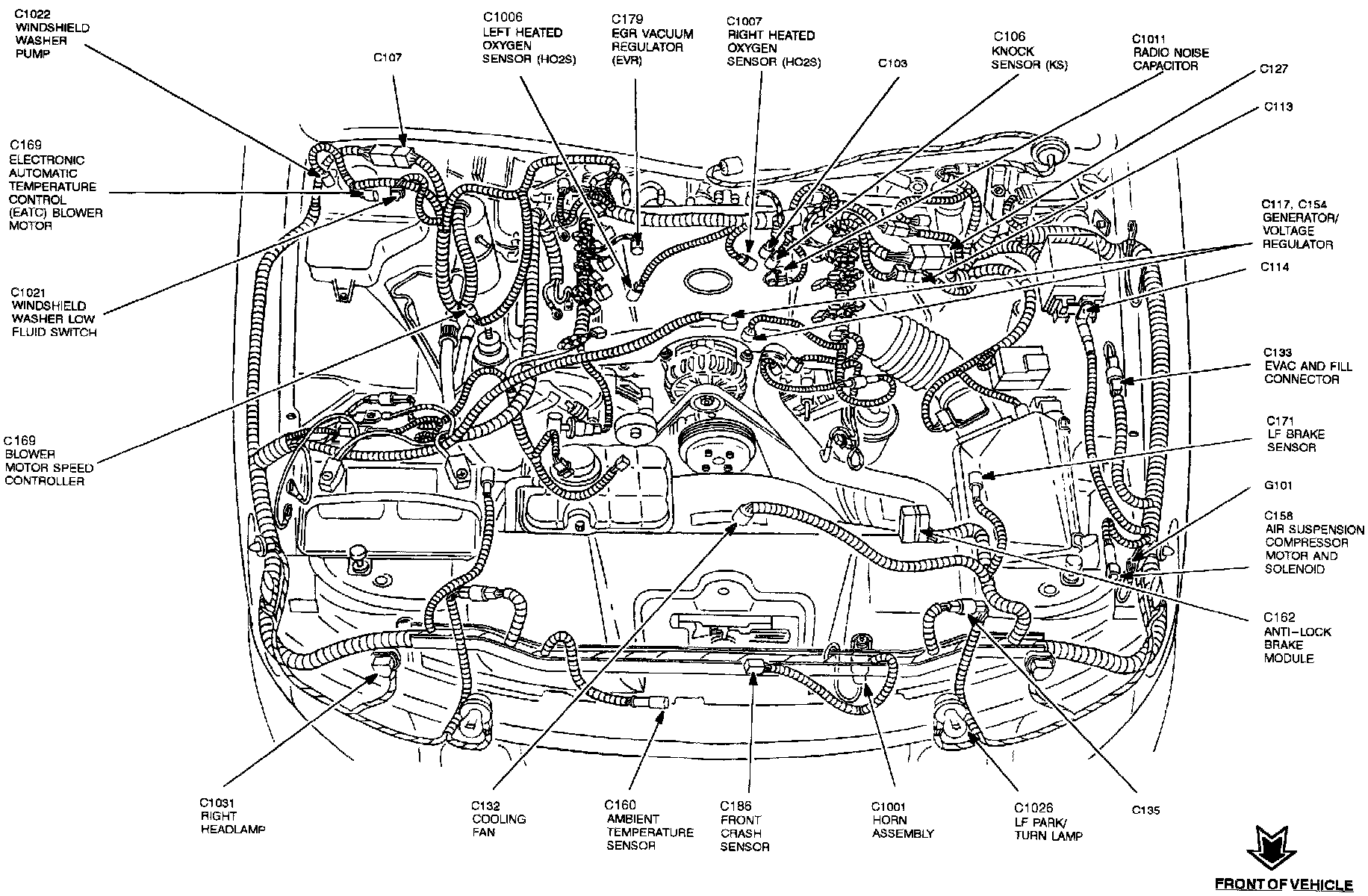

Engine View:

AIR SUSPENSION COMPRESSOR MOTOR AND SOLENOID
AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE MODULE
BLOWER MOTOR SPEED CONTROLLER
COOLING FAN
EGR VACUUM REGULATOR
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL BLOWER MOTOR
EVACUATE AND FILL CONNECTOR
FRONT CRASH SENSOR
GENERATOR/VOLTAGE REGULATOR
HORN ASSEMBLY
KNOCK SENSOR
LEFT FRONT BRAKE SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT HEATED OXYGEN SENSOR
RADIO NOISE CAPACITOR
RIGHT HEADLAMP
RIGHT HEATED OXYGEN SENSOR
WINDSHIELD WASHER LOW FLUID SWITCH
WINDSHIELD WASHER PUMP

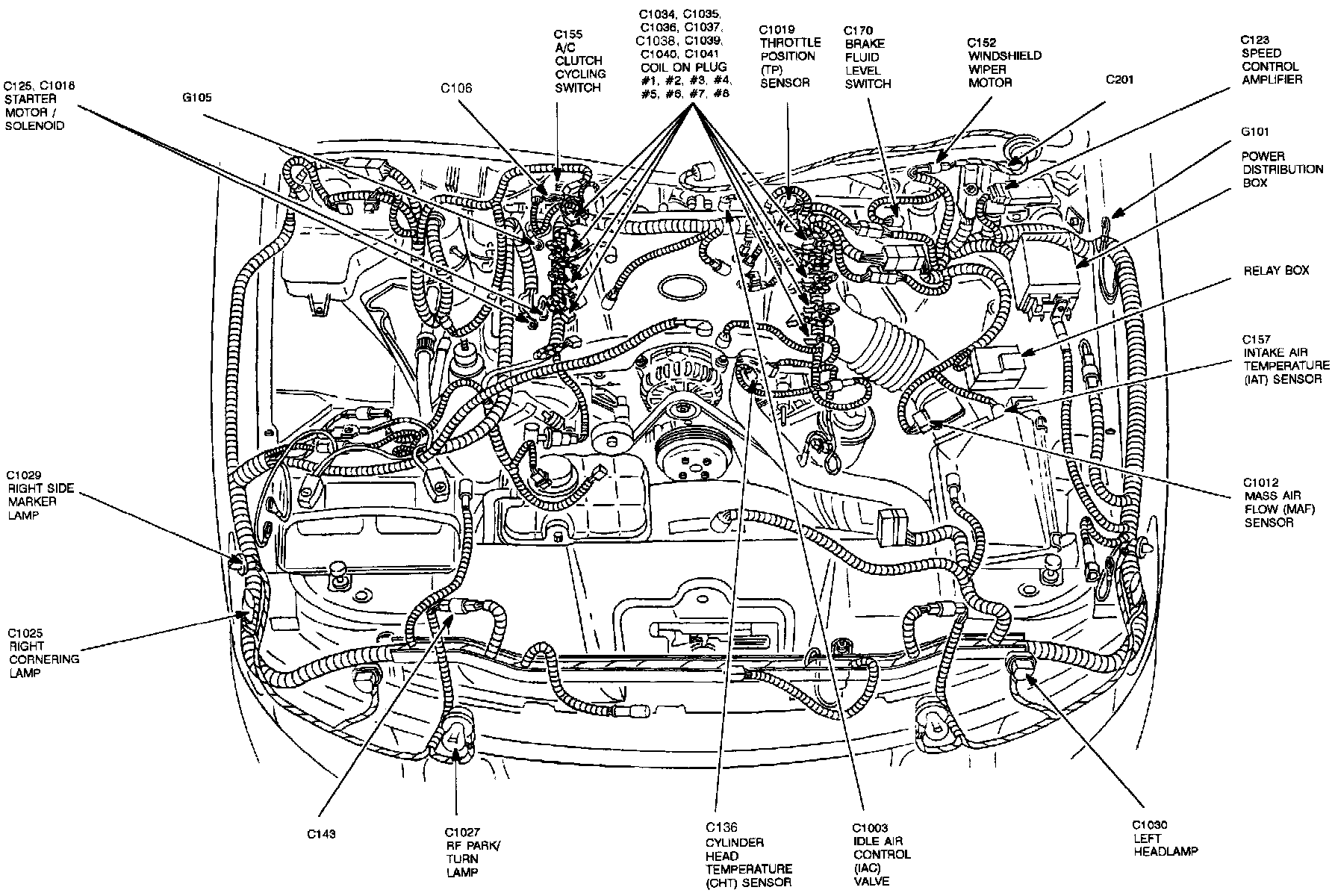

Engine View:

A/C CLUTCH CYCLING SWITCH
BRAKE FLUID LEVEL SWITCH
COIL ON PLUG
CYLINDER HEAD TEMPERATURE SENSOR
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
LEFT HEADLAMP
MASS AIR FLOW SENSOR
POWER DISTRIBUTION BOX
RELAY BOX
RIGHT CORNERING LAMP
RIGHT SIDE MARKER LAMP
RIGHT FRONT PARK/TURN LAMP
SPEED CONTROL AMPLIFIER
STARTER/MOTOR SOLENOID
THROTTLE POSITION SENSOR
WINDSHIELD WIPER MOTOR

Engine View:

A/C COMPRESSOR CLUTCH COIL
A/C HIGH PRESSURE CUTOFF SWITCH
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
ELECTRONIC VARIABLE ORIFICE ACTUATOR
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSION VAPOR MANAGEMENT VALVE
FUEL INJECTORS
JUNCTION POINT
LEFT CORNERING LAMP
LEFT SIDE MARKER LAMP
POWERTRAIN CONTROL MODULE
RIGHT FRONT BRAKE SENSOR
