Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

CAUTION: Always disconnect the battery ground cable prior to work on the electronic engine controls or damage to the electronic component may occur.

1. Disconnect the battery ground cable.

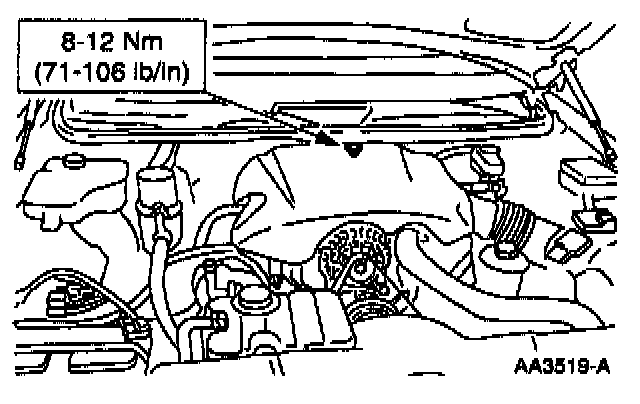

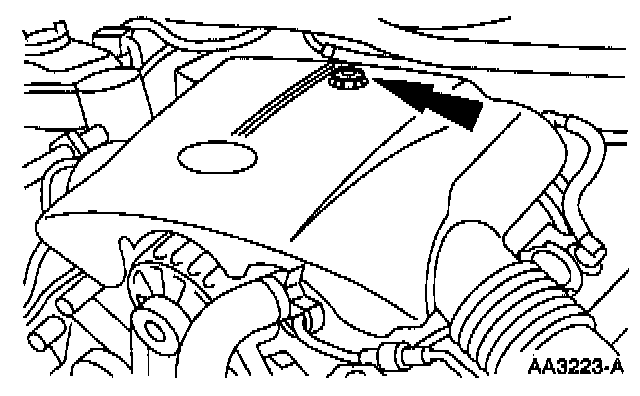

2. Remove the engine appearance cover.

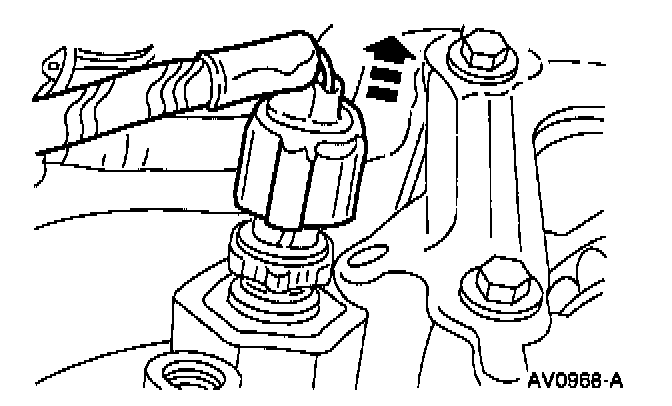

3. Disconnect the Engine Coolant Temperature (ECT) sensor.

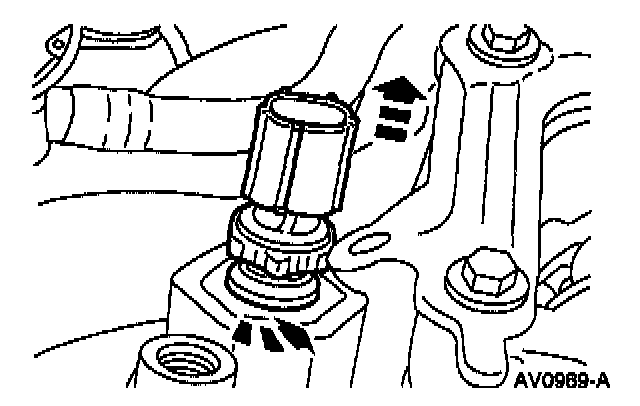

4. Remove the engine coolant temperature sensor.

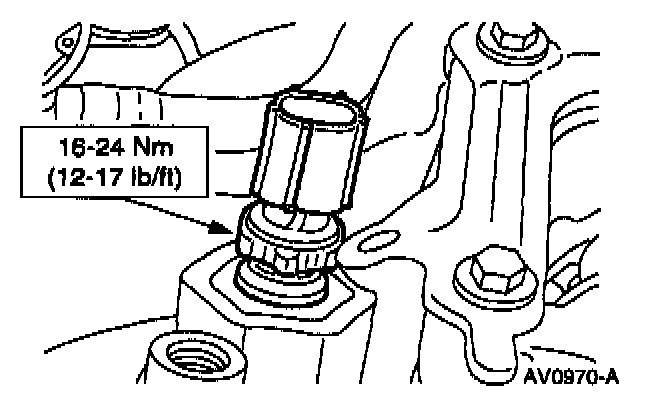

INSTALLATION
1. Follow the removal procedure in reverse order.
