Ignition Coil: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.

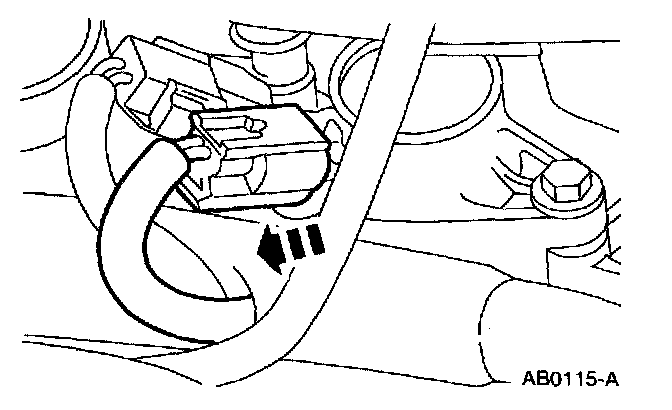

2. Disconnect the connector from the ignition coil.

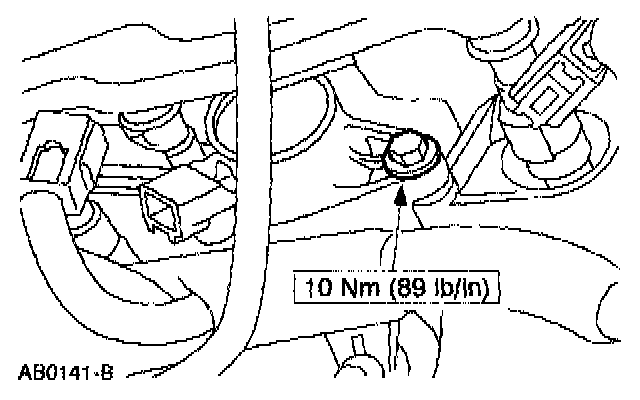

3. Remove the bolt from the ignition coil.

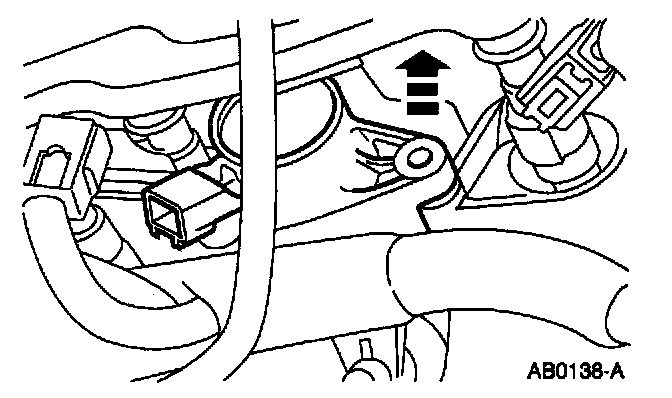

4. Remove the ignition coil.







INSTALLATION
1. Follow the removal procedure in reverse order.
