Home >> Lincoln >> 1999 >> Continental V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

Axle Shaft

1 Of 2:

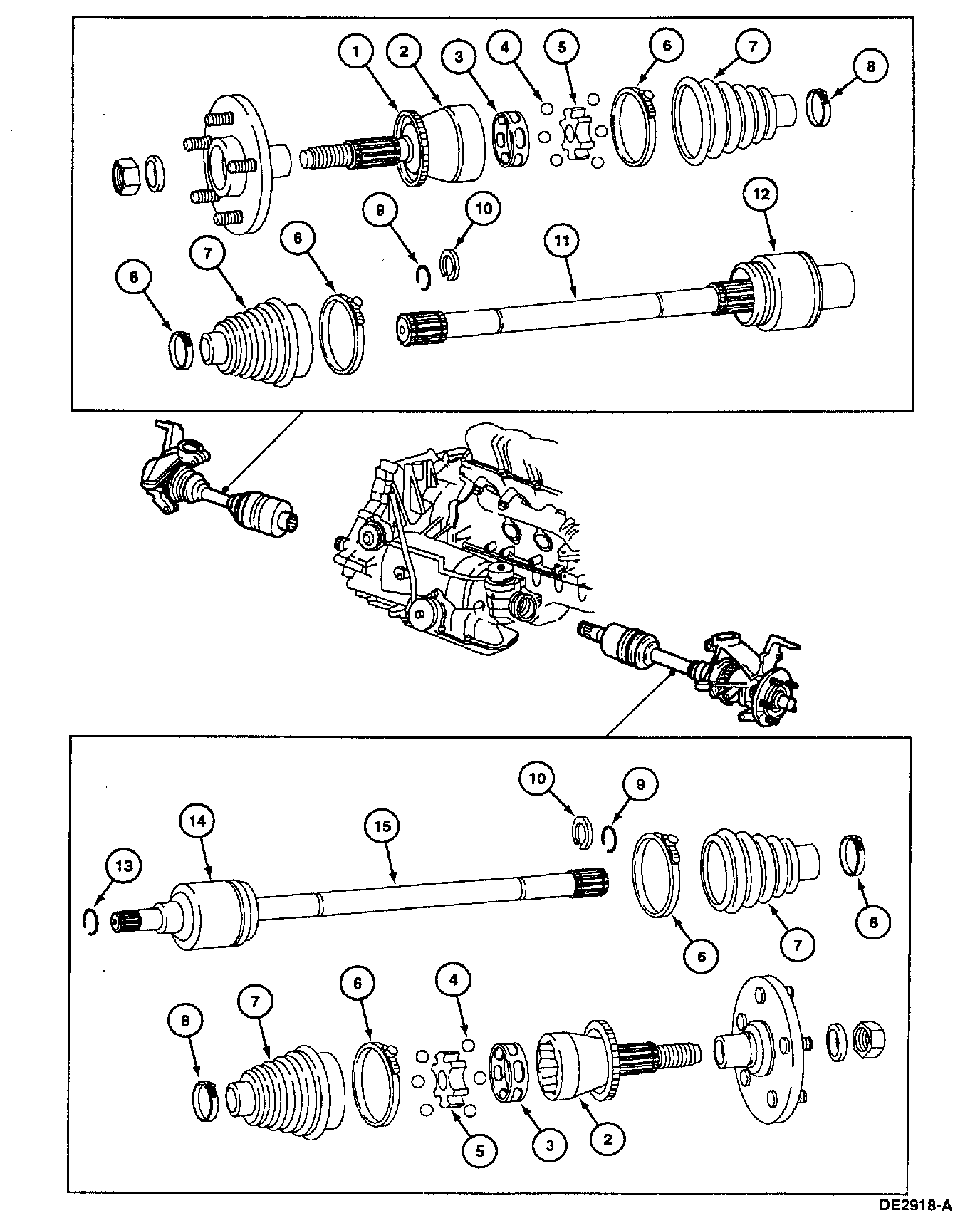

Front Drive Halfshafts
