J: Powertrain Control Module No Response To NGS Tester

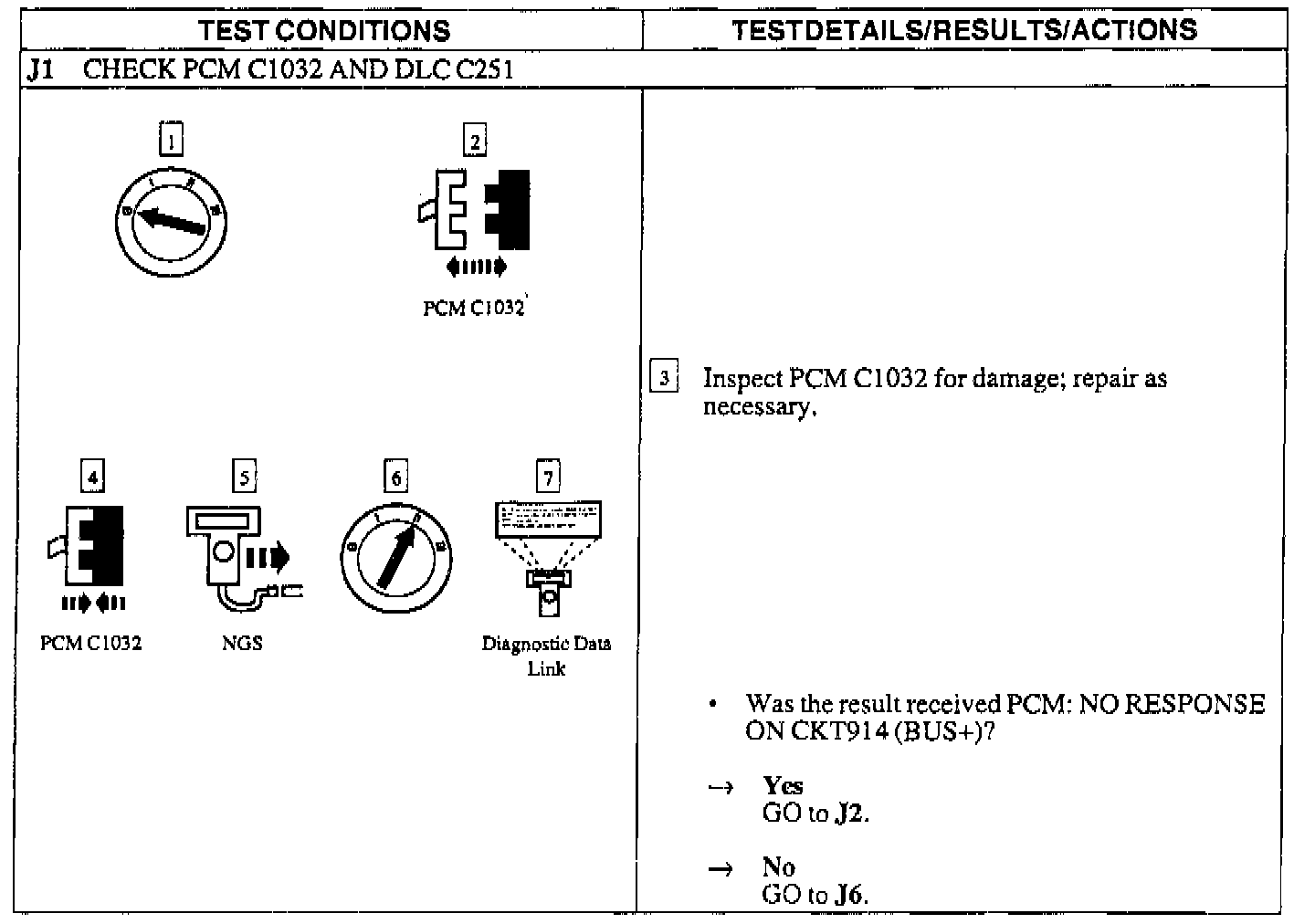

J1:






J2 - J3:

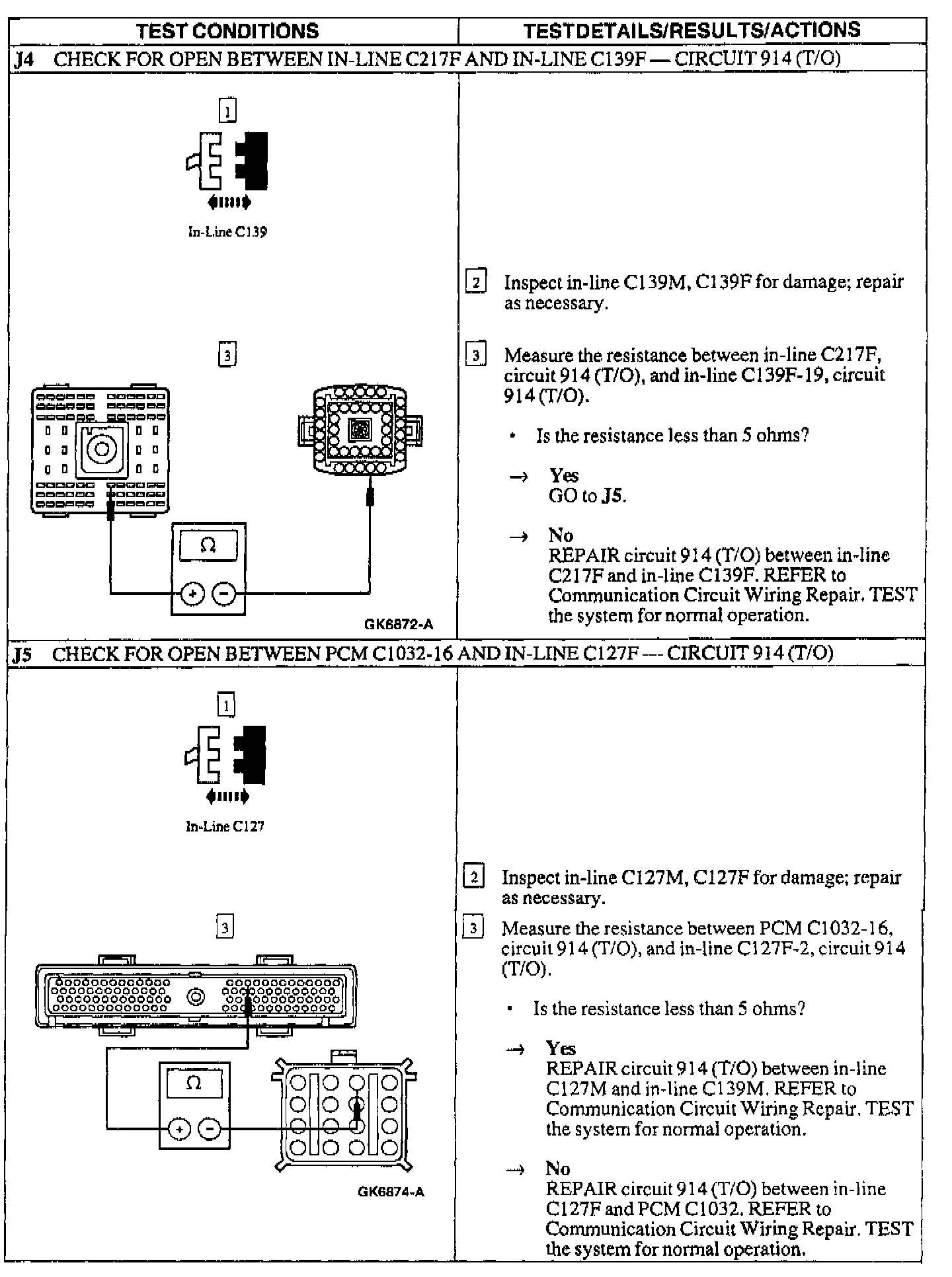

J4 - J5:

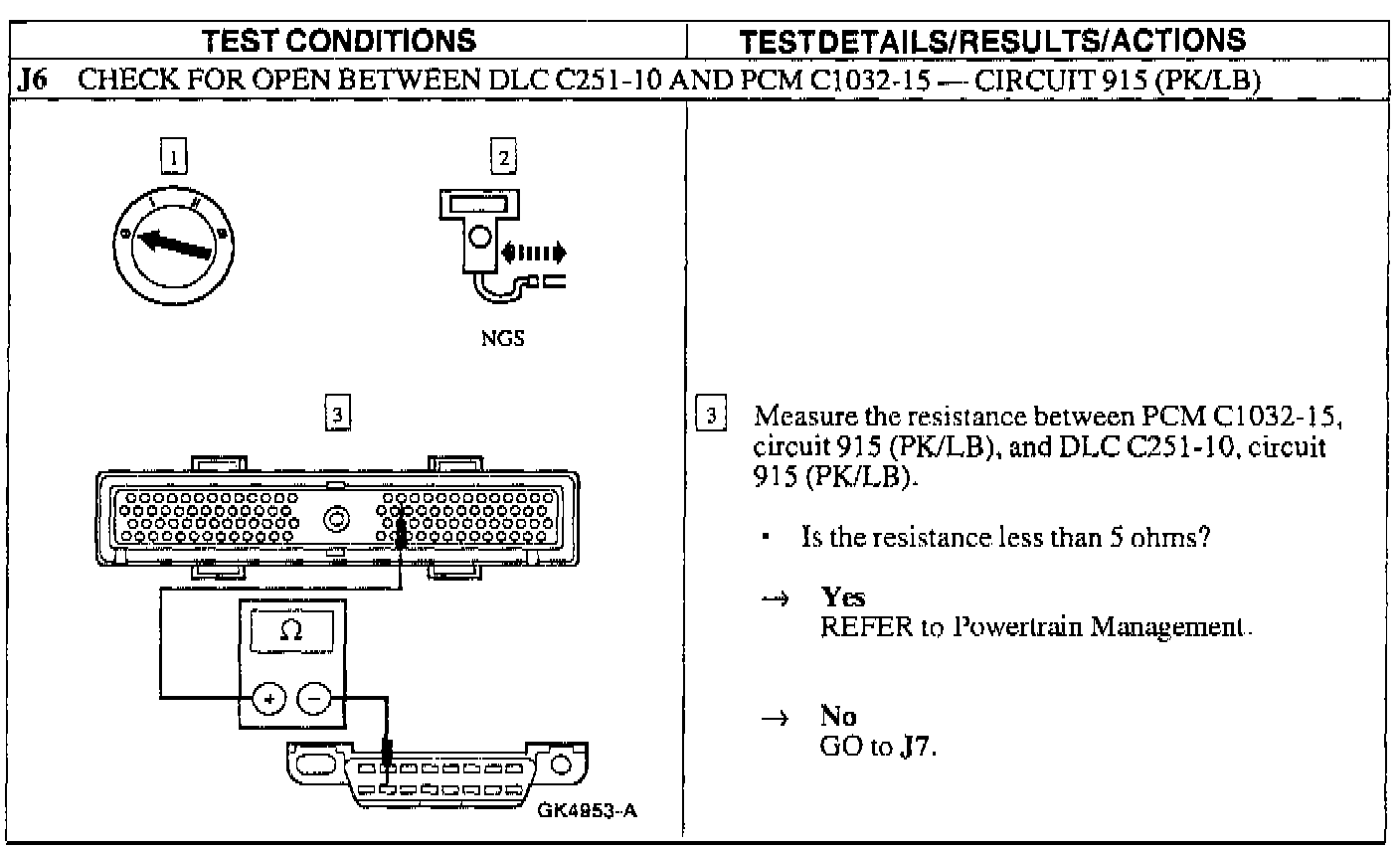

J6:

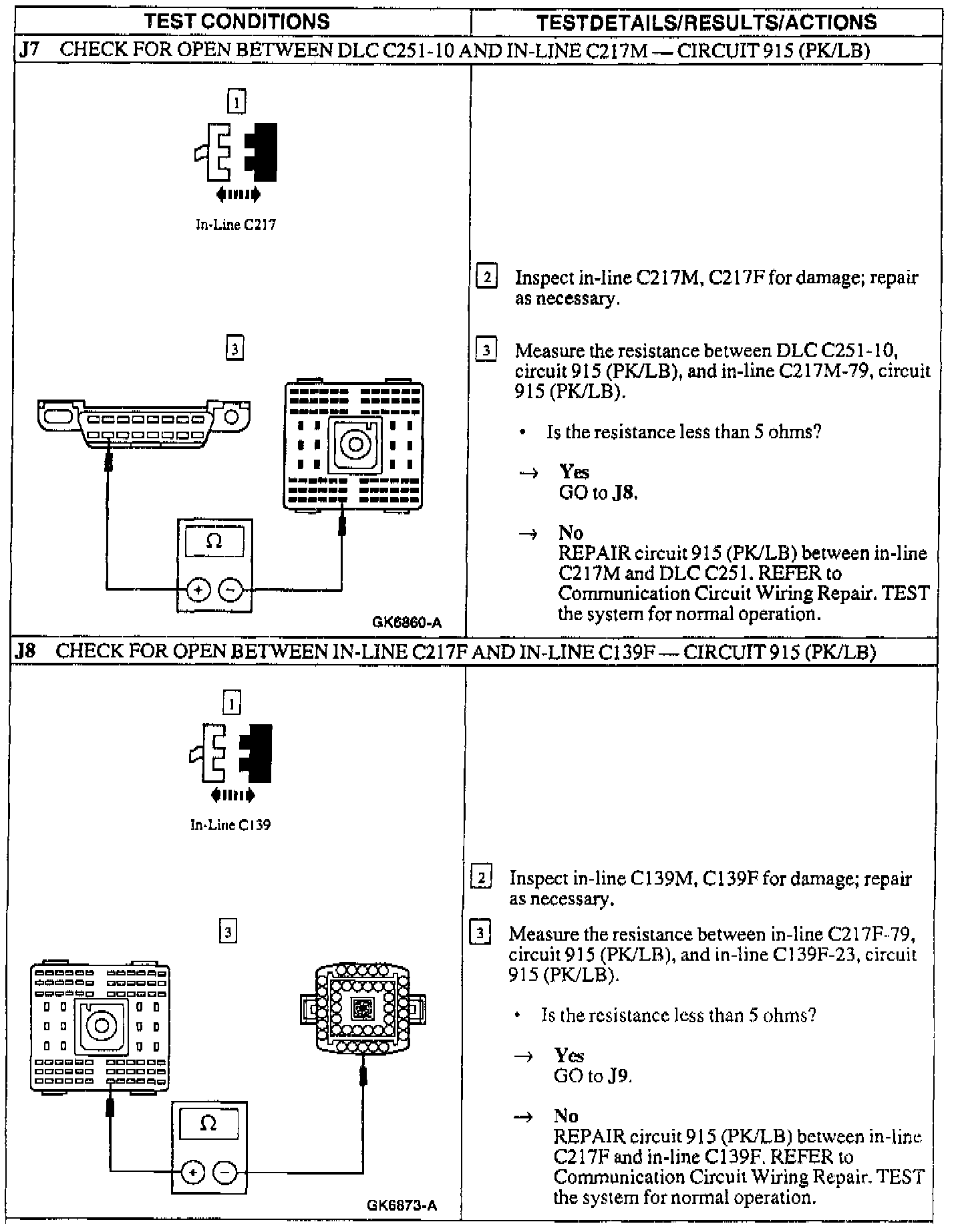

J7 - J8:






J9:
