K: The Module Does Not Respond to The NGS Tester - RESCU Module

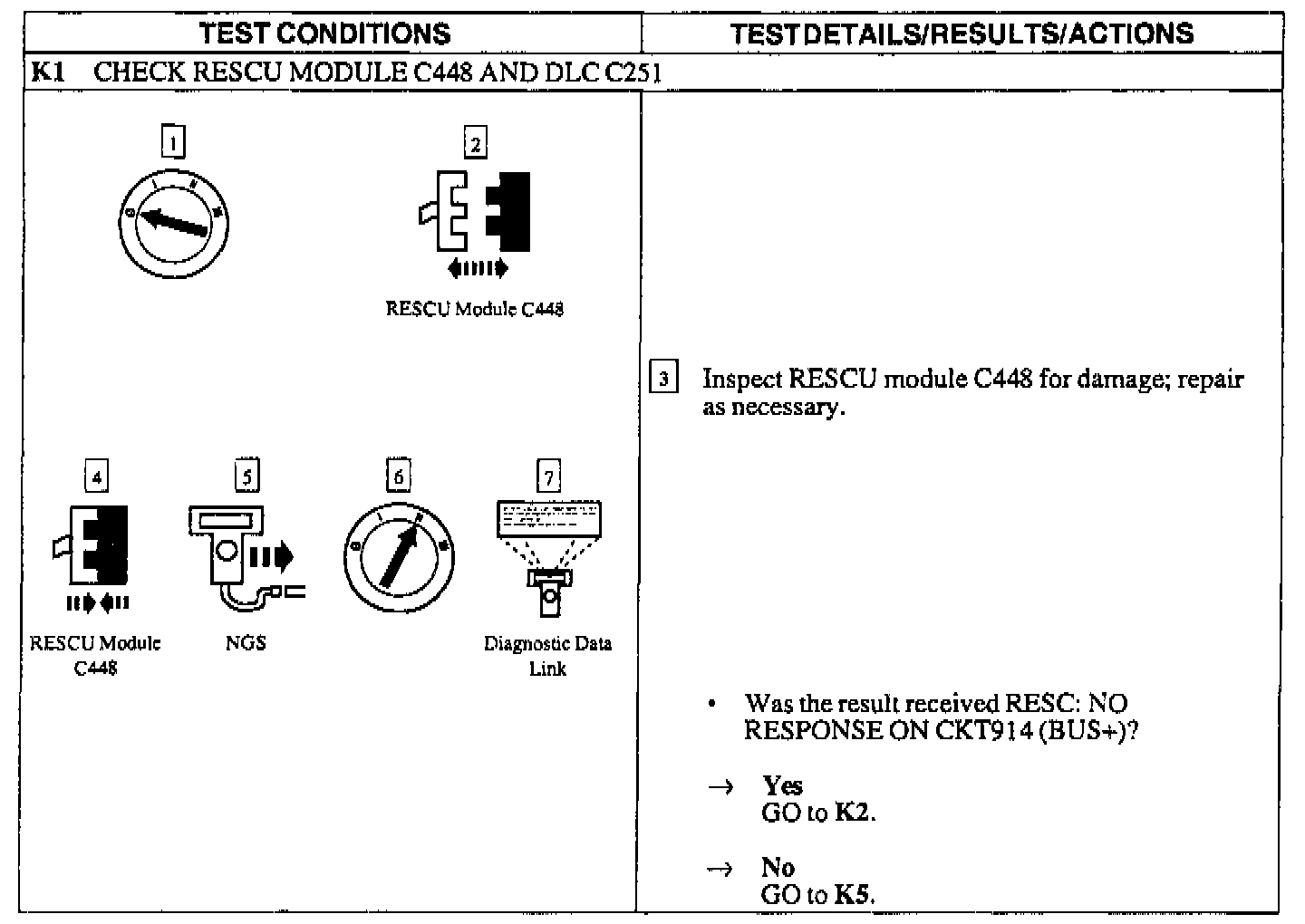

K1:

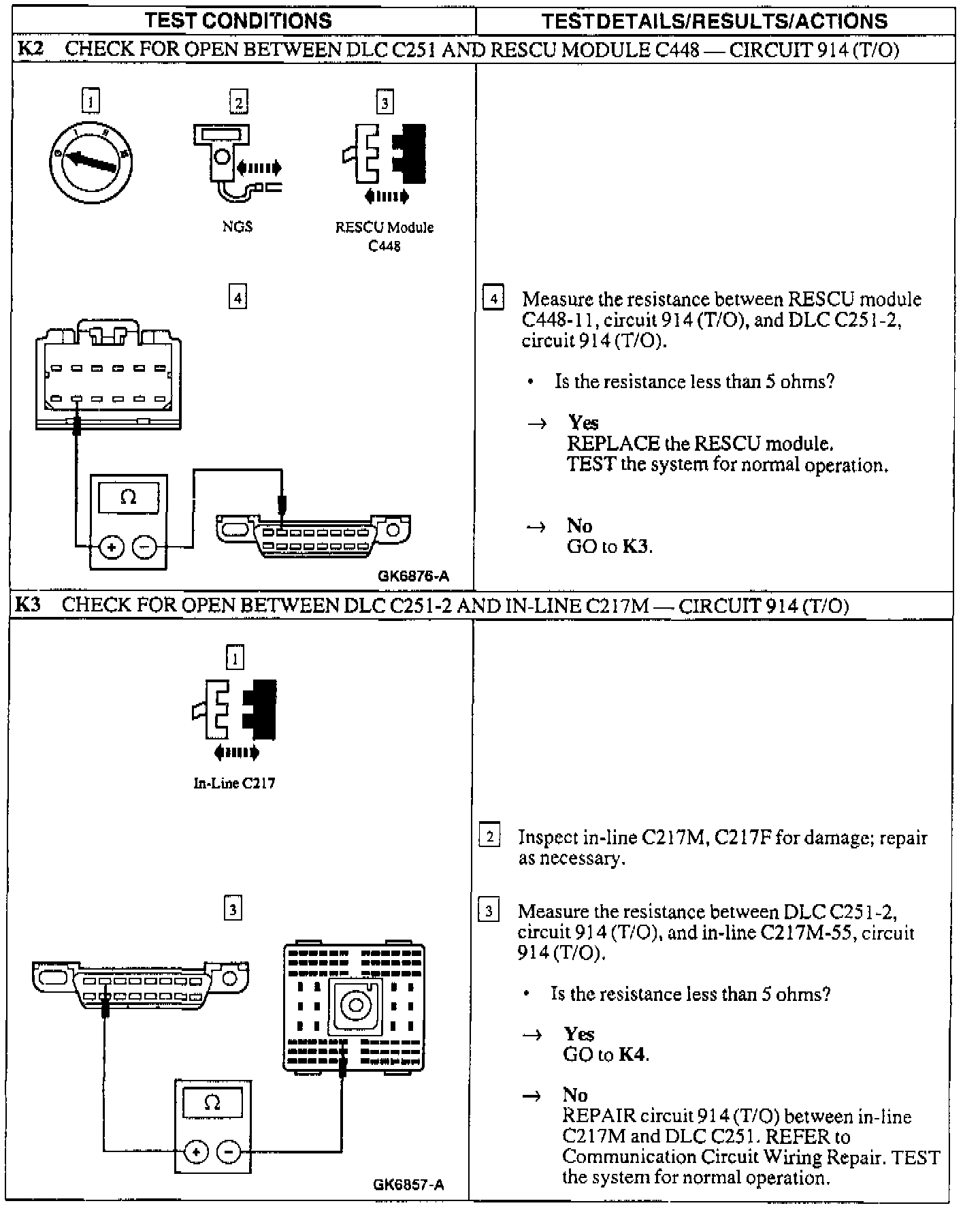

K2 - K3:

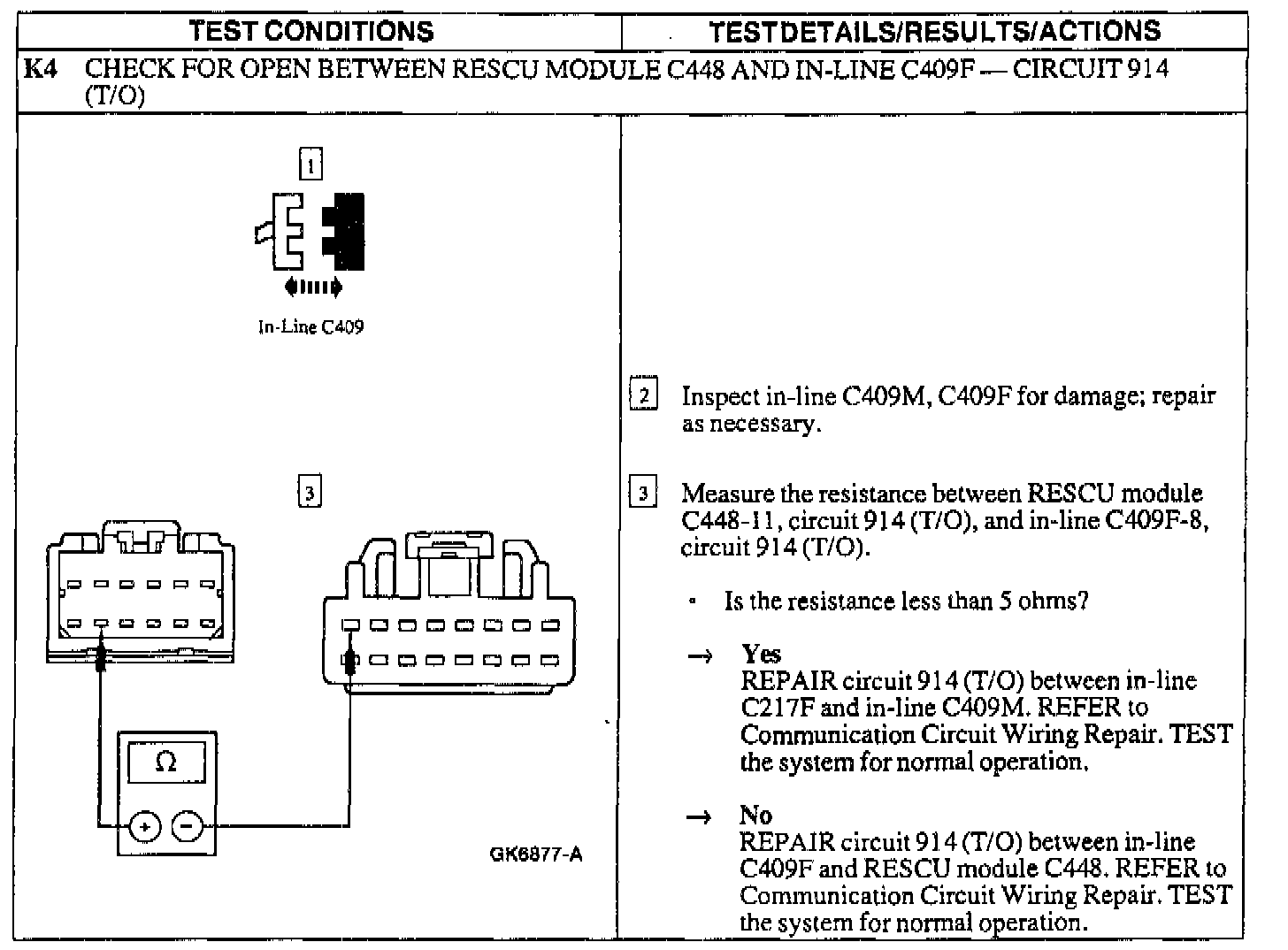

K4:






K5 - K6:






K7:
