Power Steering Pressure Switch: Service and Repair

REMOVAL
1. Lower rack and pinion assembly.

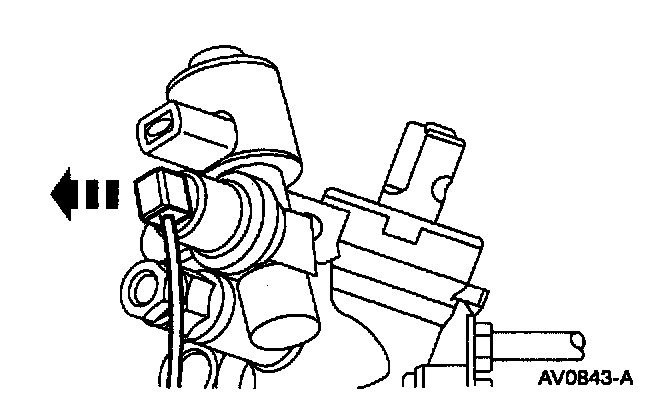

2. Disconnect the electrical connector from the Power Steering Pressure (PSP) switch.

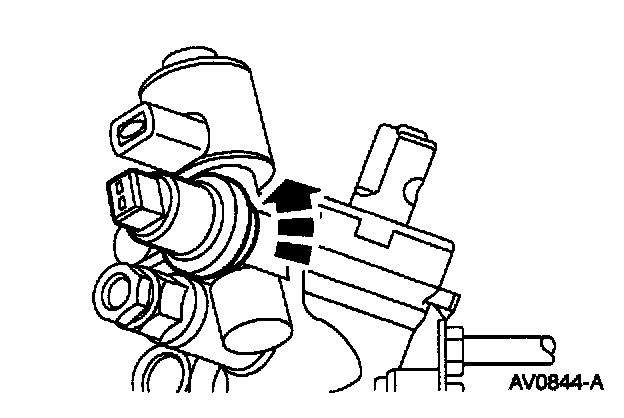

3. Remove power steering pressure switch.

INSTALLATION

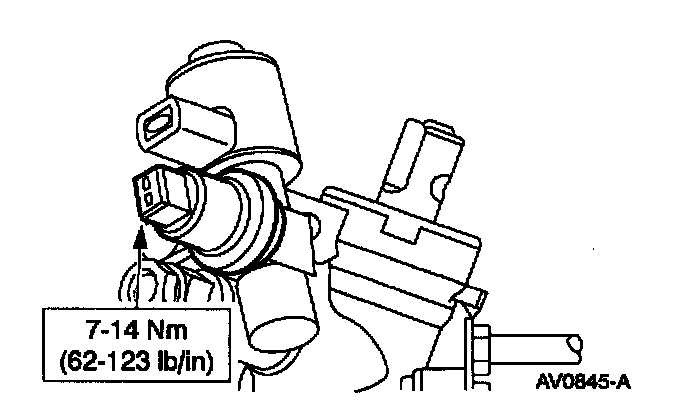

1. To install, reverse the removal procedure.

NOTE: Install a new O-ring on power steering switch.
