Keyless Entry Key-Pad: Service and Repair

REMOVAL
1. Remove the driver door trim panel.

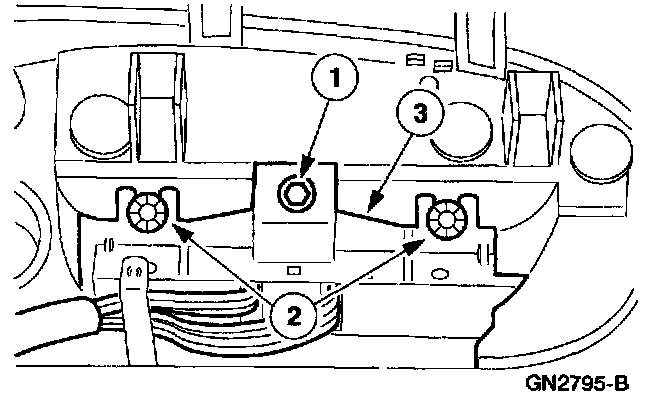

2. Remove the keyless entry keypad.
1. Remove the screw.
2. Remove the speed ruts.
3. Remove the keyless entry keypad.
^ Disconnect the electrical connector.


INSTALLATION
1. To install, reverse the removal procedure.
