Heated Seat Module

REMOVAL
1. Remove the power seat track.







2. Disconnect the electrical connectors.

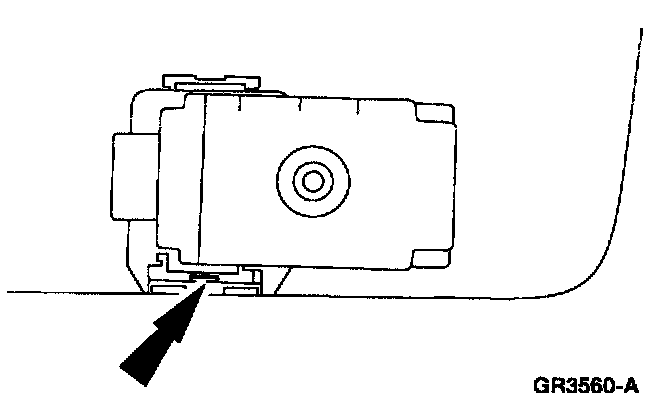

3. Remove the heated seat module.
^ Release the clip.

INSTALLATION
1. To install, reverse the removal procedure.
