G: Memory Seat Inop-Inop Using Memory Set Switch

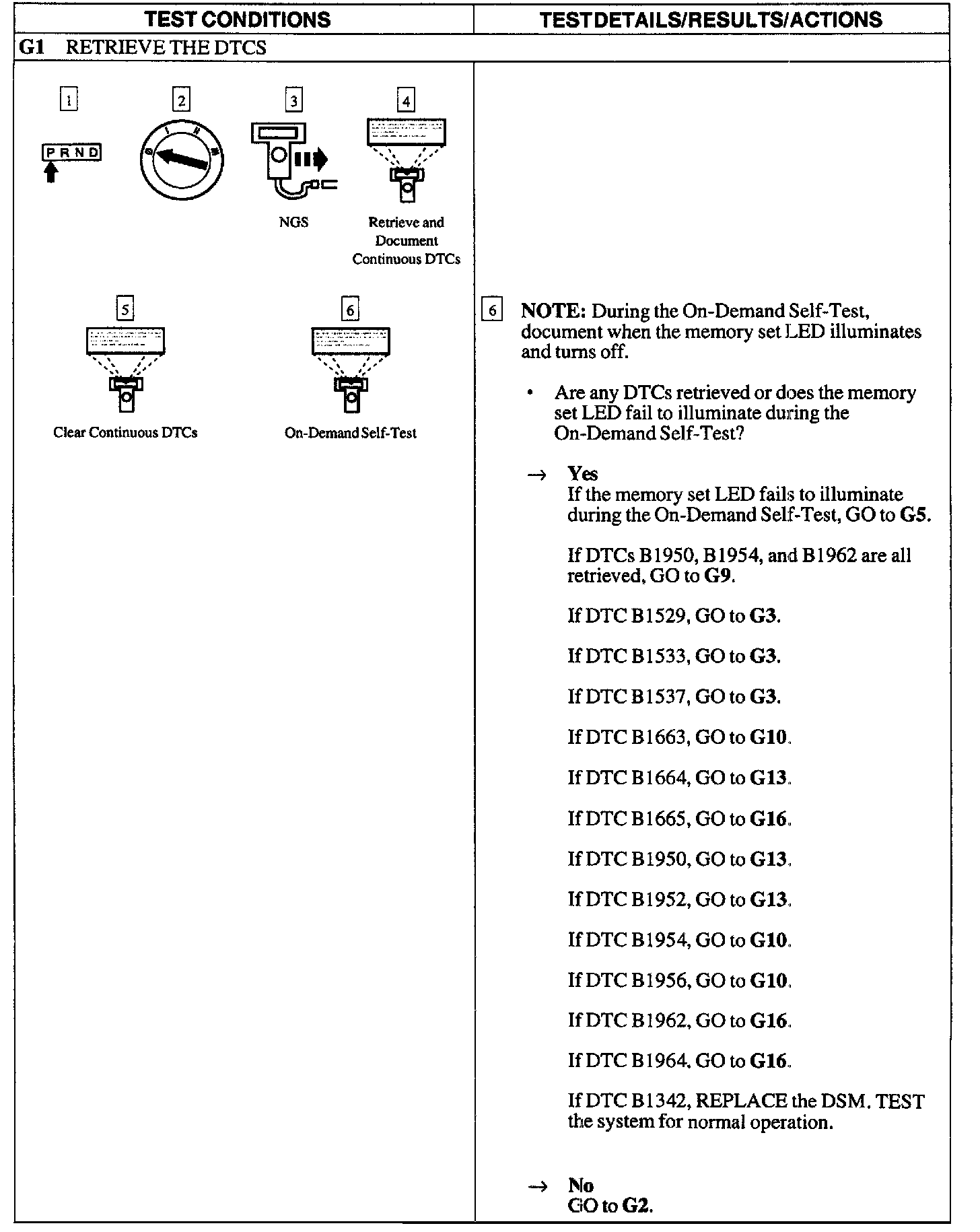

G1:

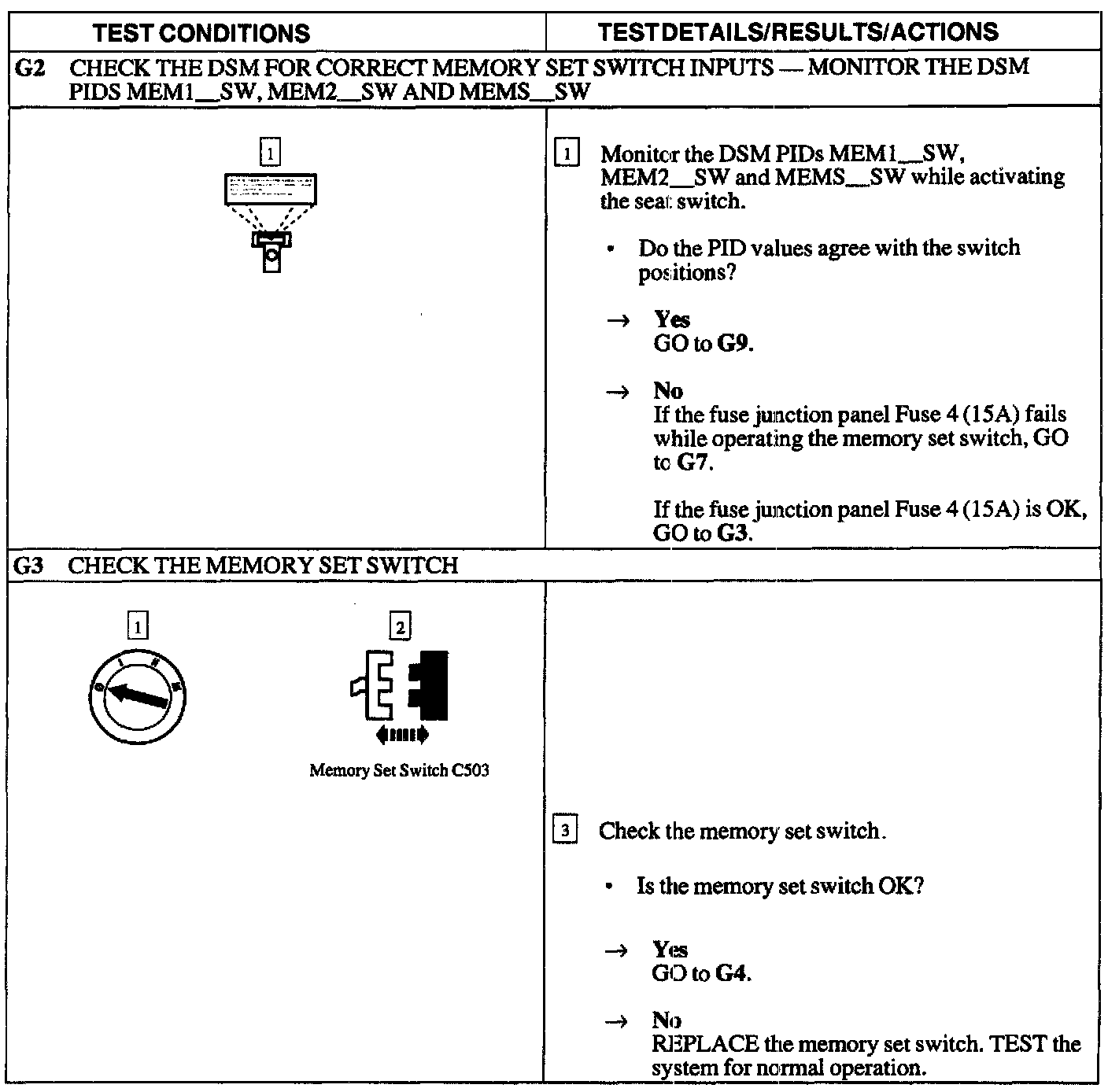

G2 - G3:

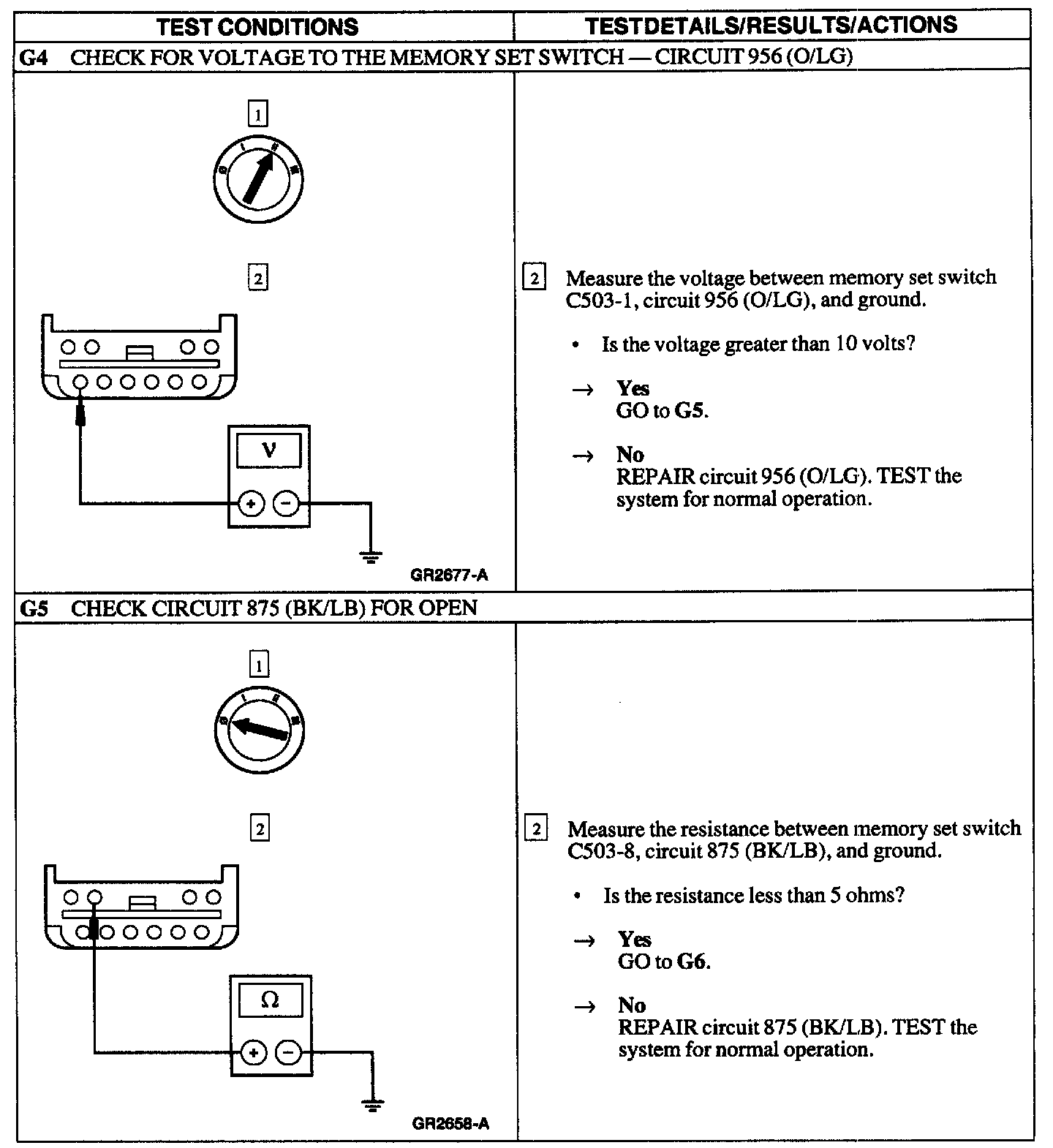

G4 - G5:

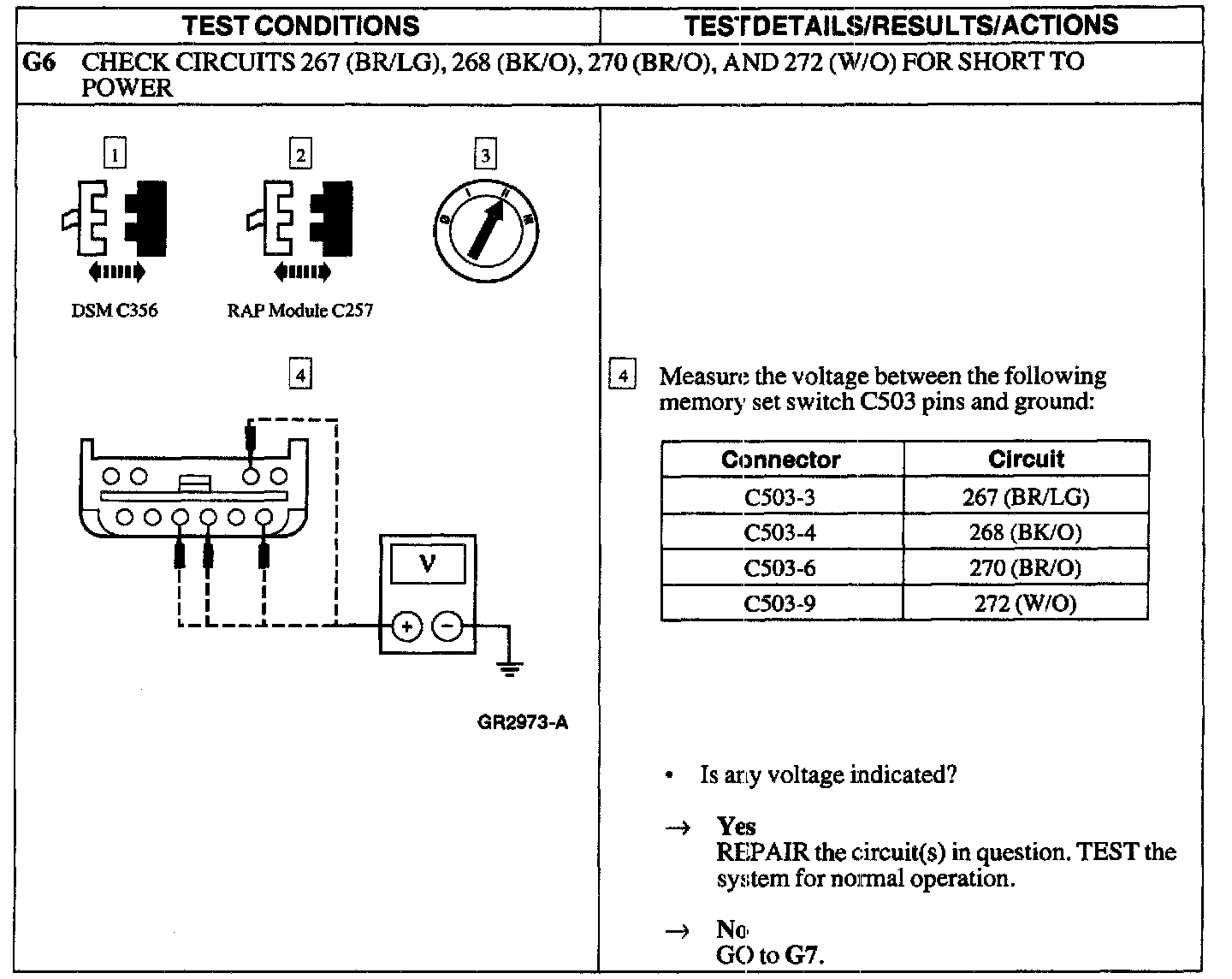

G6:

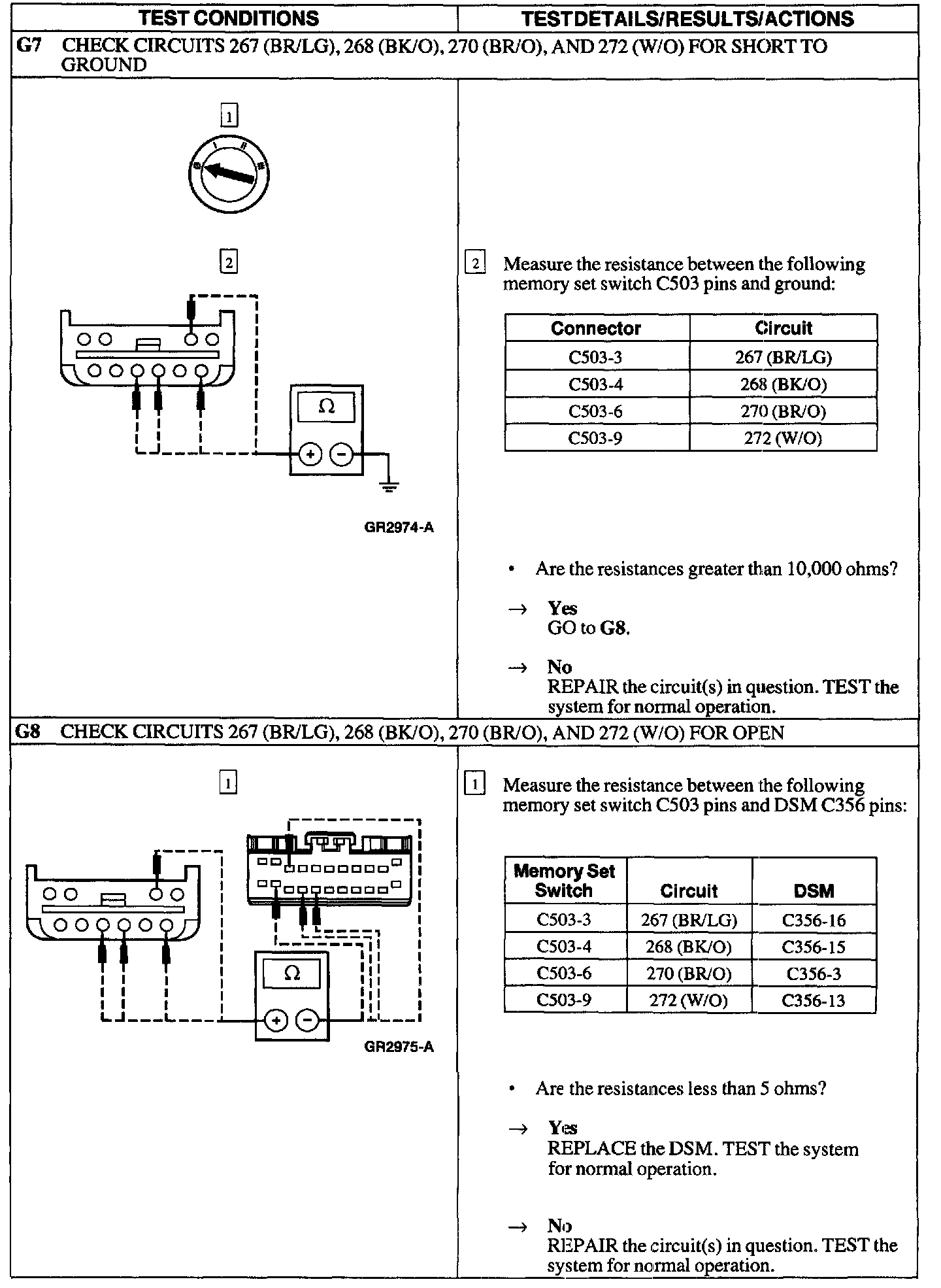

G7 - G8:

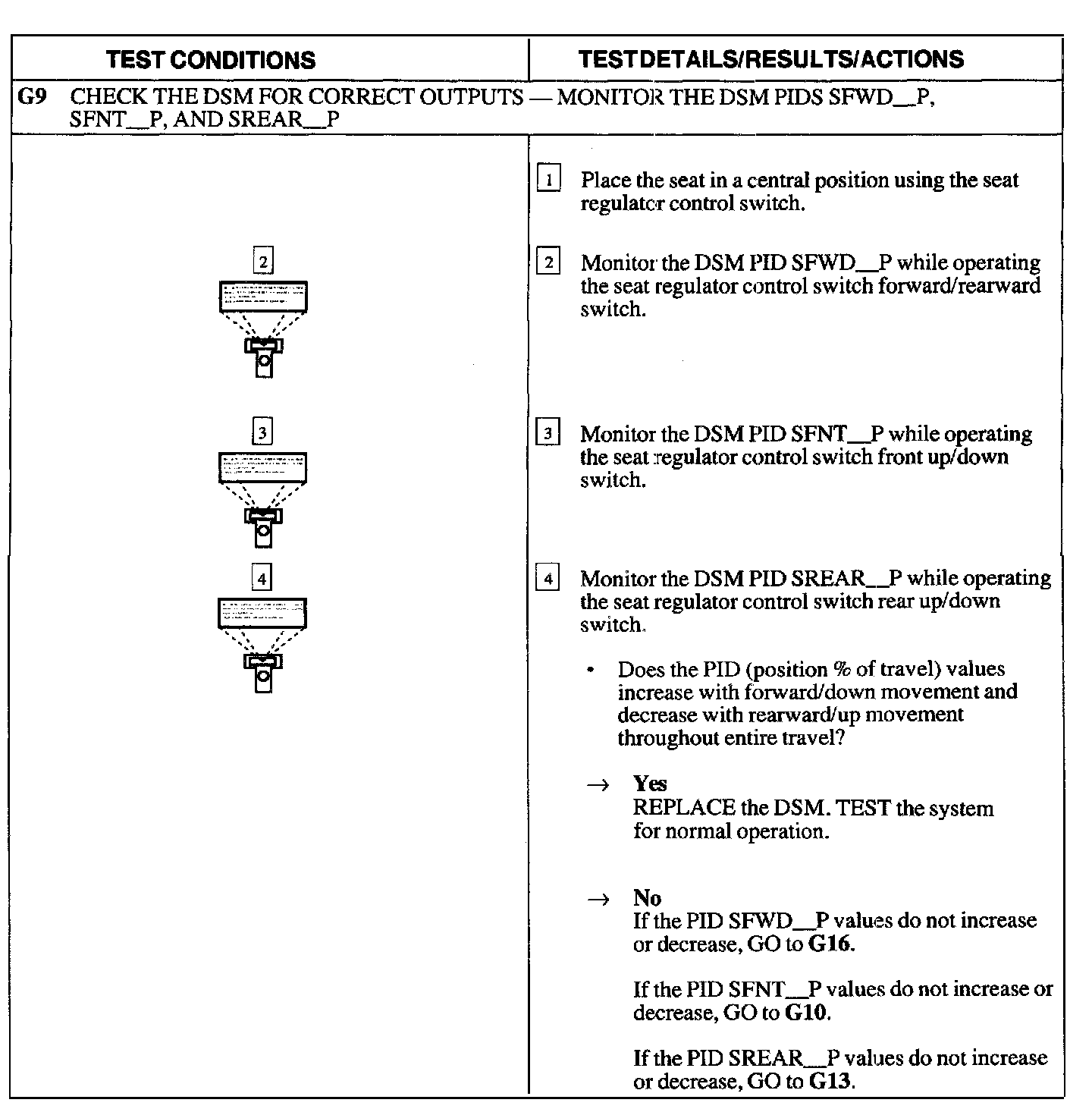

G9:

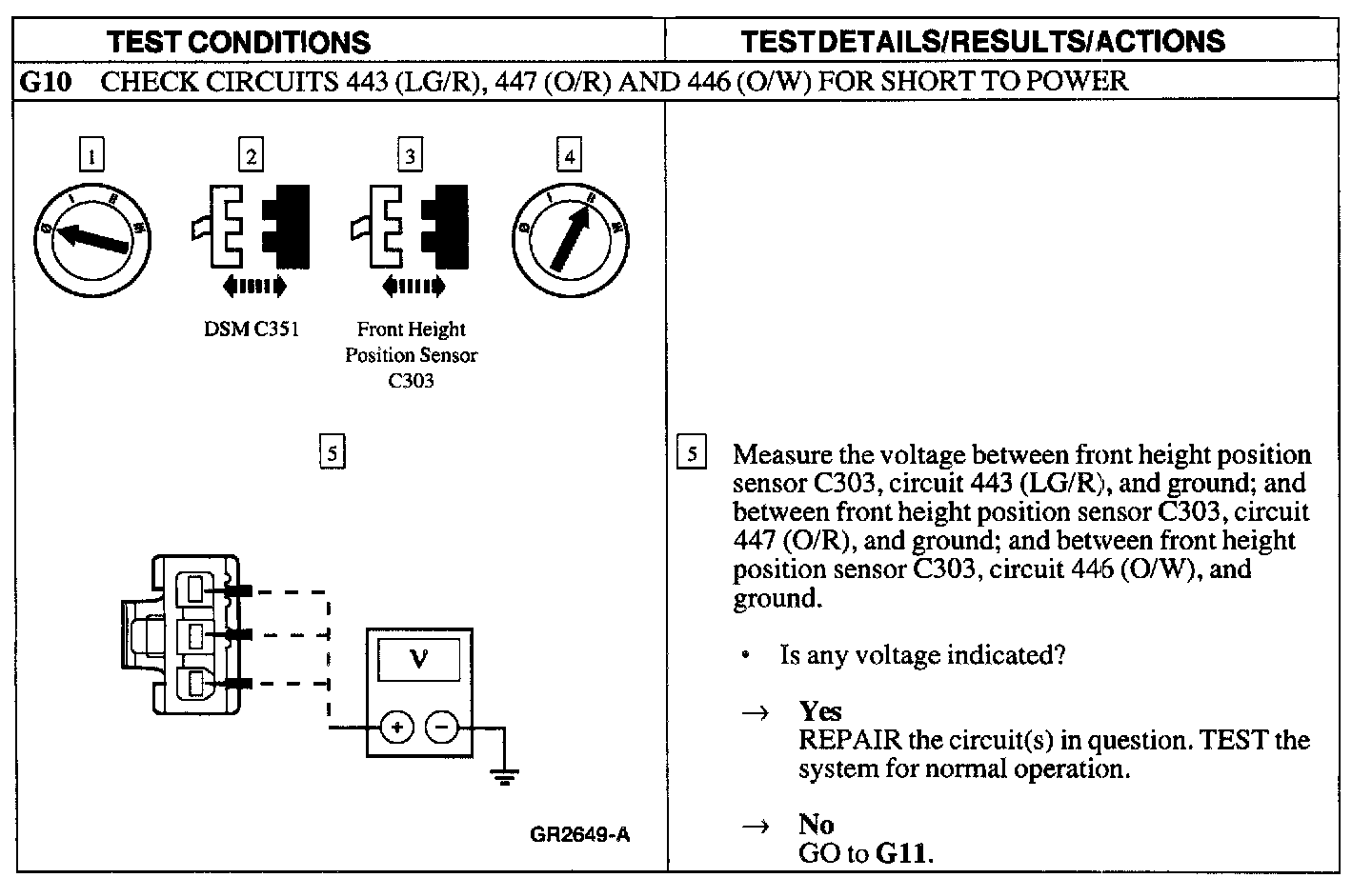

G10:

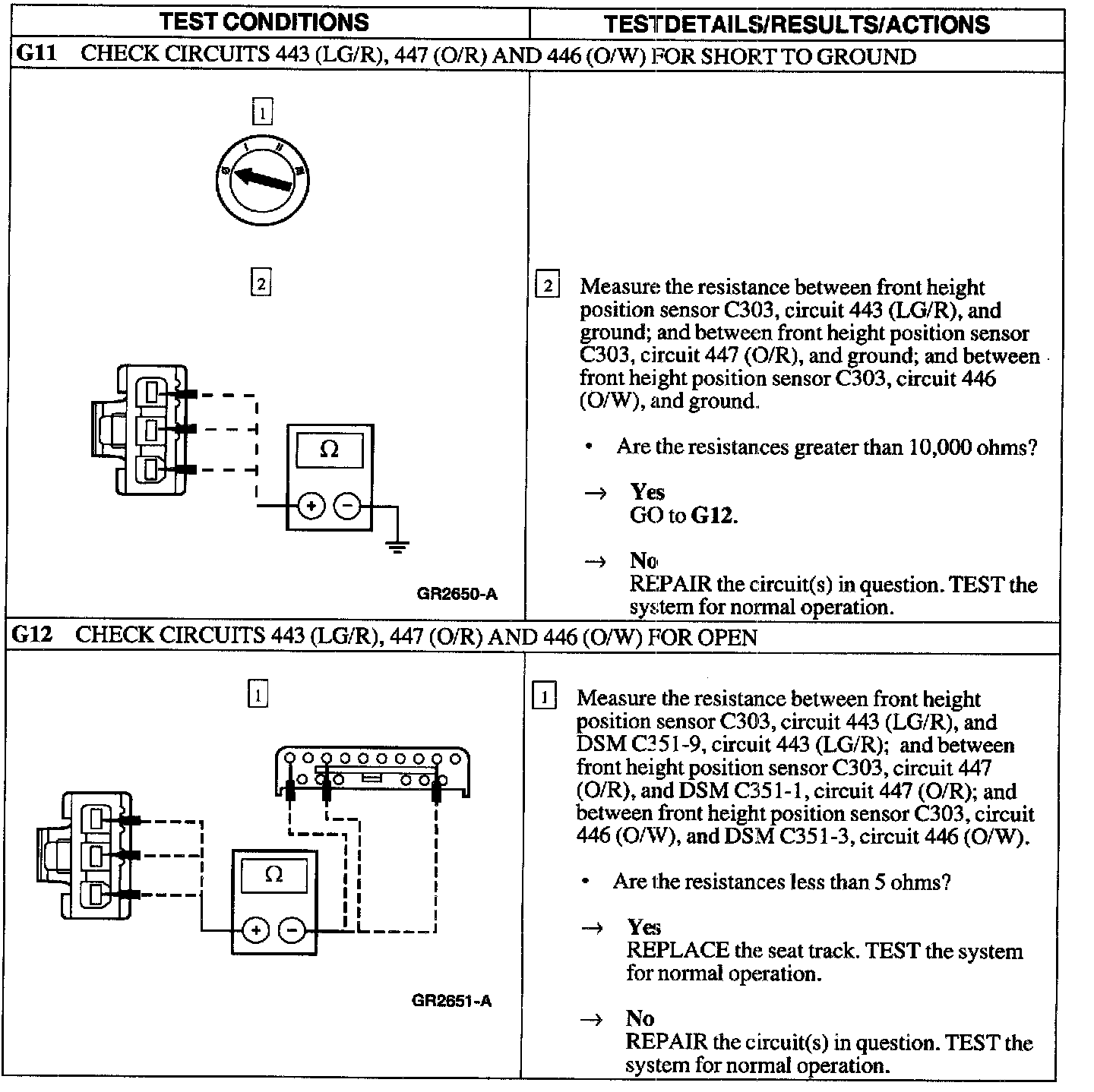

G11 - G12:

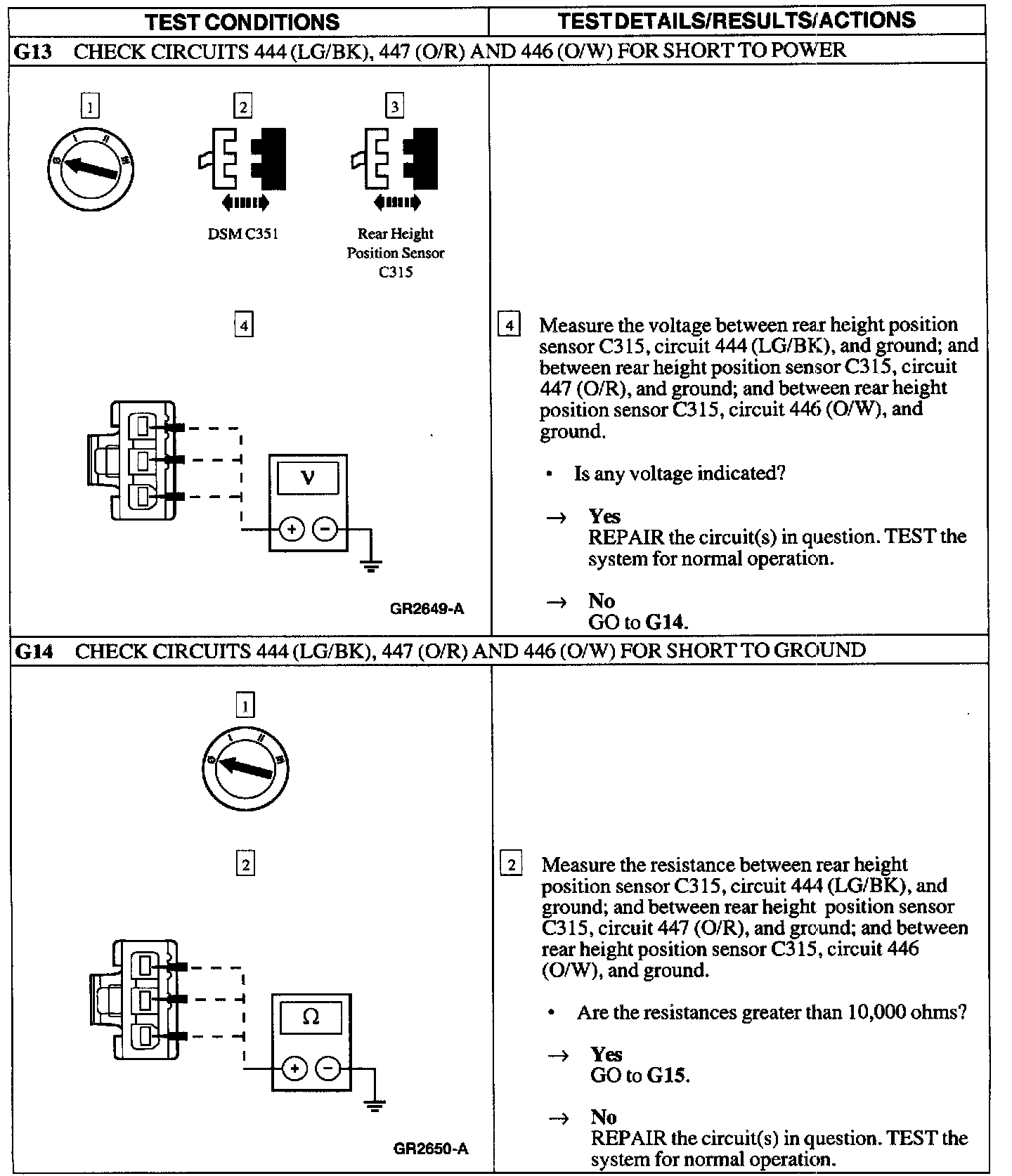

G13 - G14:

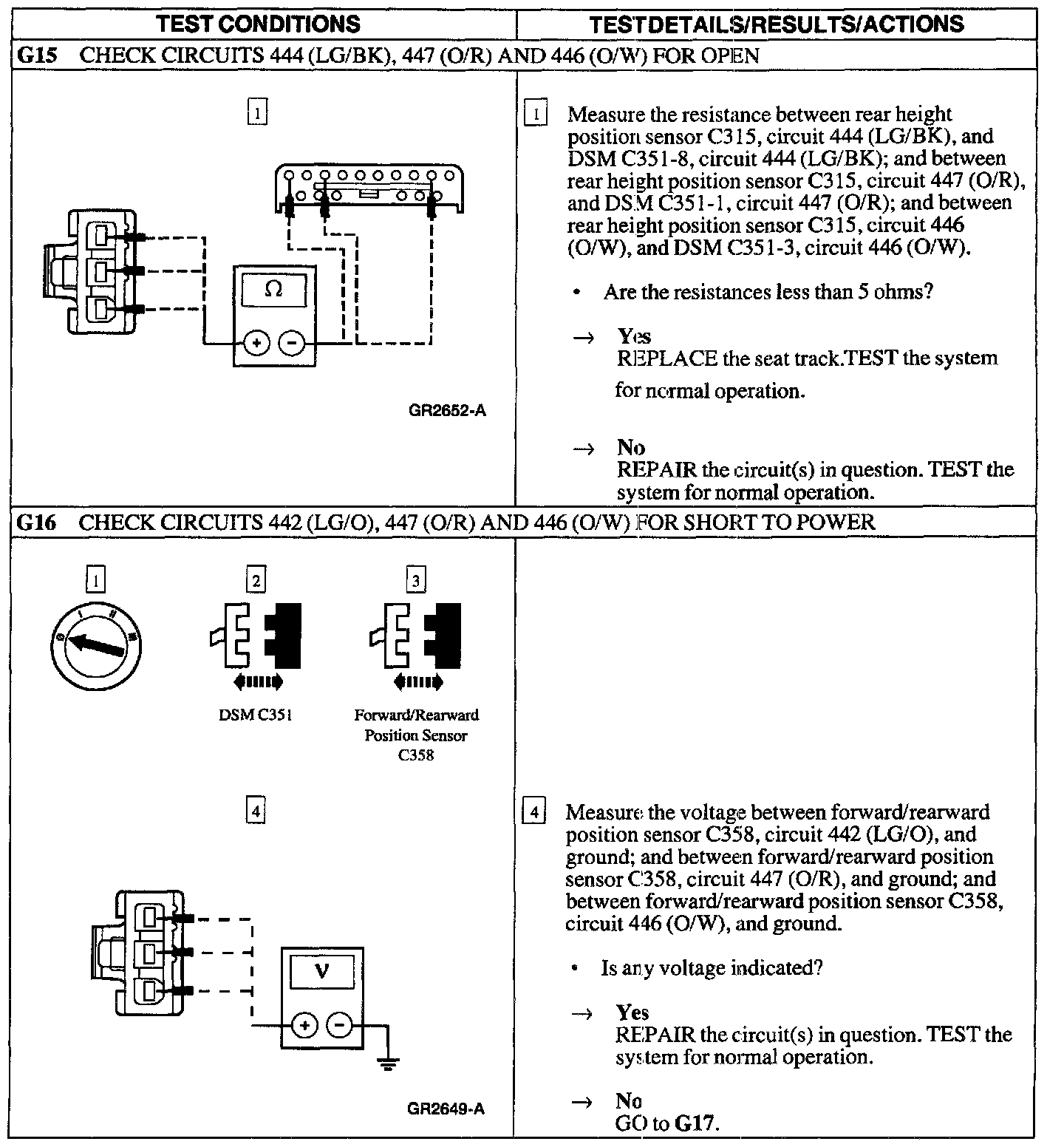

G15 - G16:






G17 - G18:
