Cruise Control Servo Cable: Service and Repair

REMOVAL

NOTE: 5.4L 2 Valve Triton V8 shown; others are similar.







1. Remove the accelerator control splash shield.
1 Remove the screws.
2 Remove the accelerator control splash shield.

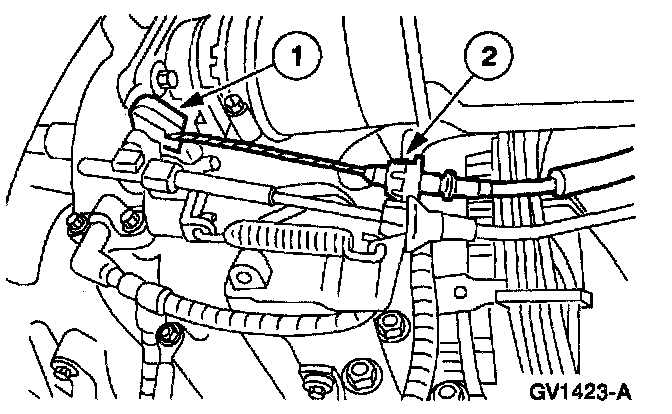

2. Remove the speed control actuator cable from the throttle nail head.
1 Lift the speed control actuator cable upward.
2 Squeeze the speed control actuator cable tabs and remove from the throttle nail head.







3. Remove the speed control actuator cable cap from the speed control servo.
1 Push in the locking arm on the speed control actuator cable cap.
2 Rotate the speed control actuator cable cap counterclockwise and remove the speed control actuator cable cap from the speed control servo.







4. Remove the speed control actuator cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control actuator cable.

INSTALLATION
1. To install, reverse the removal procedure.
