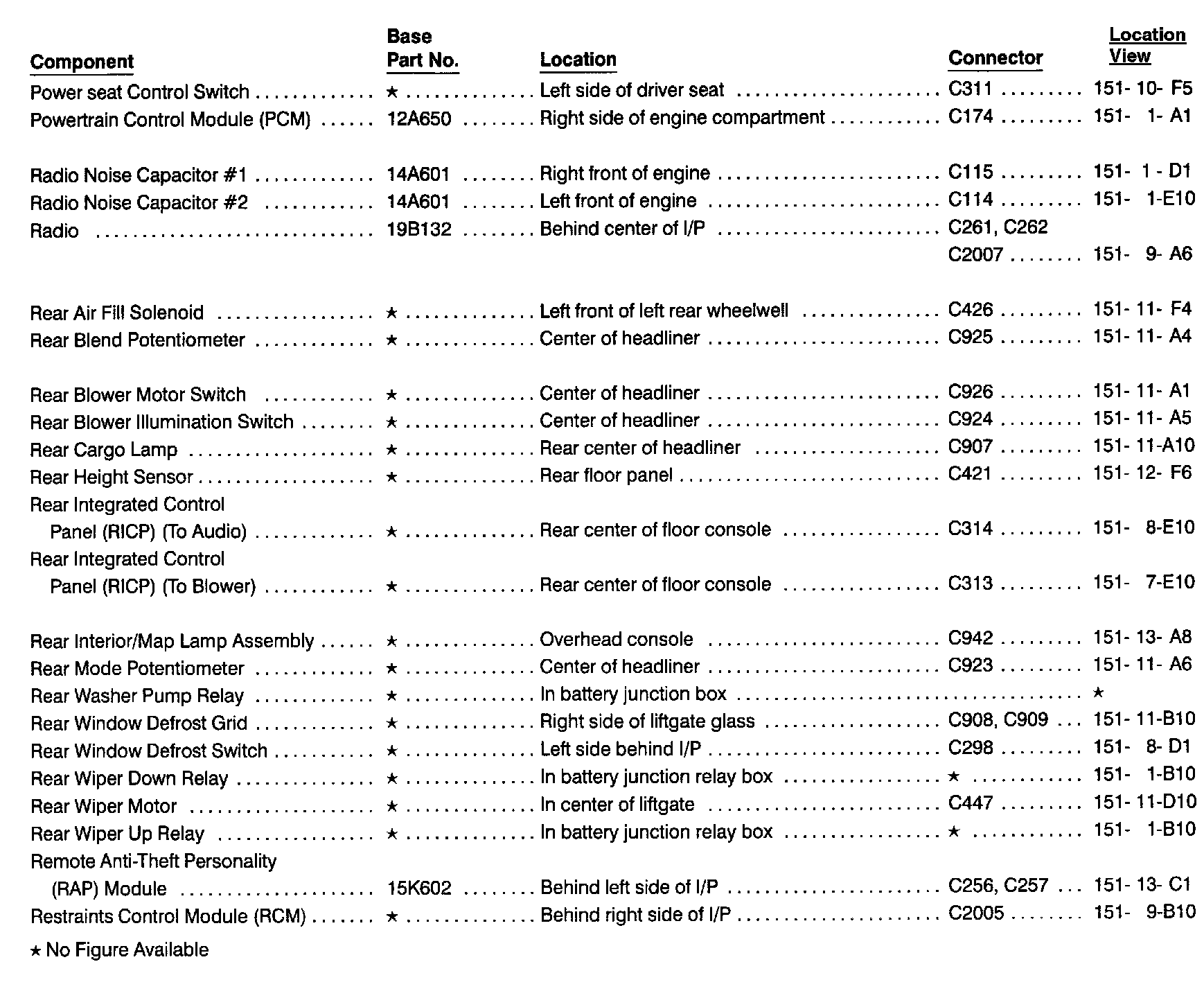

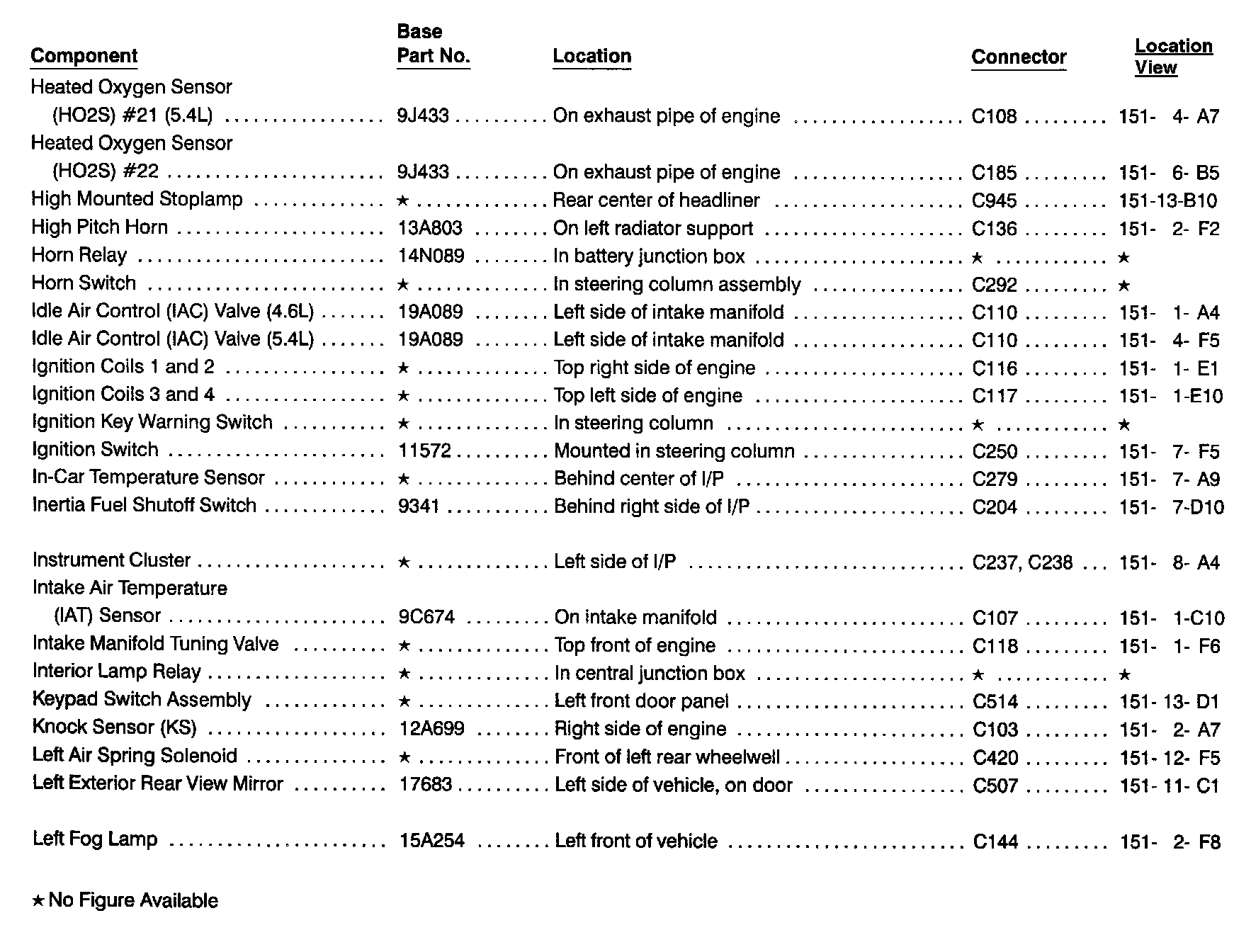

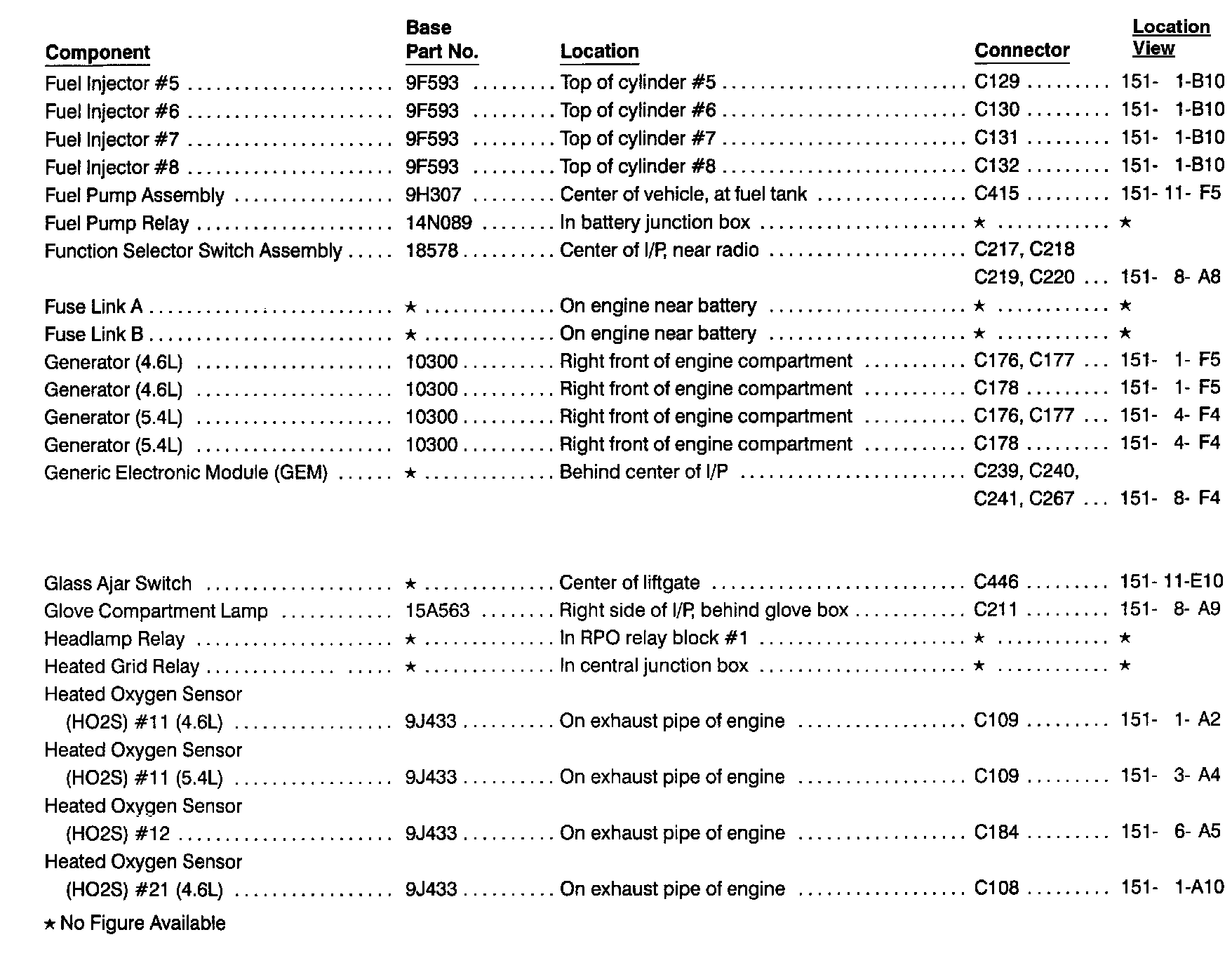

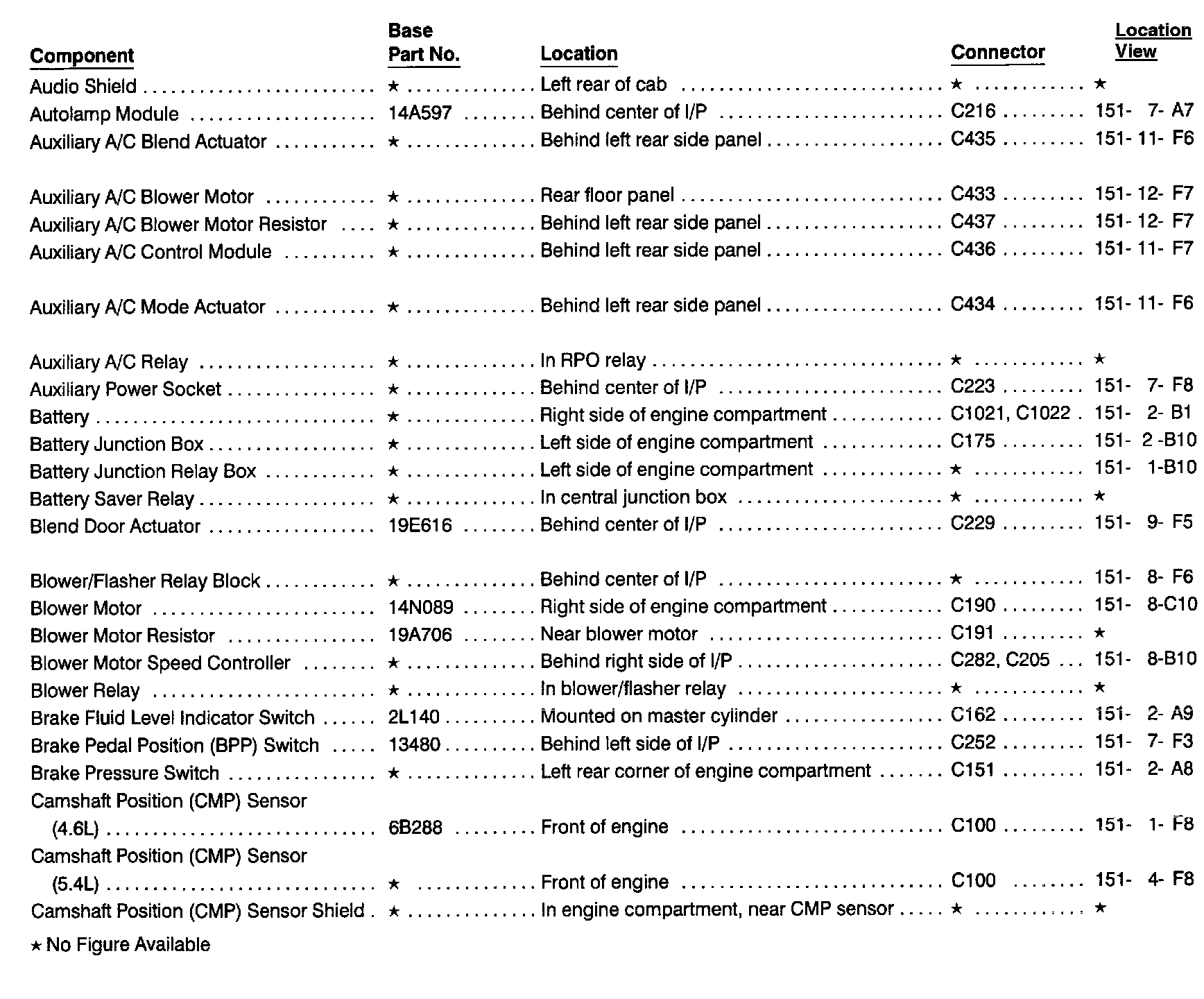

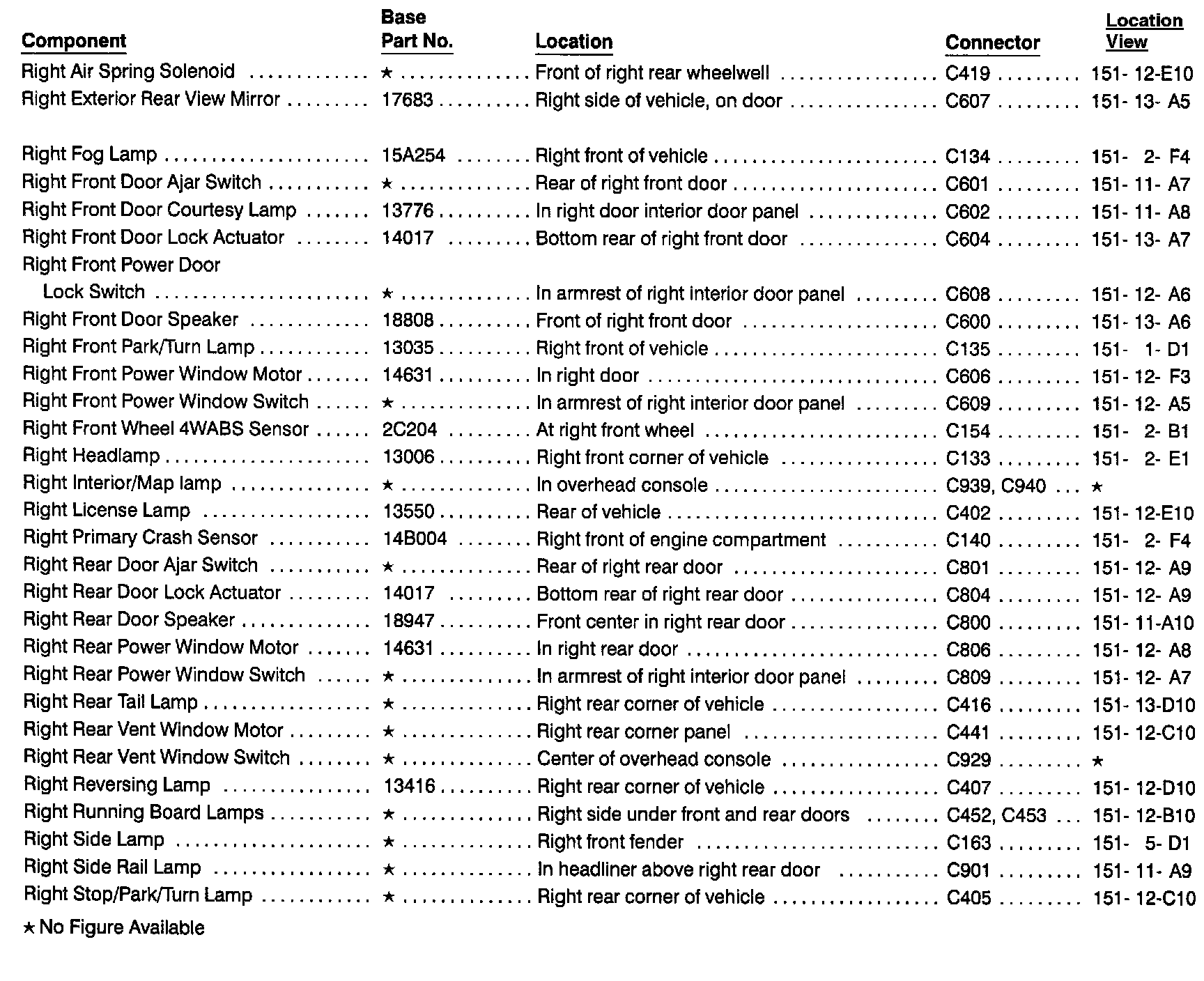

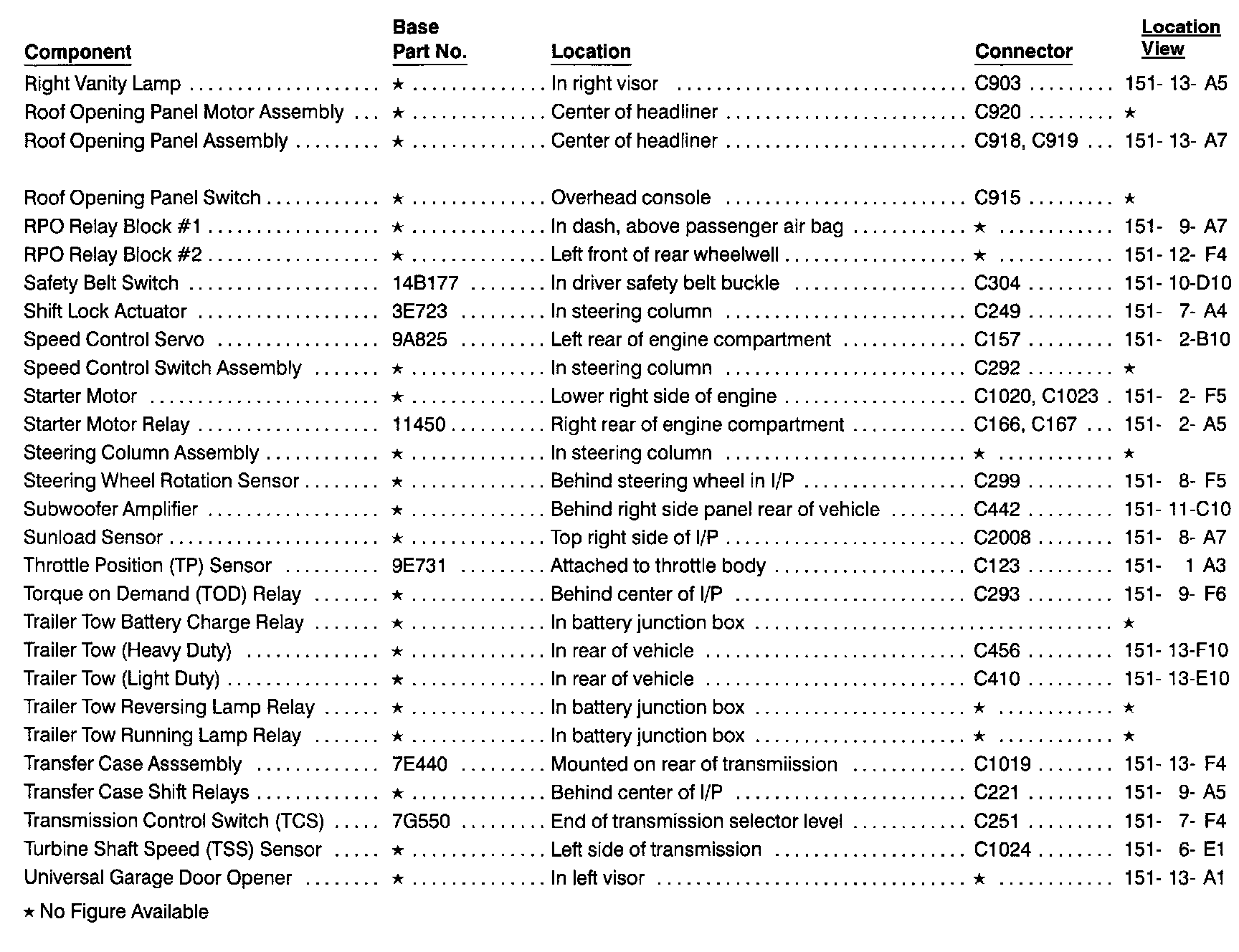

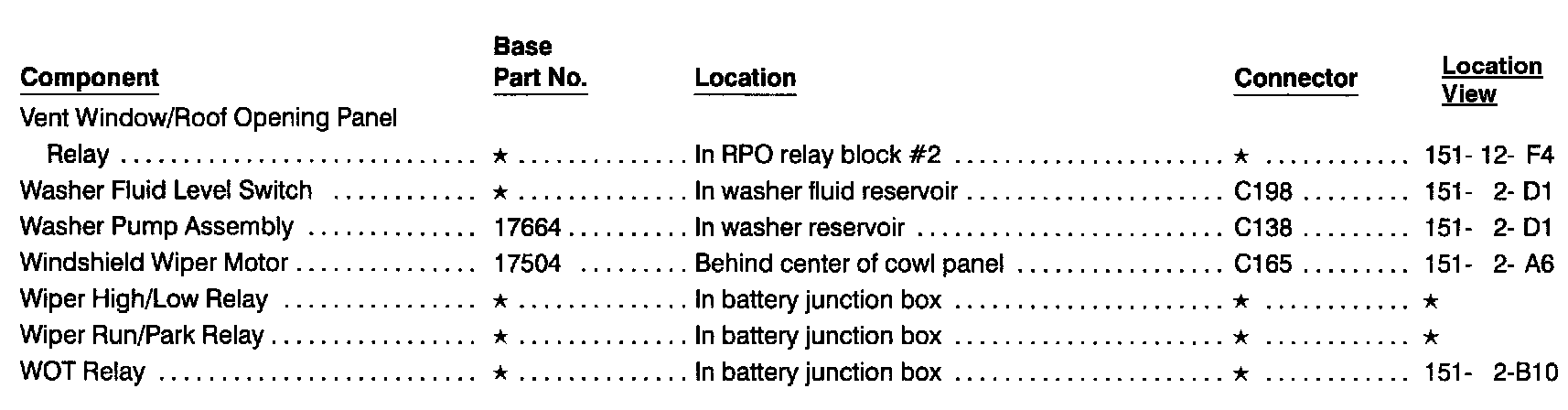

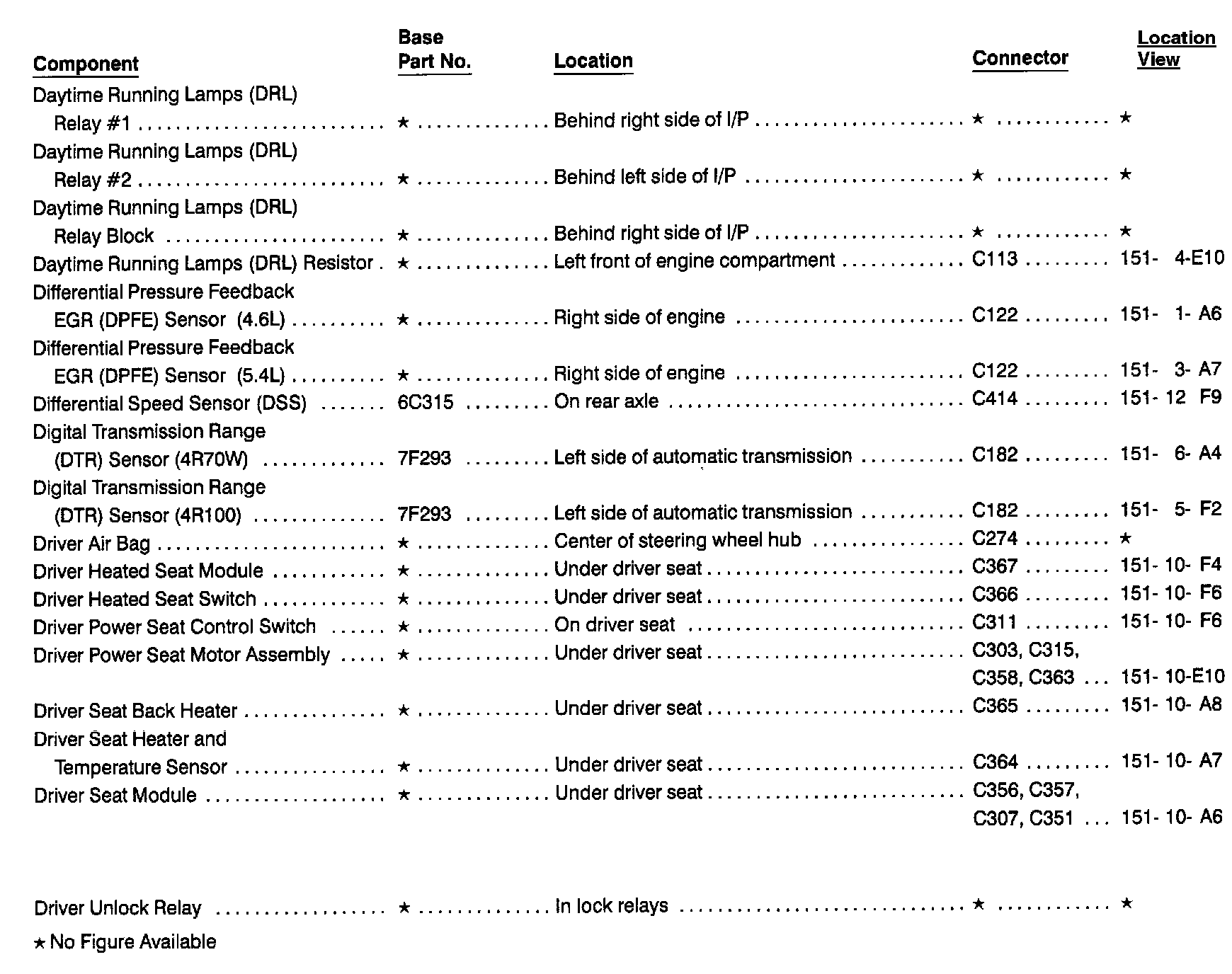

Components

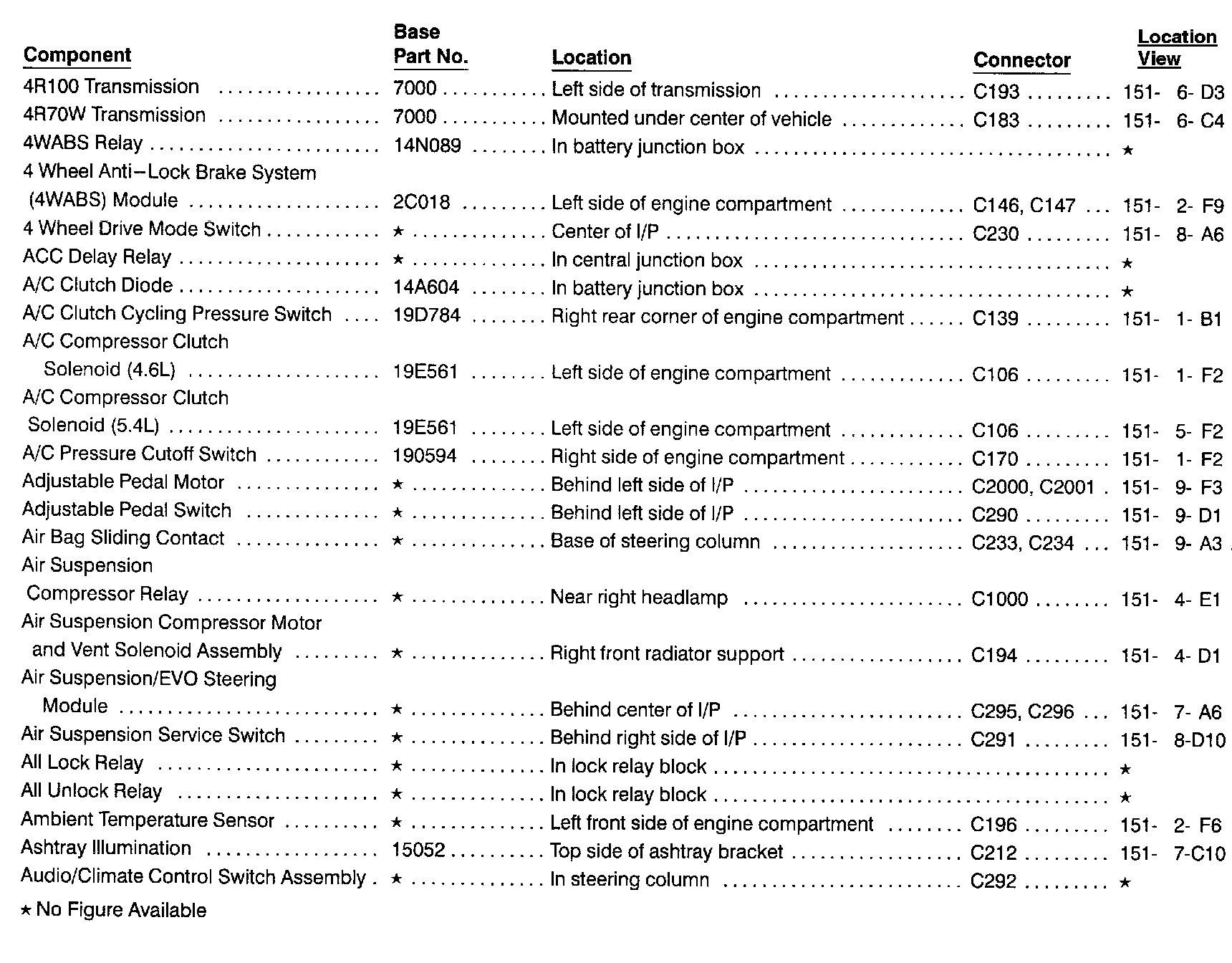

4R-Au:

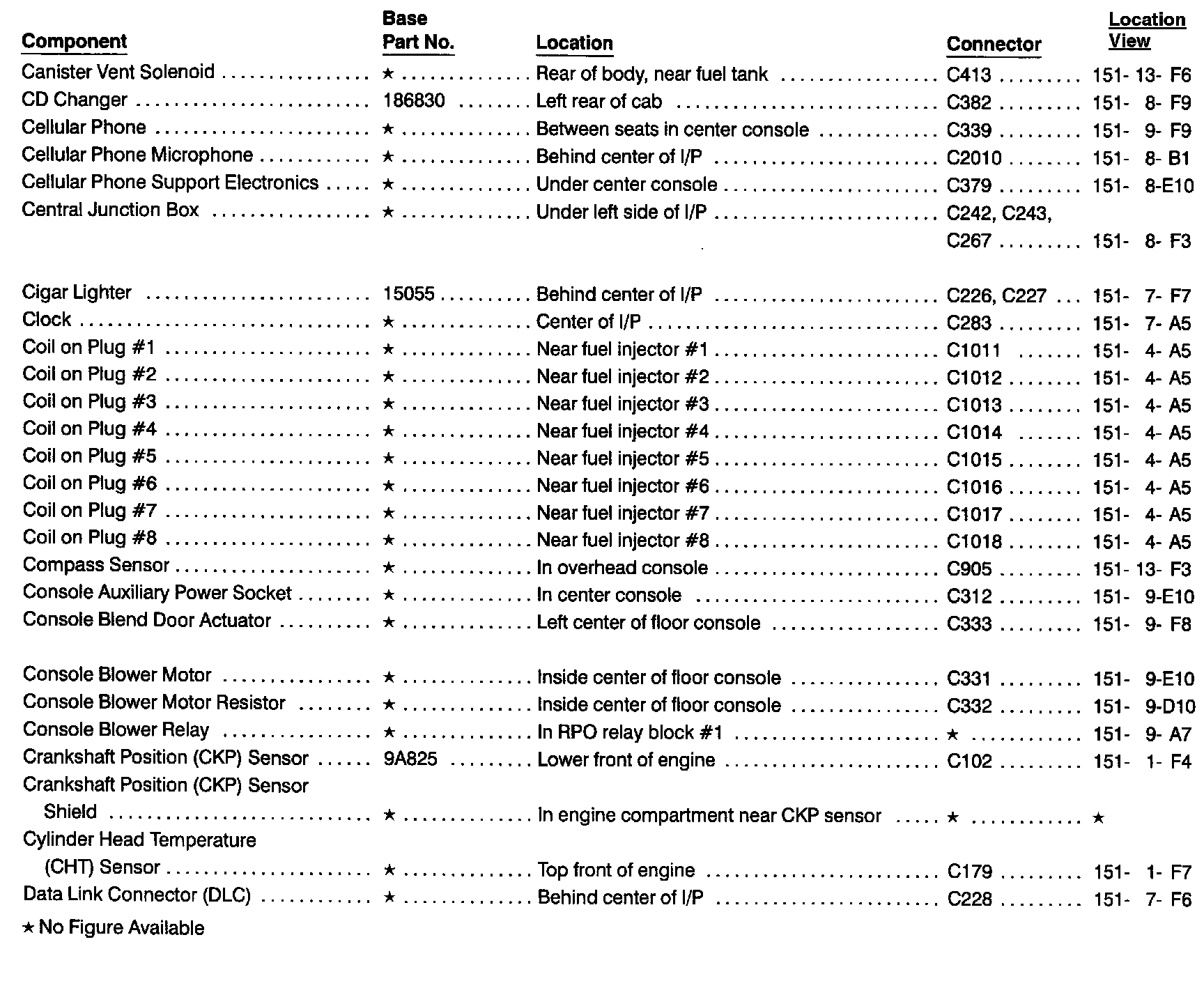

Au-Ca:






Ca-Da:






Da-Dr:






Eg-Fu:






Fu-He:






He-Le:

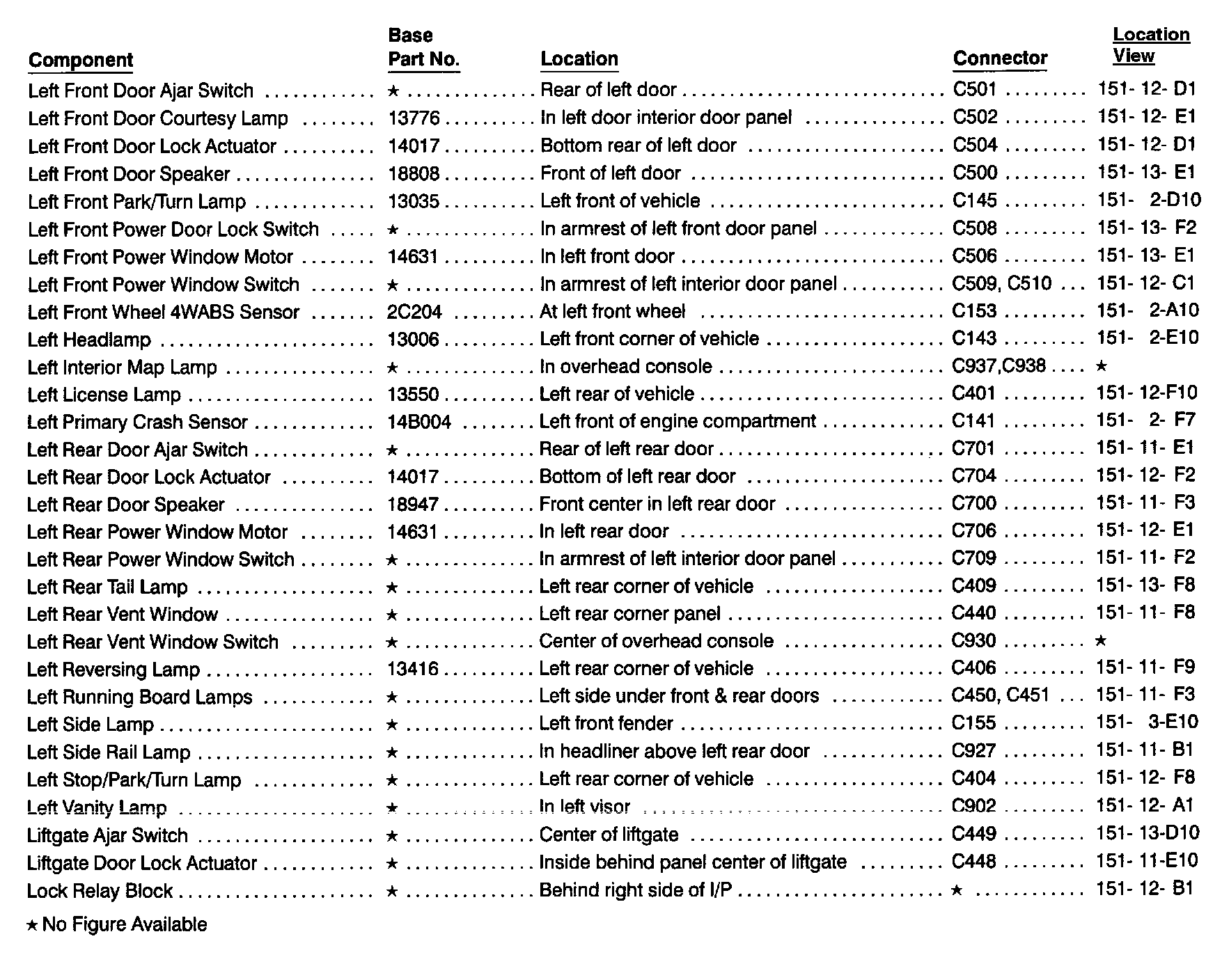

Le-Lo:

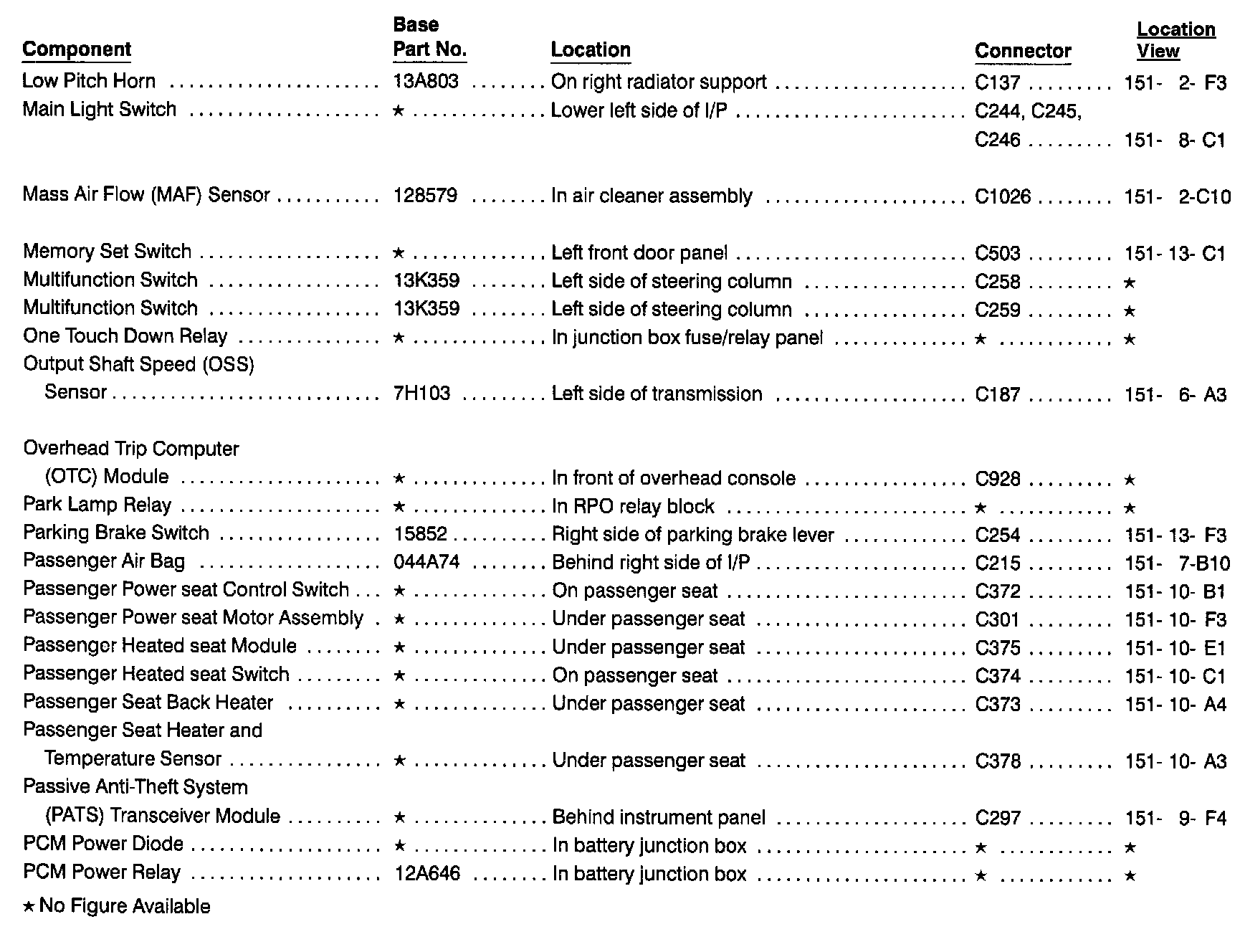

Lo-Pc:






Po-Re:






Ri-Ri:






Ri-Un:






Ve-Wo:
