Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

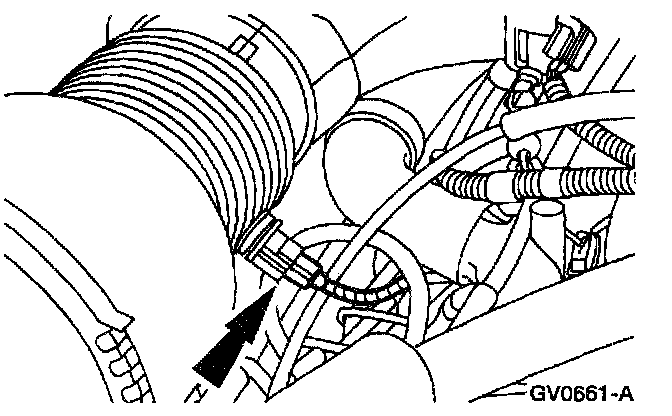

2. Disconnect the intake air temperature sensor electrical connector.

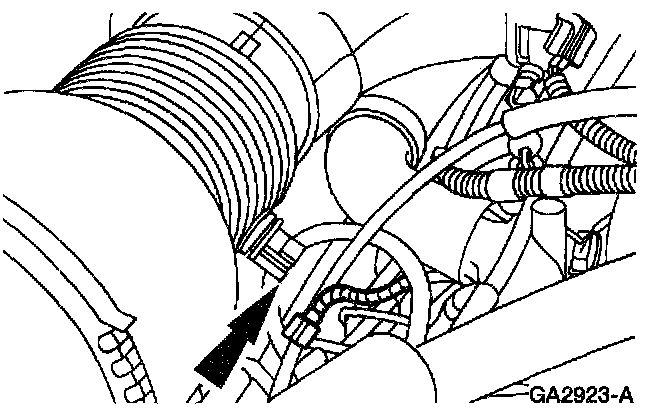

3. Remove the Intake Air Temperature (IAT) sensor.

INSTALLATION
1. To install, reverse the removal procedure.
