Knock Sensor: Service and Repair
REMOVAL1. Remove the intake manifold.

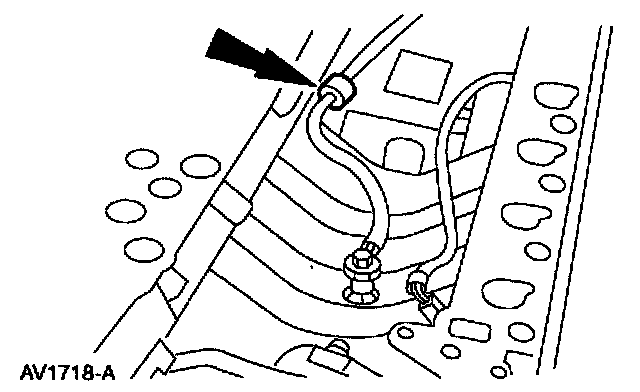

2. Disconnect the electrical connector from the Knock Sensor (KS).

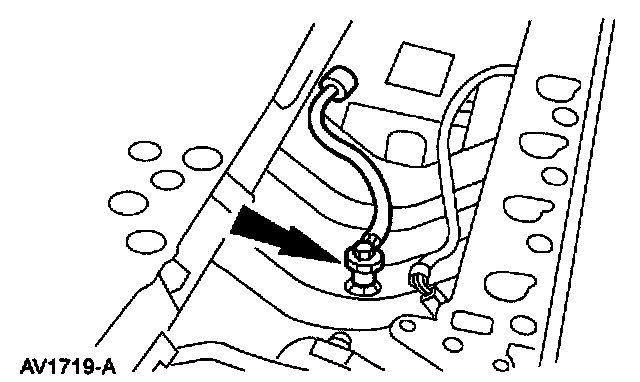

3. Remove the bolt and the Knock Sensor.
INSTALLATION

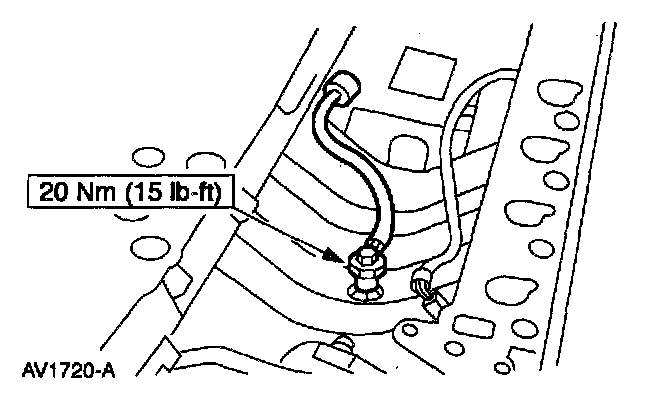

1. To install, reverse the removal procedure.
1. Remove the intake manifold.
2. Disconnect the electrical connector from the Knock Sensor (KS).
3. Remove the bolt and the Knock Sensor.
INSTALLATION
1. To install, reverse the removal procedure.
