Diagnostic Trouble Code Tests and Associated Procedures


4R100 1 Of 7:





4R100 2 Of 2:





4R100 3 Of 7:





4R100 4 Of 7:





4R100 5 Of 7:





4R100 6 Of 7:





4R100 7 Of 7:

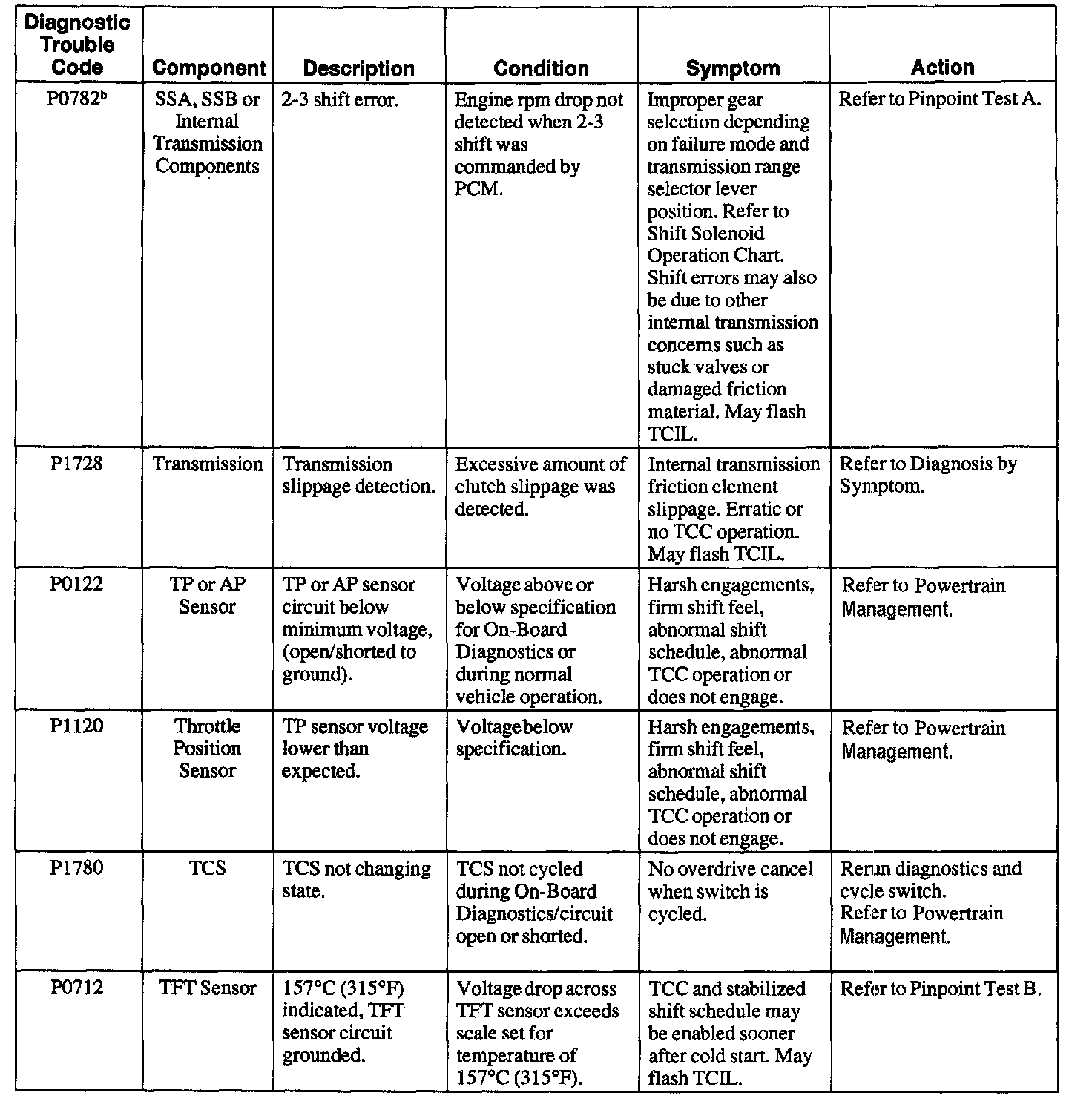

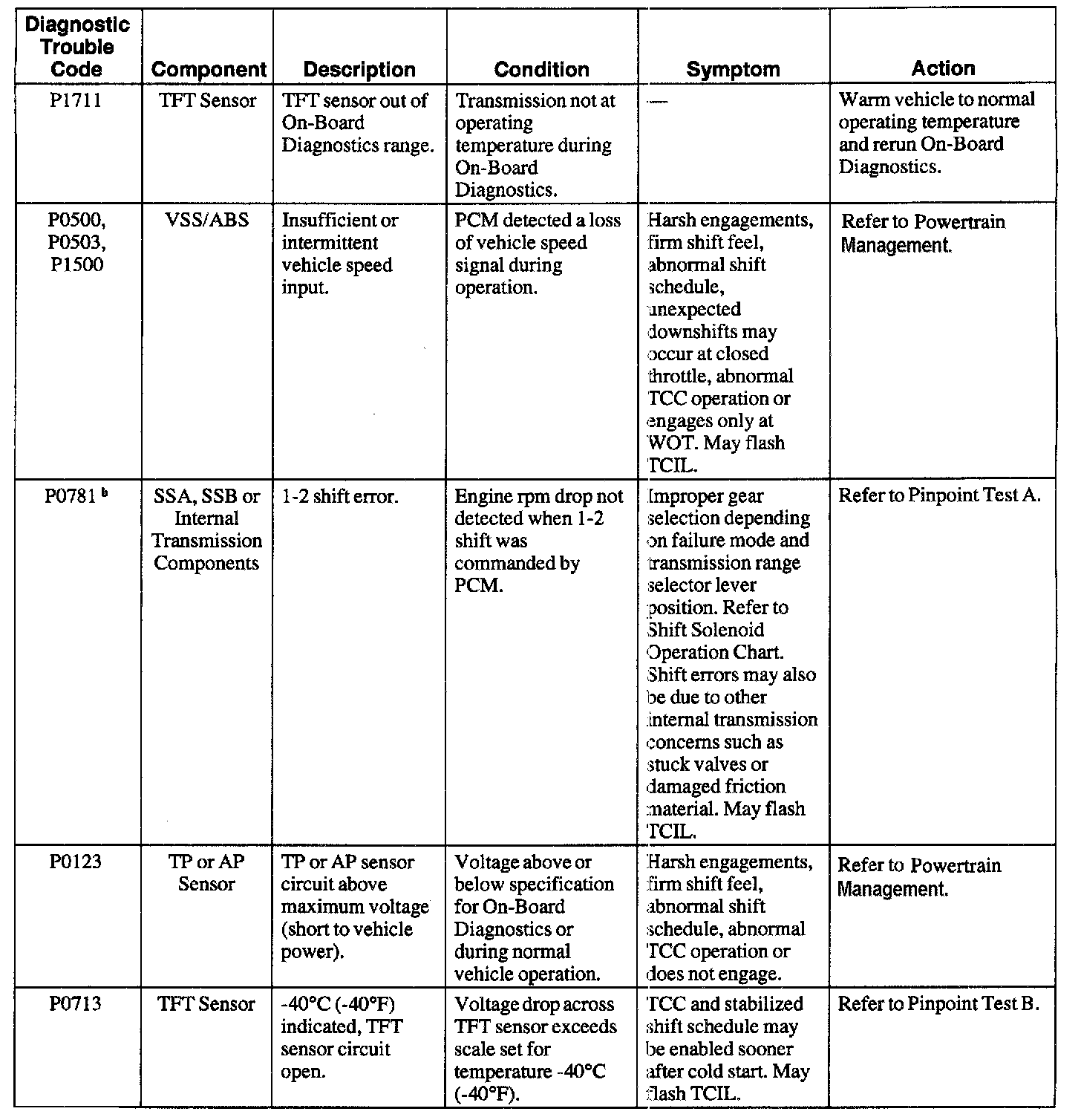

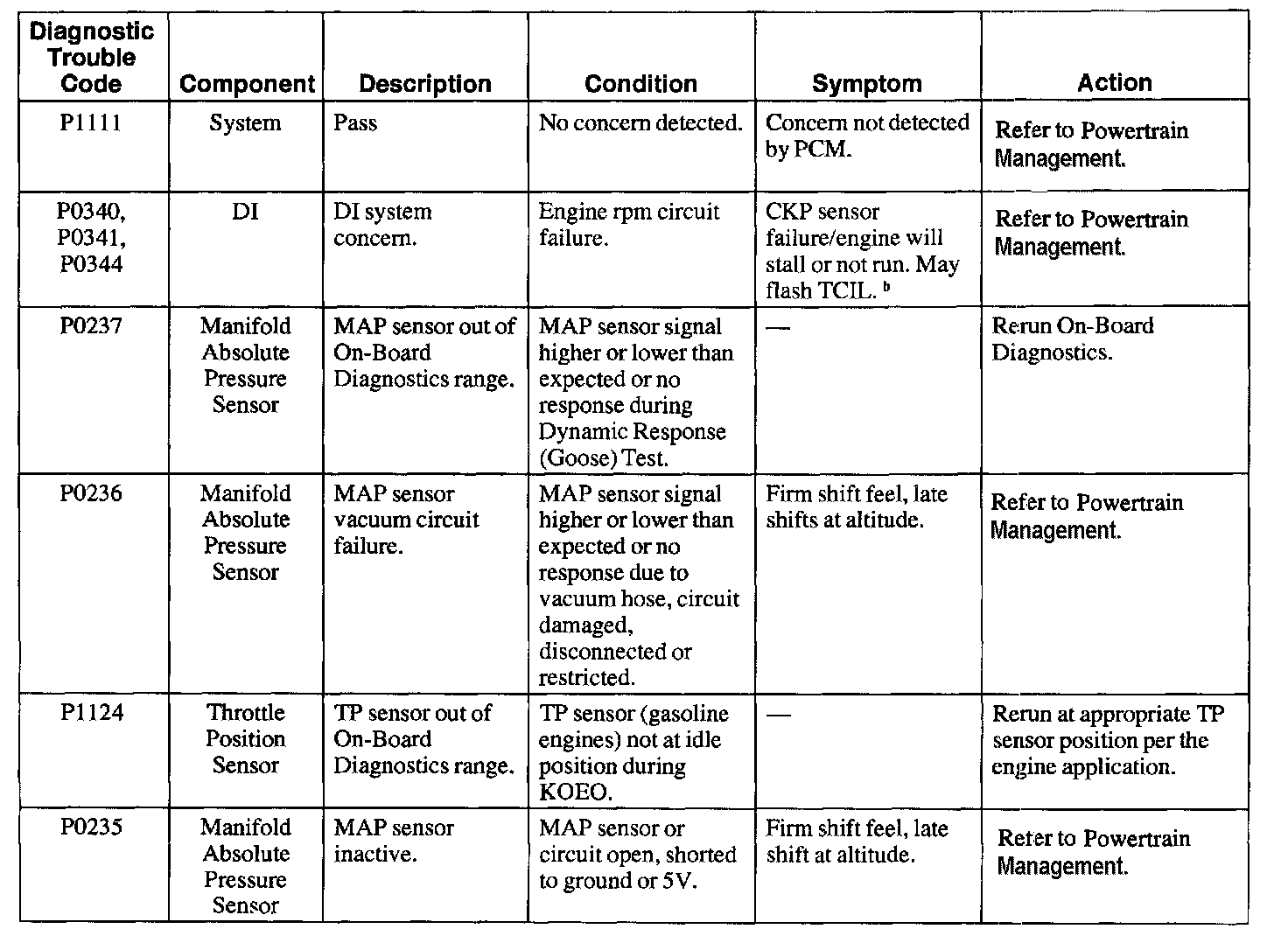

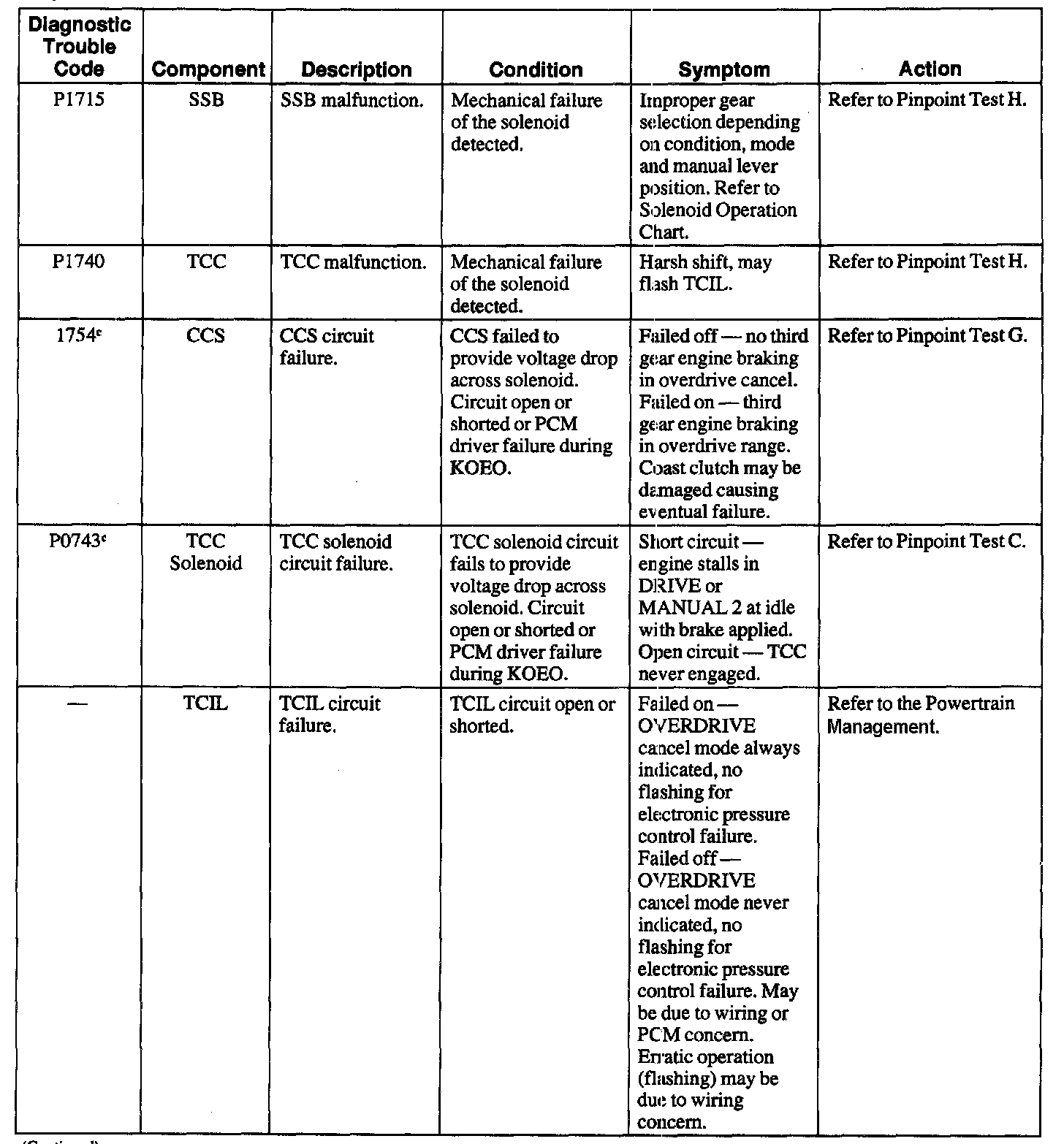

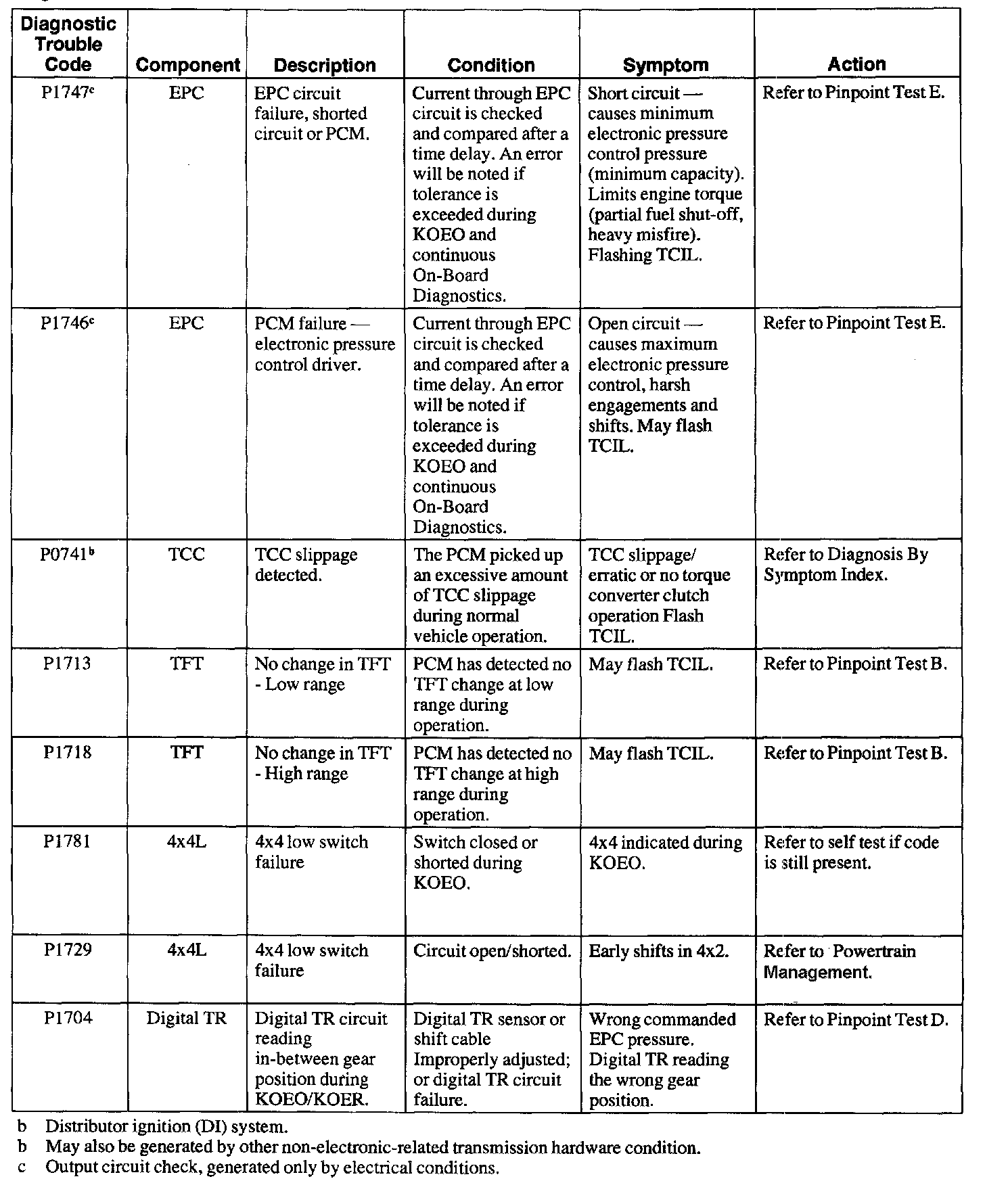

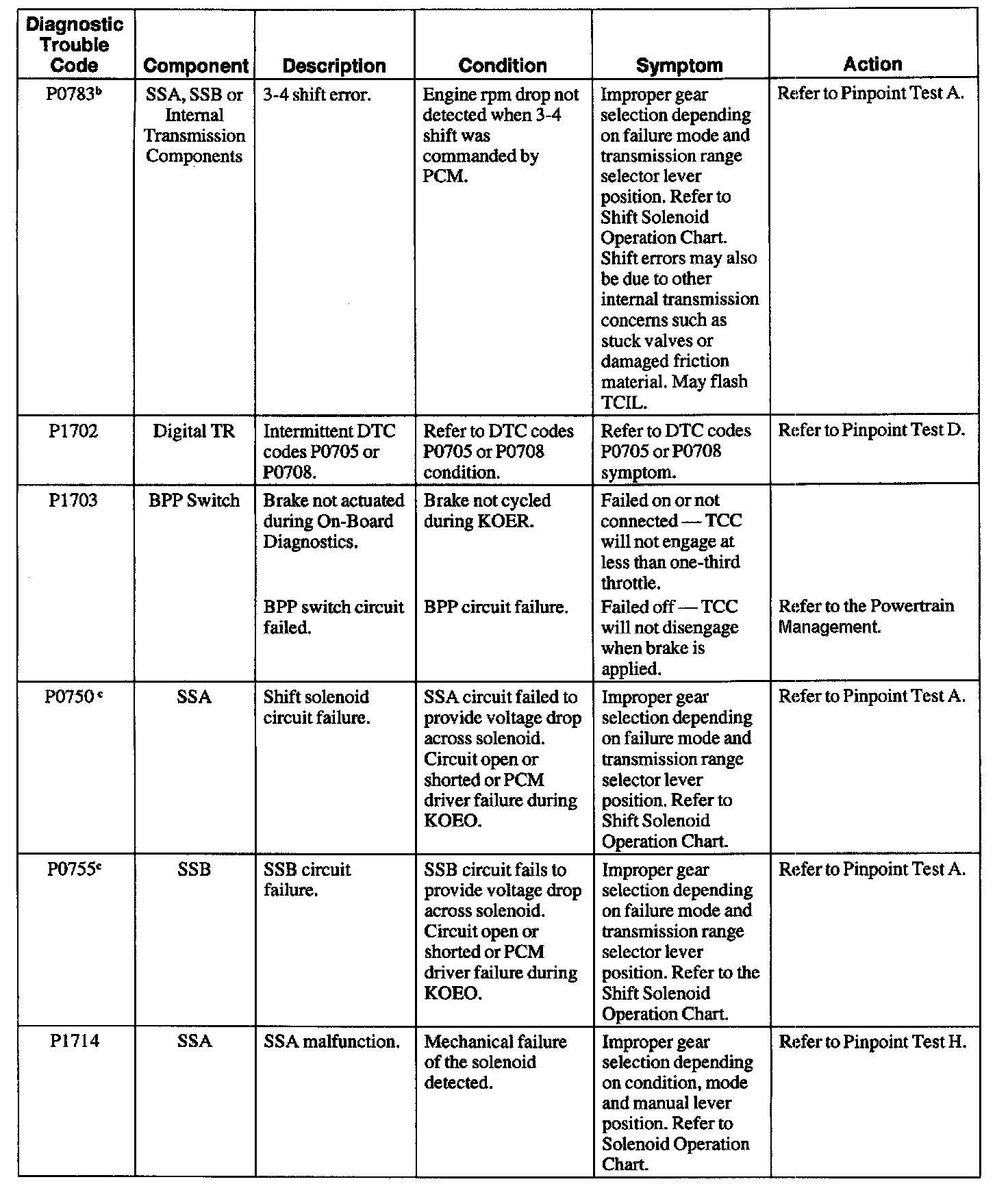

DIAGNOSTIC TROUBLE CODE CHART
