Horizontal Adjustment

1. Cycle the roof sliding outer glass panel to the fully/open position.

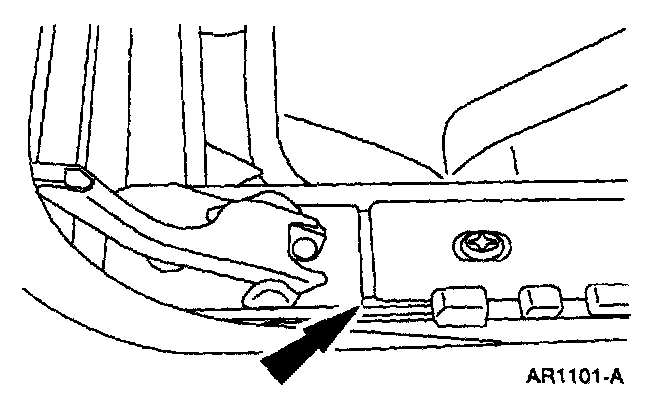

2. Loosen the 10 screws.







3. Adjust the side rails using the hash marks as a guide.

NOTE: Make sure both side rails are adjusted to the matching hash marks.

4. Tighten all the screws.

CAUTION: Hand-tighten all screws. DO NOT use air tools or damage to the holes in the roof sliding panel housing may occur.
