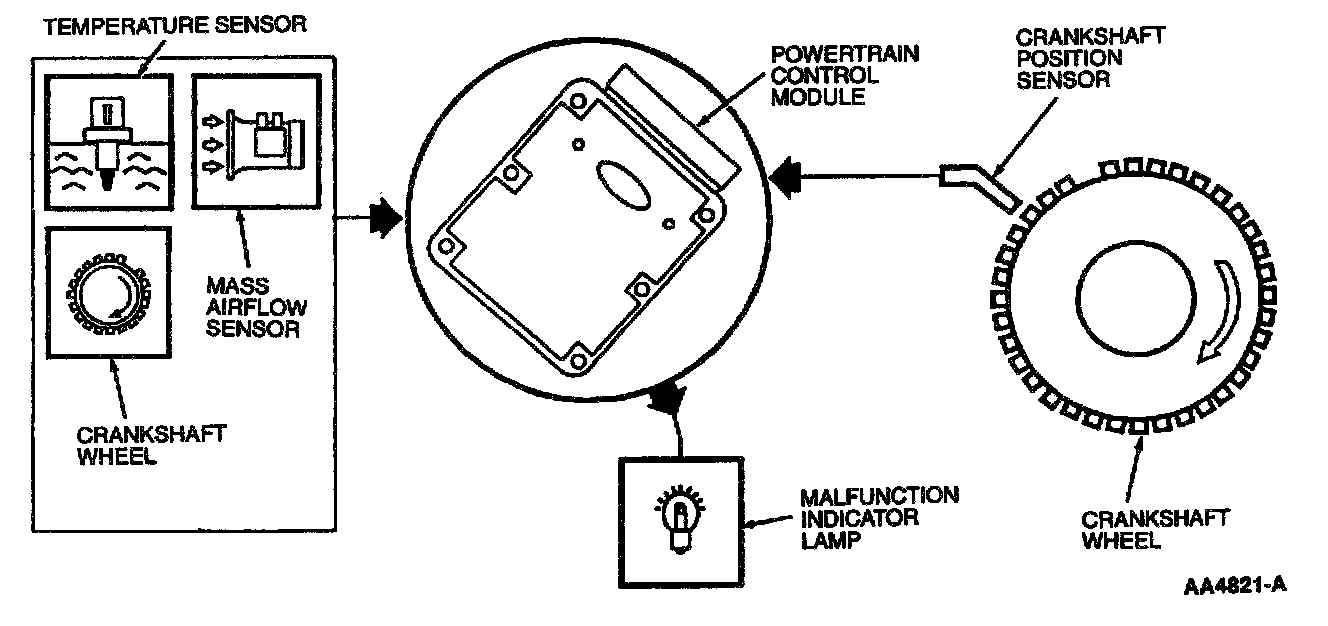

Tests HD: Misfire Detection Monitor

NOTE
This Pinpoint Test is intended to diagnose the following::
- Ignition System
- Fuel injectors
- Fuel pressure
- Vacuum system
- Evaporative emission system
- Fuel vapor storage canister
- EVAP canister purge valve
- Base engine
- Crankshaft Position (CKP) sensor
- Powertrain Control Module (PCM)

Pinpoint Test Schematics and Connectors
