Air Cleaner Housing: Service and Repair

REMOVAL

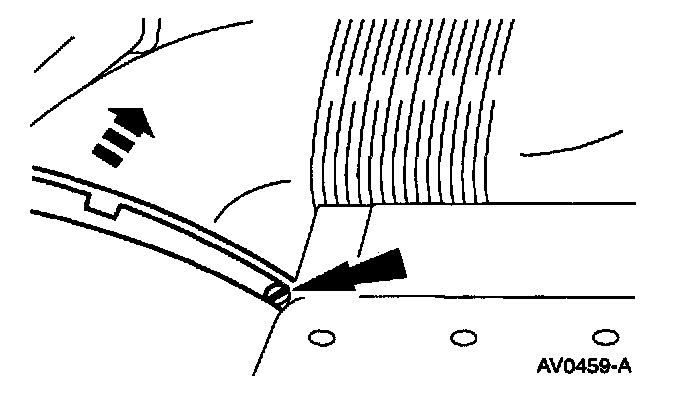

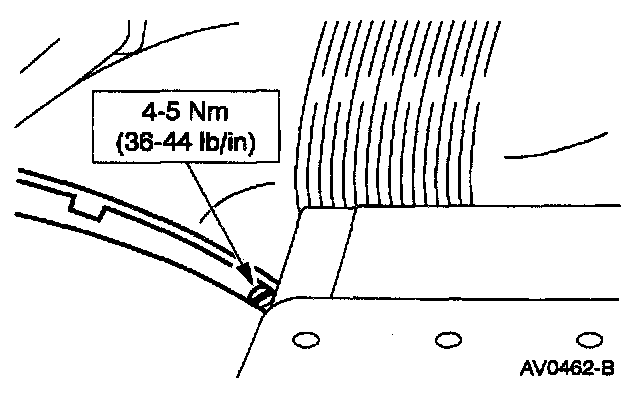

1. Loosen the engine air cleaner tube clamp on the air cleaner outlet tube and disconnect the air cleaner outlet tube from the engine Air Cleaner (ACL).

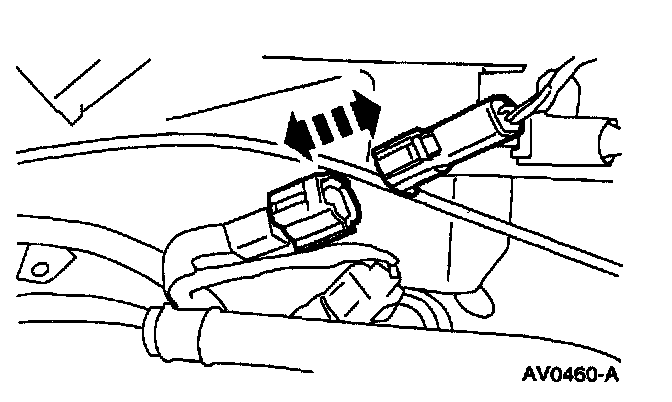

2. Disconnect the engine control sensor extension wiring from the engine control sensor wiring.

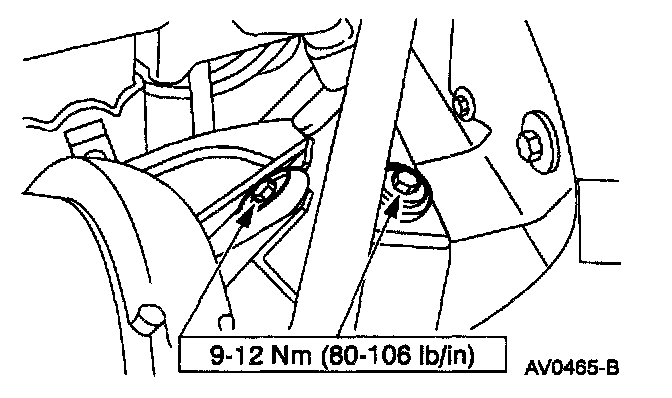

3. Remove the bolts and the air cleaner body from the vehicle.

INSTALLATION












1. Follow the removal procedure in reverse order.
