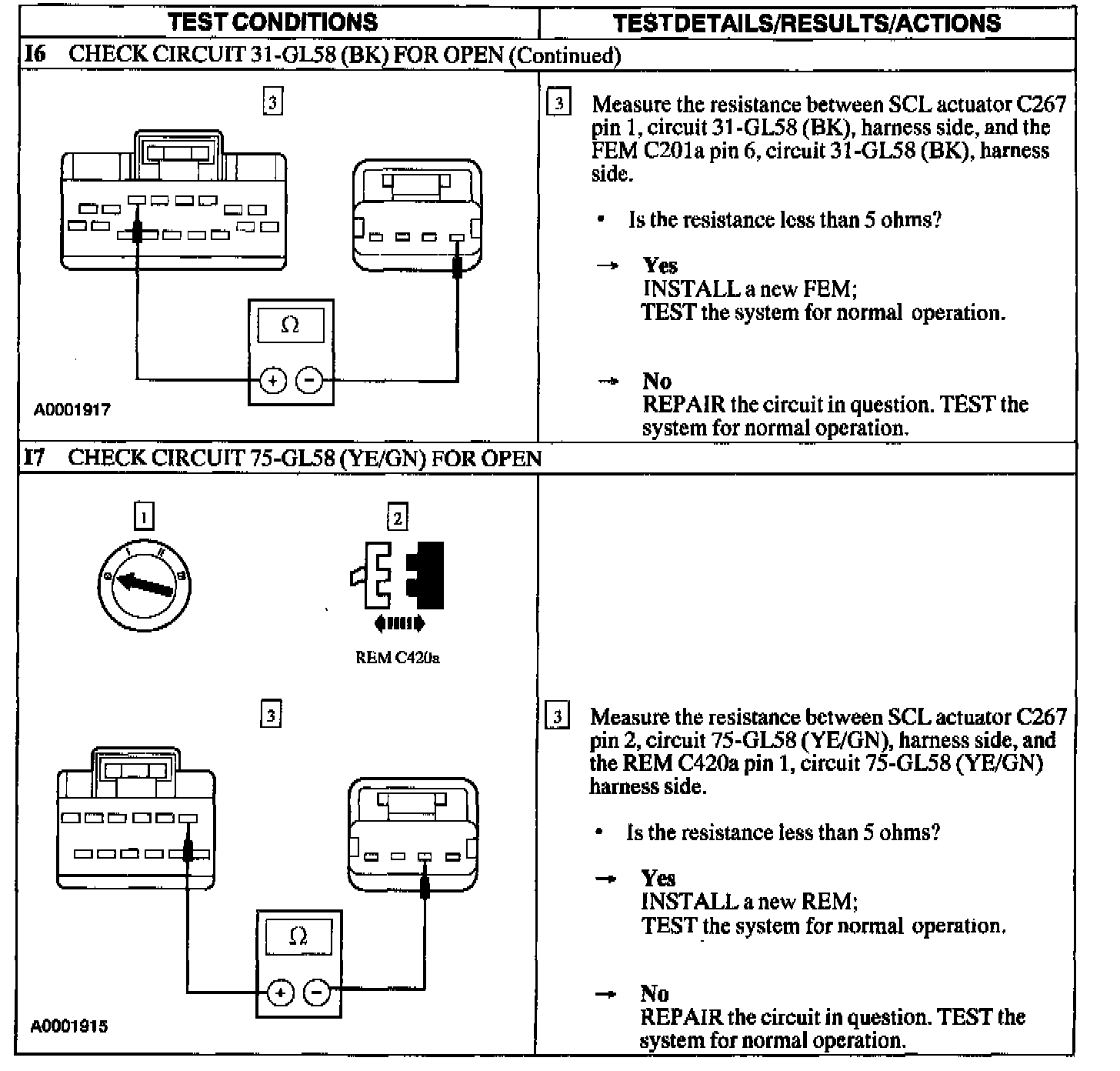

Test I: The Steering Column Lock Does Not Operate Correctly

I1:

I2 - I3:

I4 - I5:

I5 - I6:

I6 - I7:

Pinpoint Test I: THE STEERING COLUMN LOCK DOES NOT OPERATE CORRECTLY

Note: This test assumes that the Instrument Cluster (IC) module is sending the correct engine rpm, and vehicle speed to the FEM and REM over the Standard Corporate Protocol (SCP) communication network.
