Lincoln
>>
2000
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>

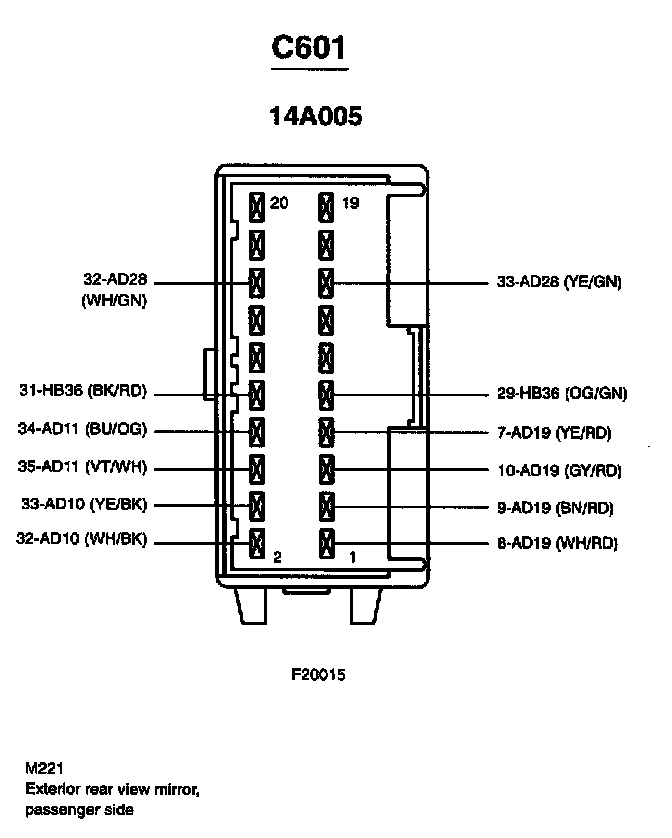

Connector Views
>>
Mirrors
>>
System Diagram
>>
Passenger Side
Passenger Side
