Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Column

Steering Column

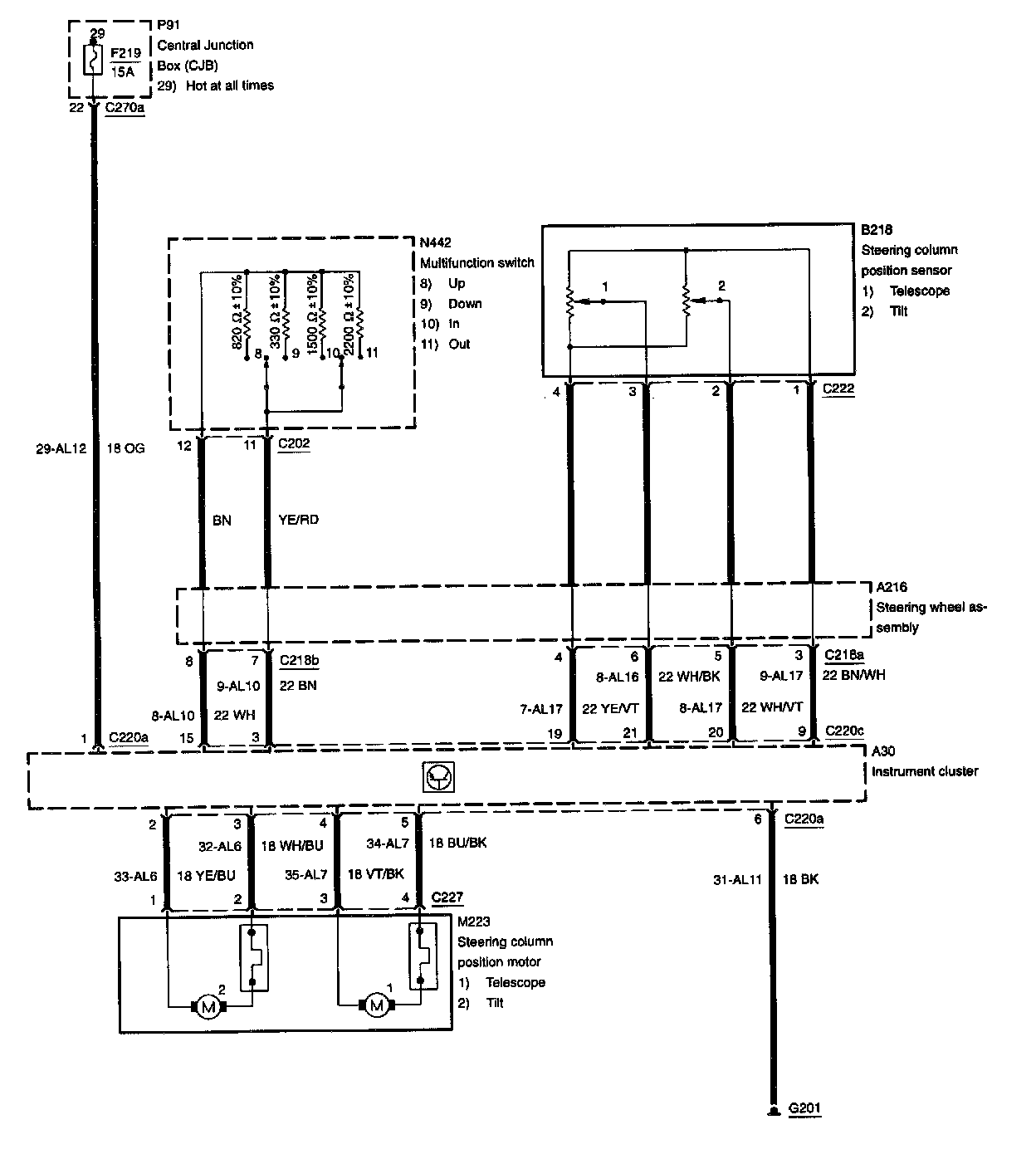

Diagram 211-04-00-1:
