Intake Air Systems

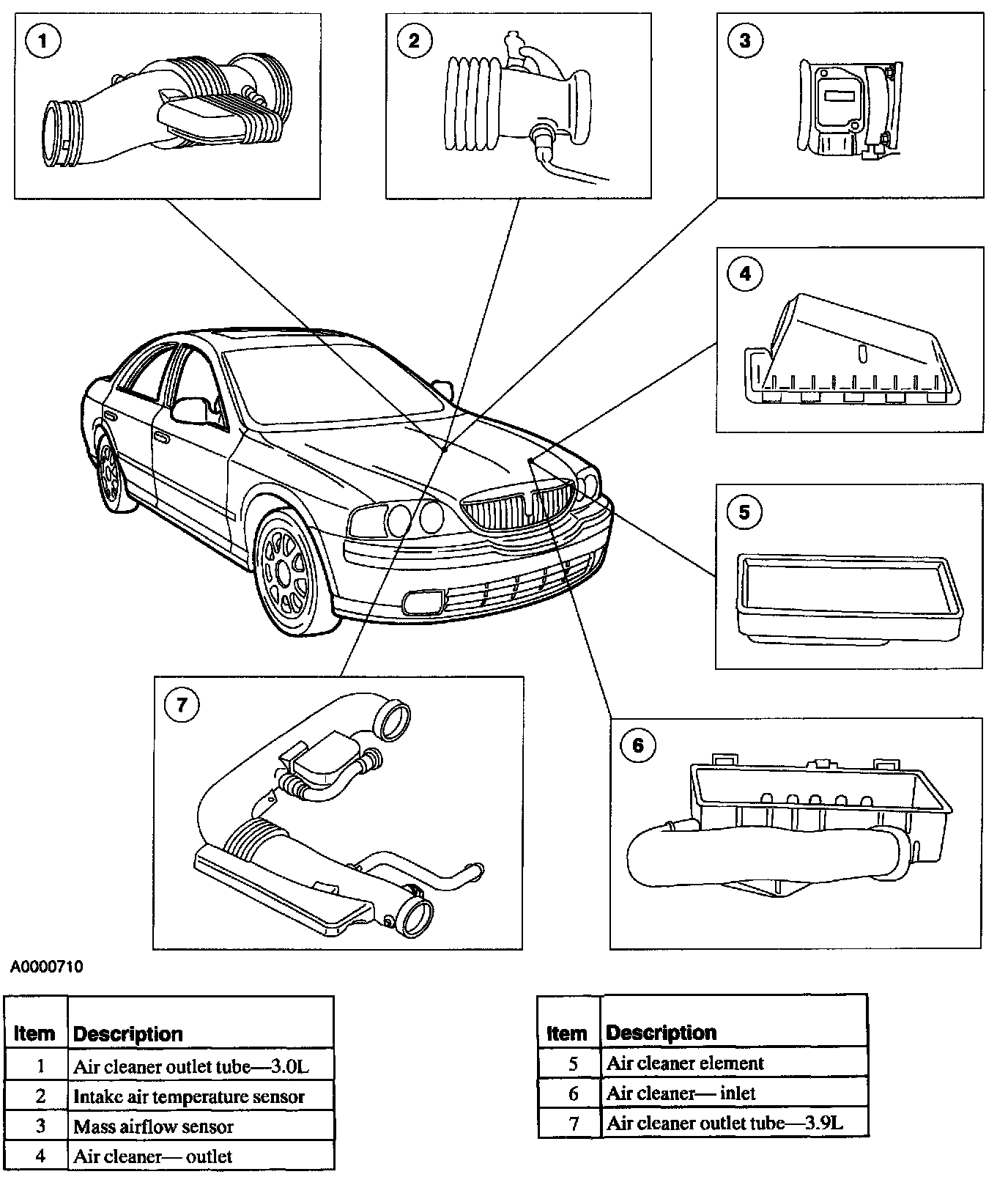

The air intake system consists of the:
^ Air Cleaner (ACL) (inlet and outlet)
^ Air Cleaner (ACL) element
^ Mass Airflow (MAF) sensor
^ Intake Air Temperature (IAT) sensor
^ air cleaner outlet tube
The air intake system:
^ cleans intake air with a replaceable air cleaner element.
^ measures airflow with the MAF sensor. For additional information, refer to Computers and Control Systems.
^ measures air temperature with the IAT.
