Automated Equipment

Transmission Fluid Drain and Refill - Automated Equipment

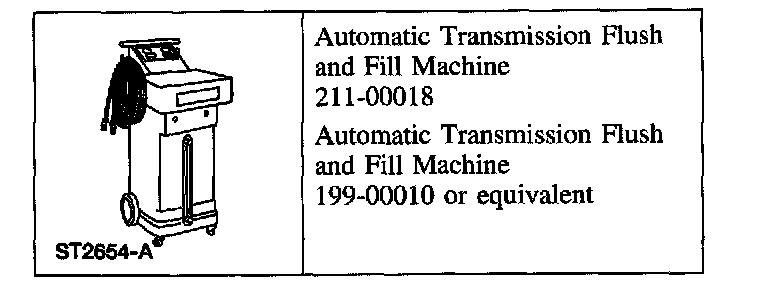

Special Tool(s)

Draining

CAUTION: Use only clean automatic transmission fluid specified for this transmission. Do not use supplemental transmission fluid additives, treatments or clean agents. The use of these materials can affect transmission operation and result in damage to internal transmission components. Always refer to the instructions supplied with the flush and fill machine.

1. With the vehicle in PARK, position it on a hoist.
2. Use a suitable flush and fill machine to change the fluid.
3. When connecting the flush and fill machine, connect the machine to the fluid cooler tube after the fluid cooler on the cooler return line. This will help remove any foreign material trapped in the fluid coolers.

Refill
1. Use only clean automatic transmission fluid.
2. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect any disconnected fluid cooler tubes.
3. With the engine running, check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved.
