Home >> Lincoln >> 2000 >> Navigator 2WD V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

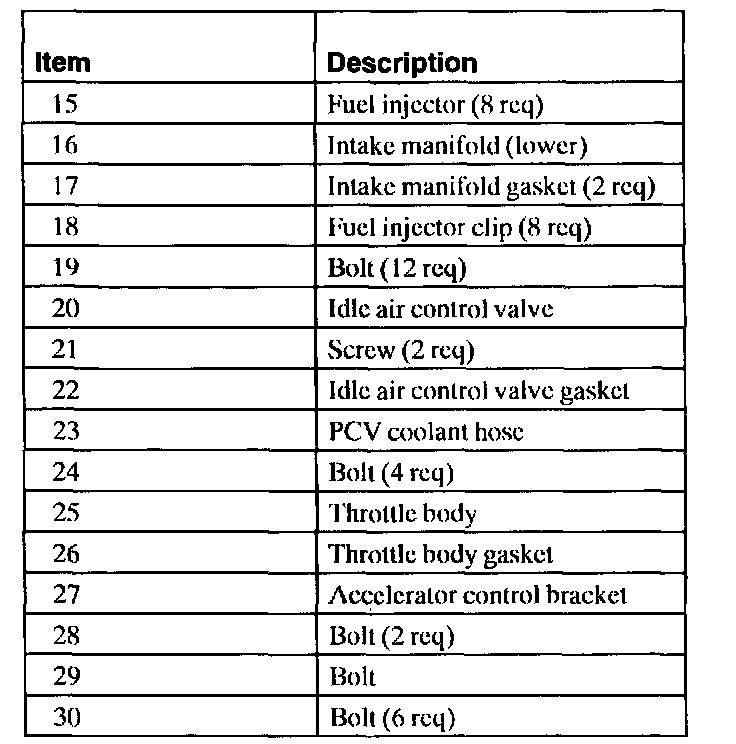

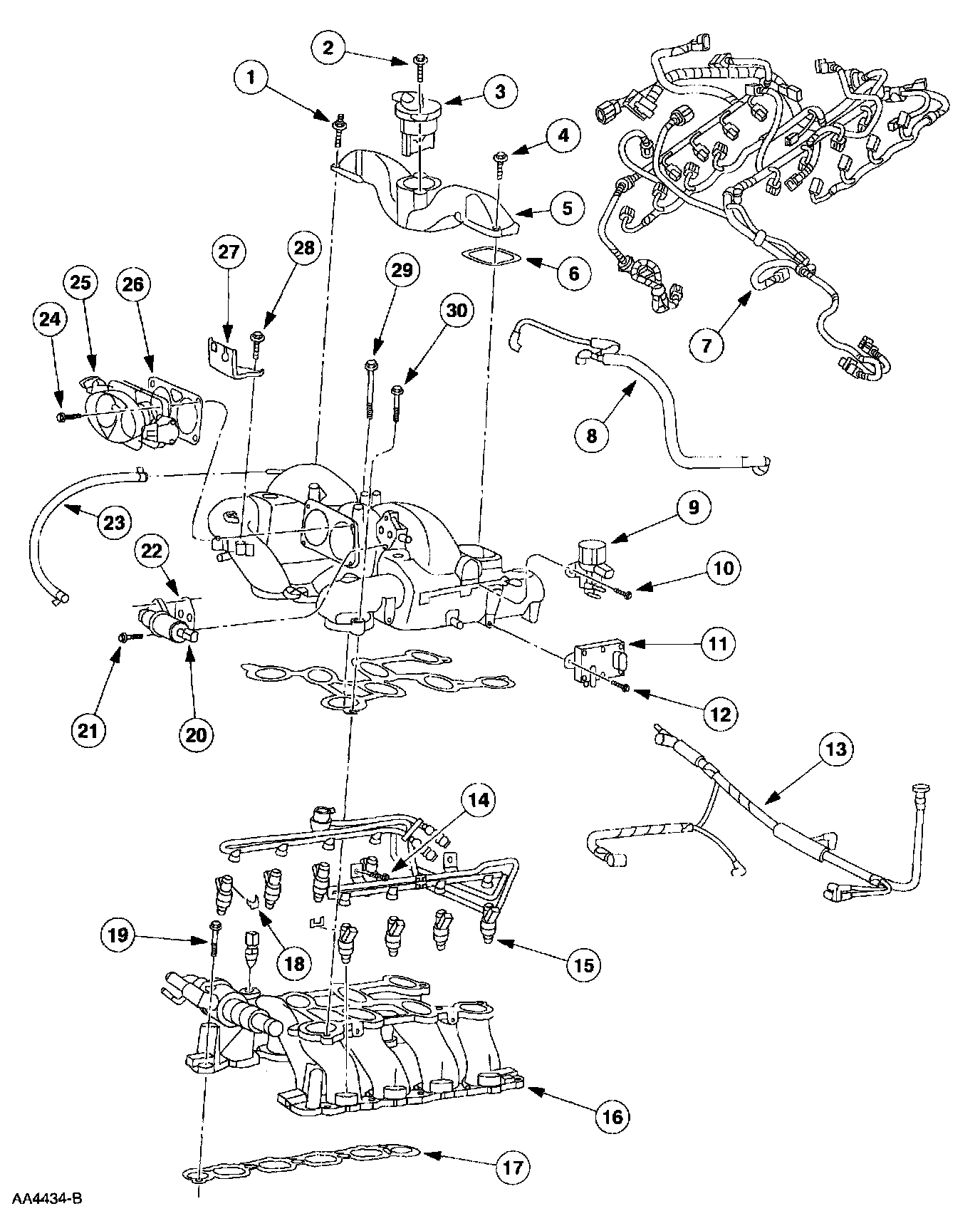

Induction System

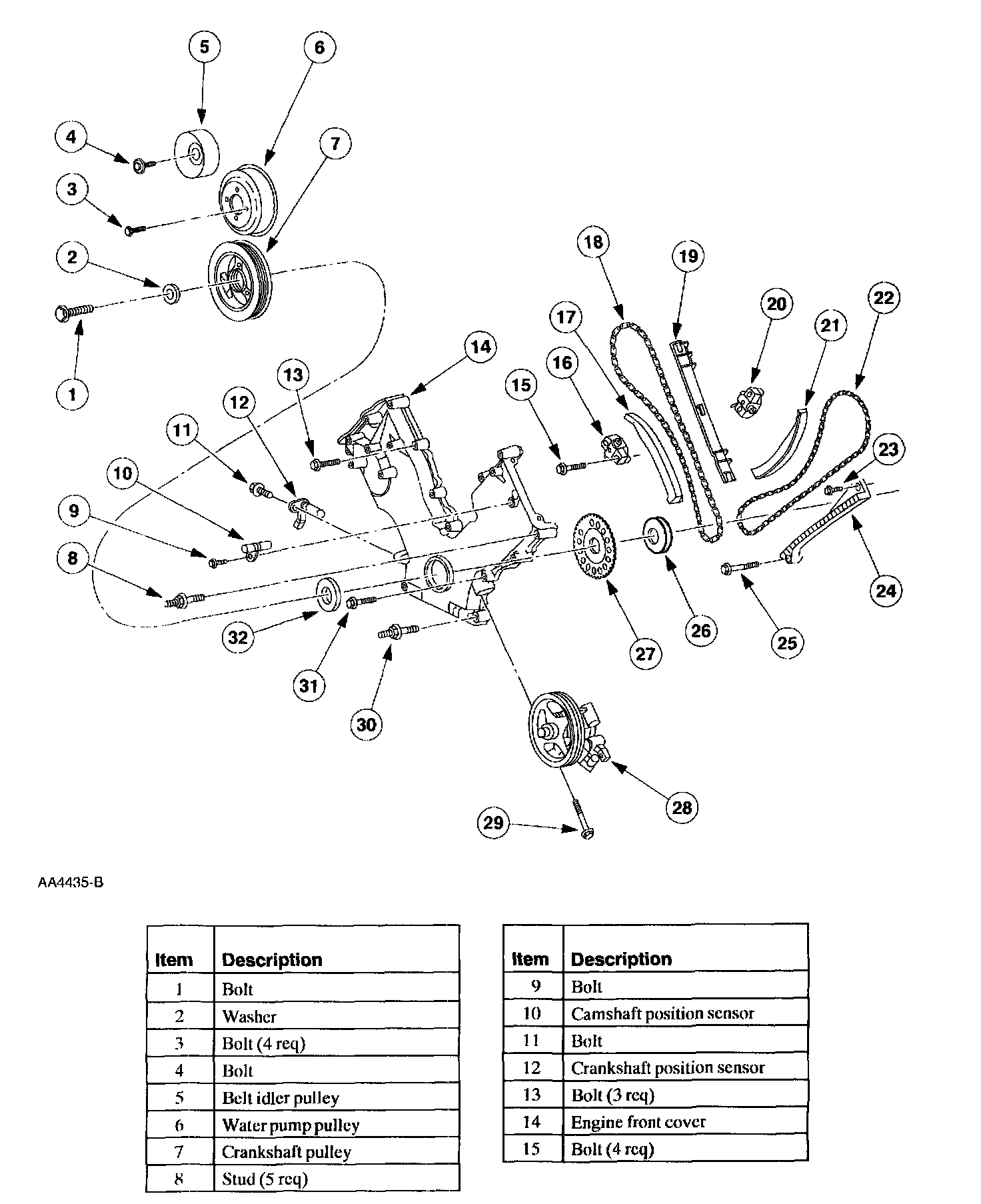

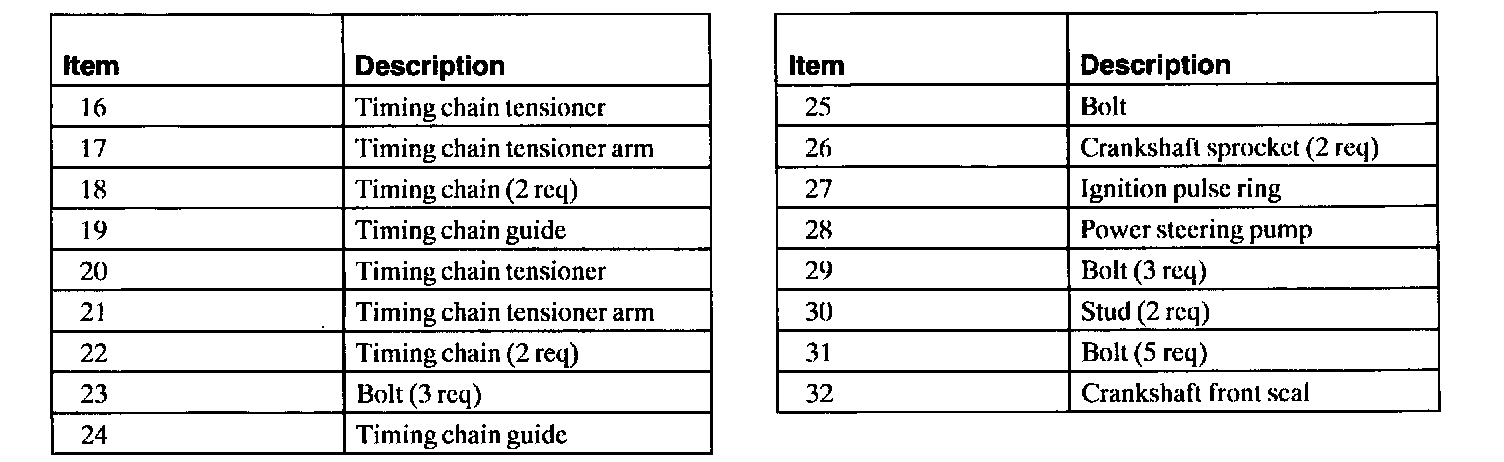

Timing Components

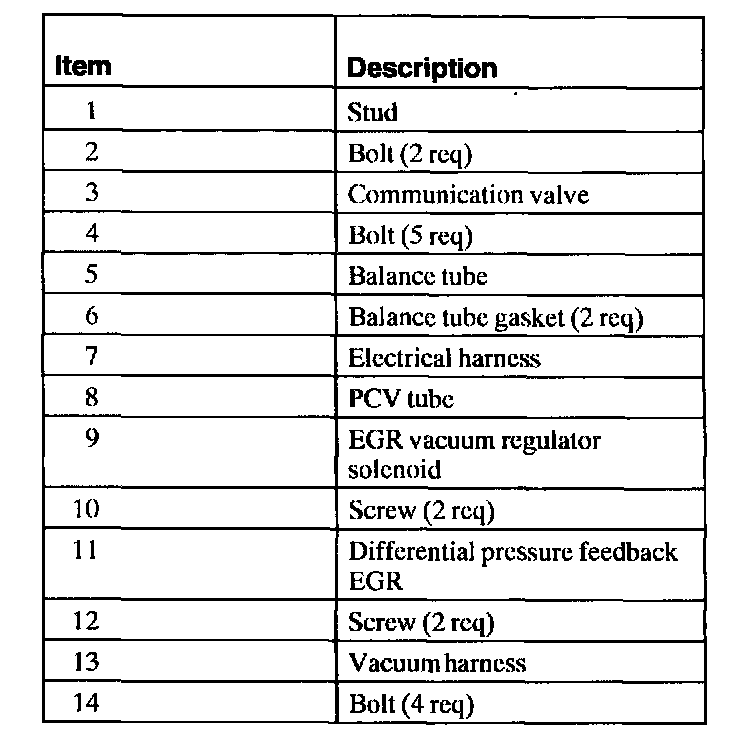

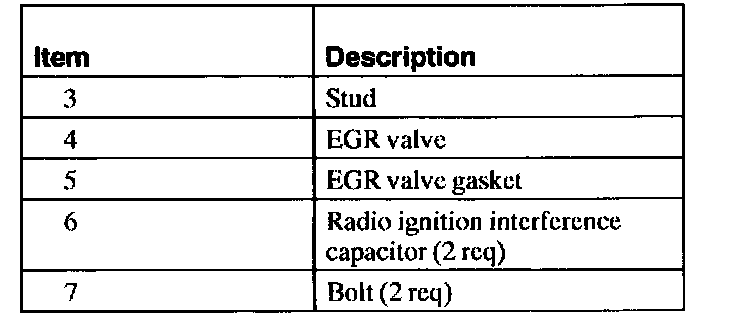

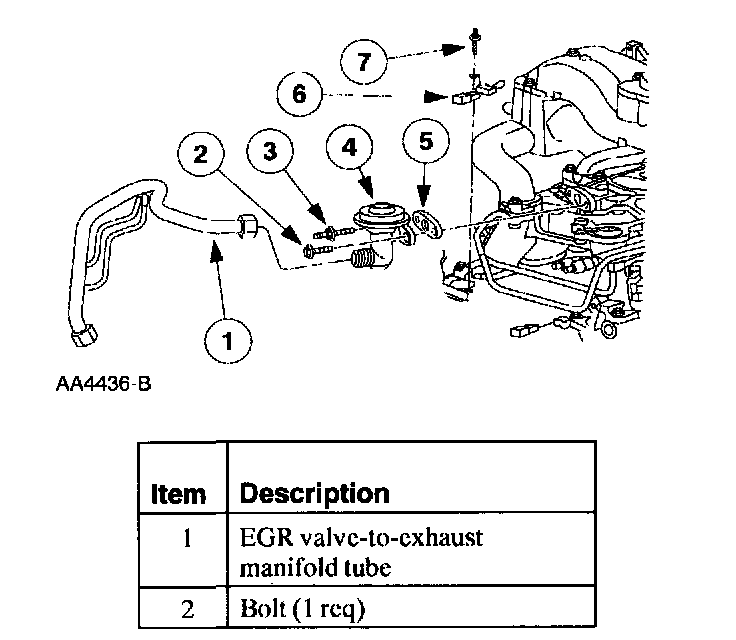

EGR Components

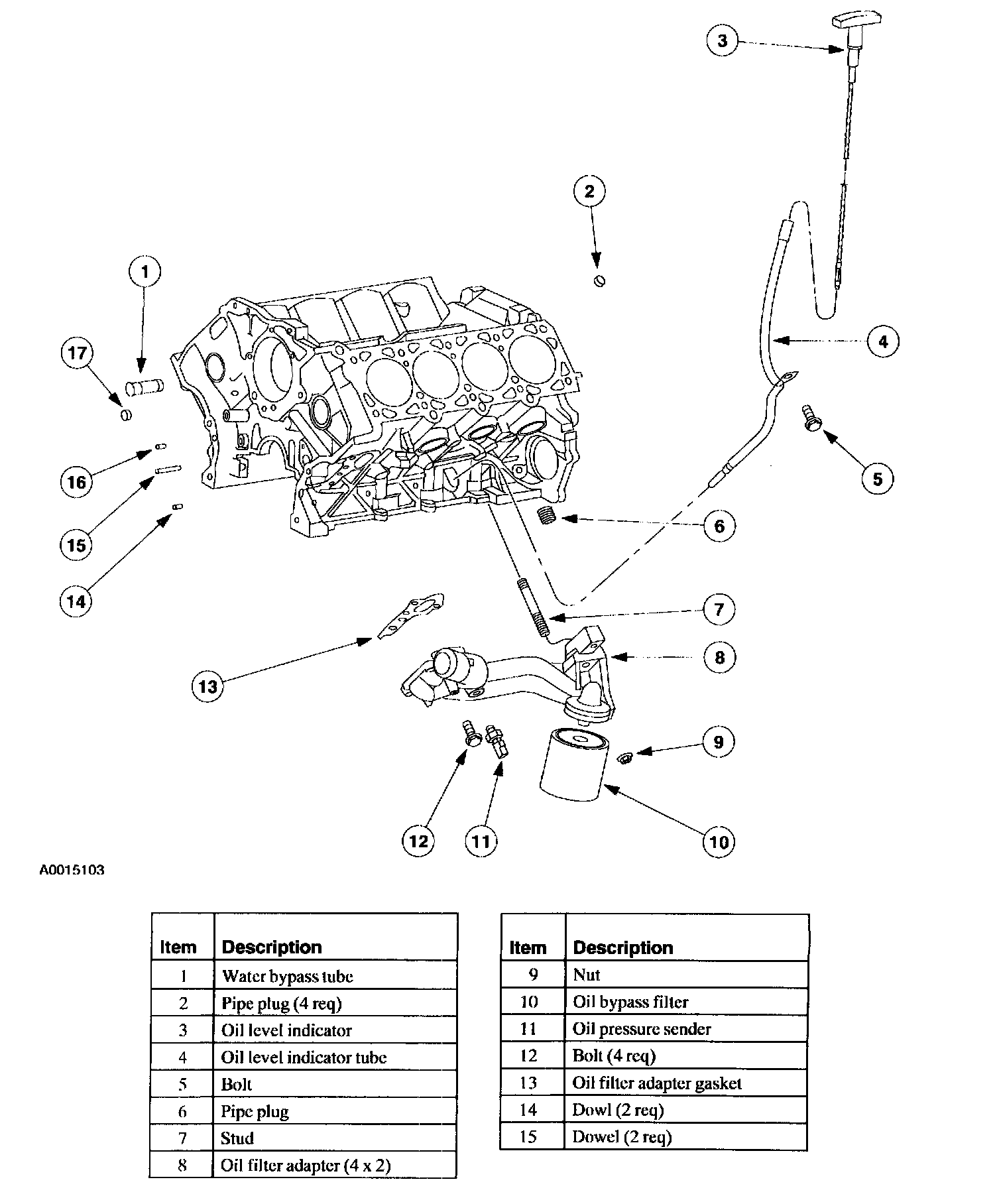

Cylinder Block

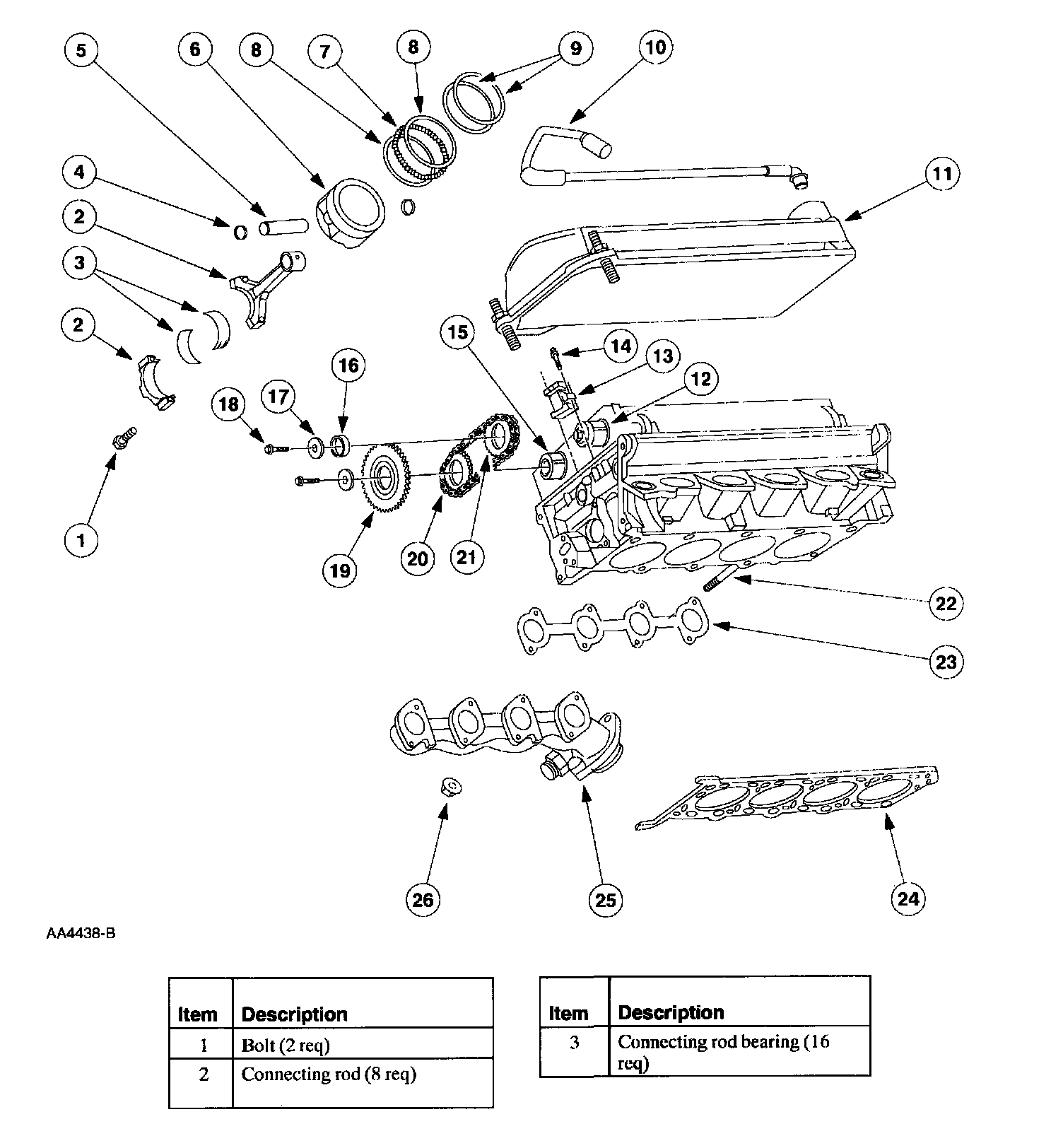

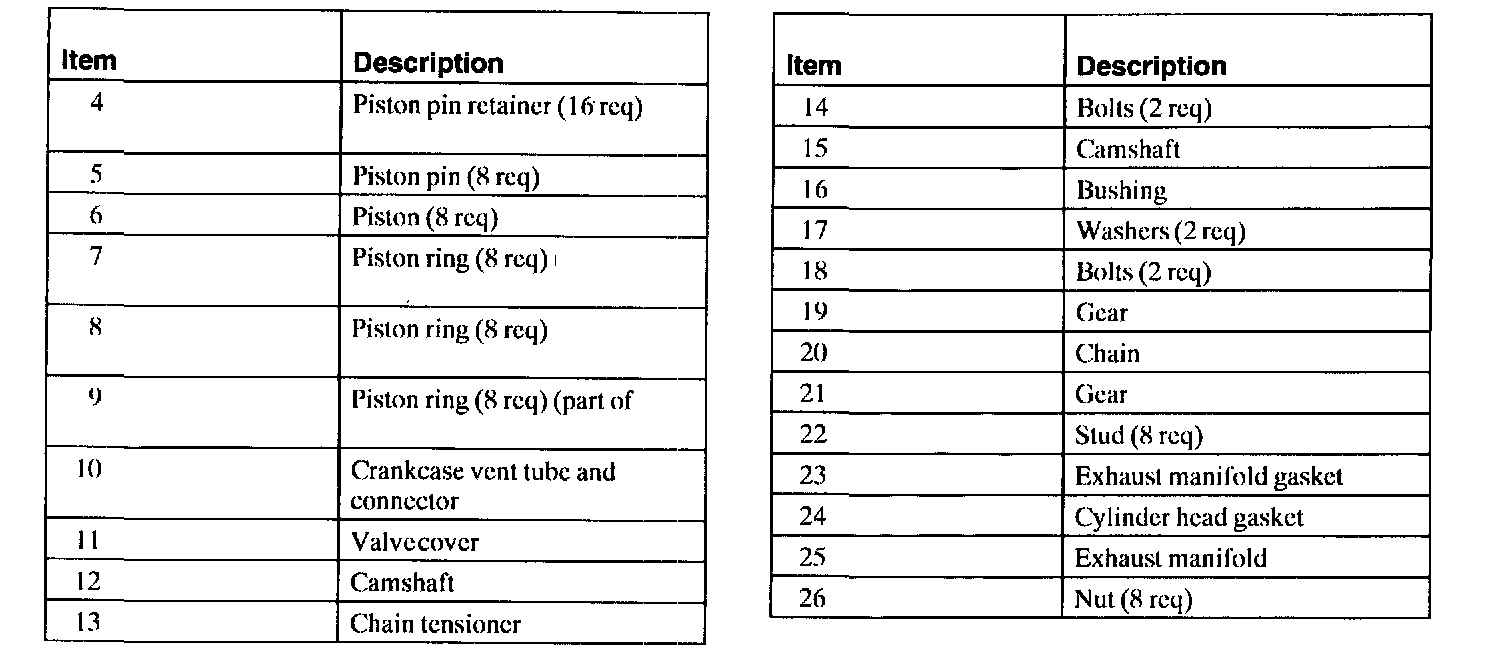

Cylinder Head/Piston

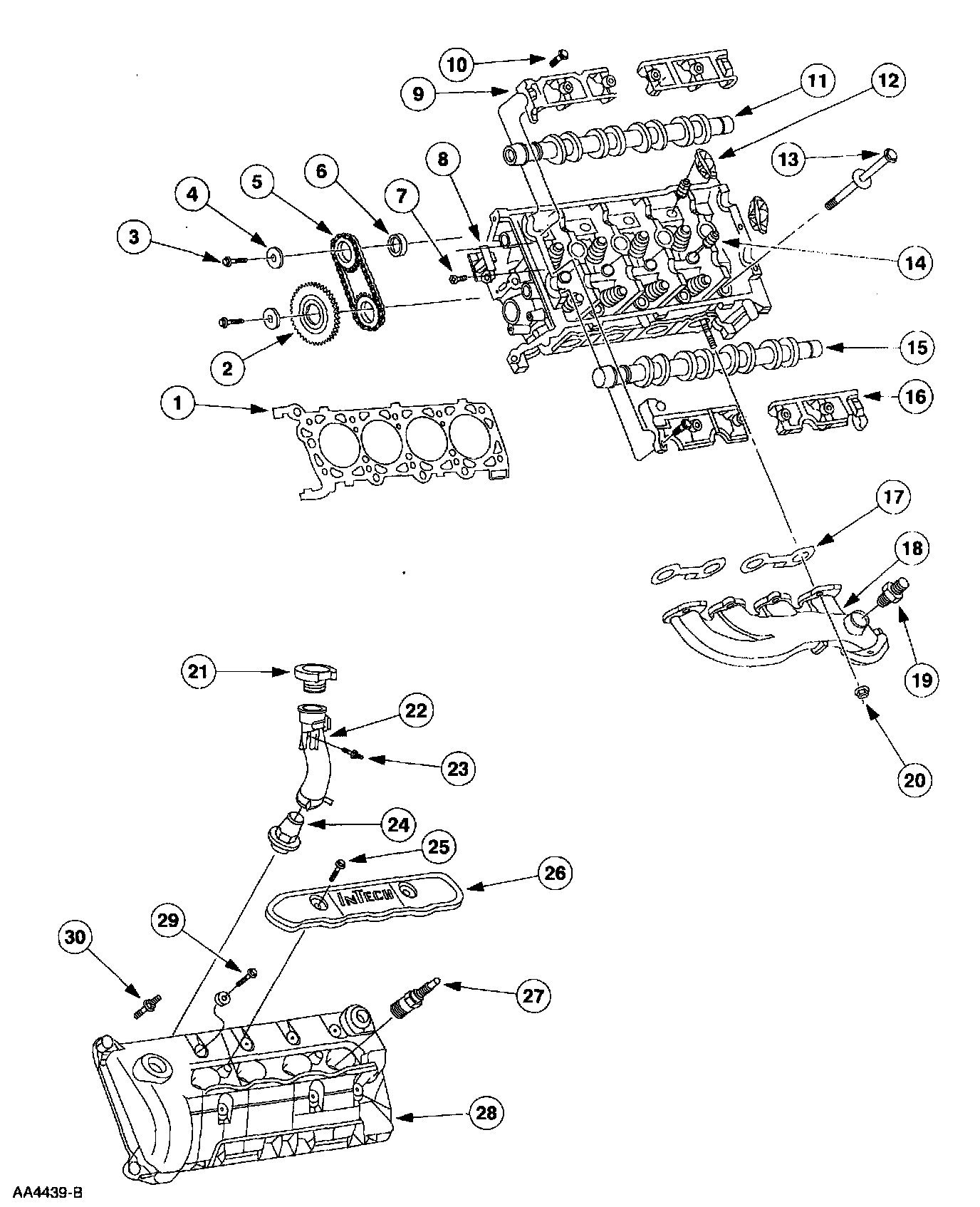

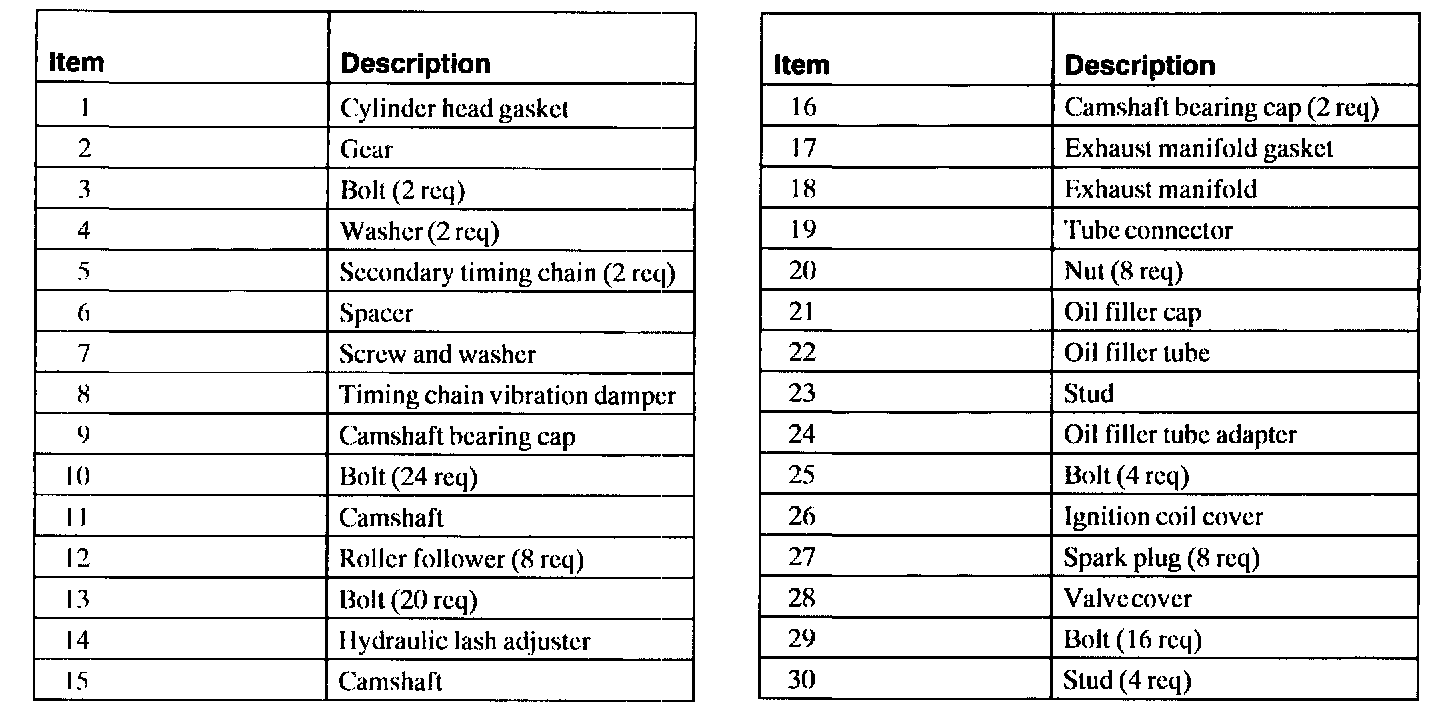

Cylinder Head

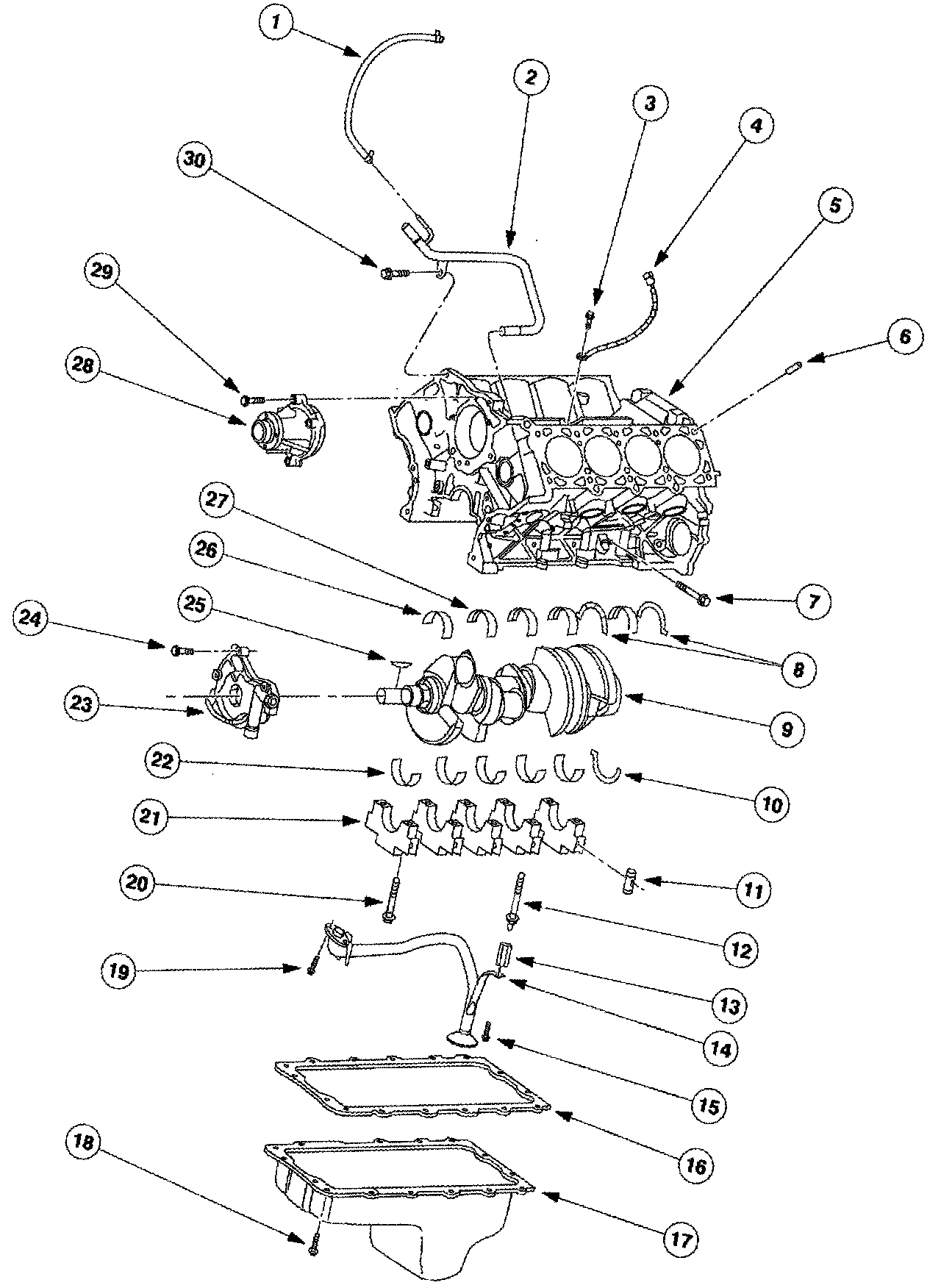

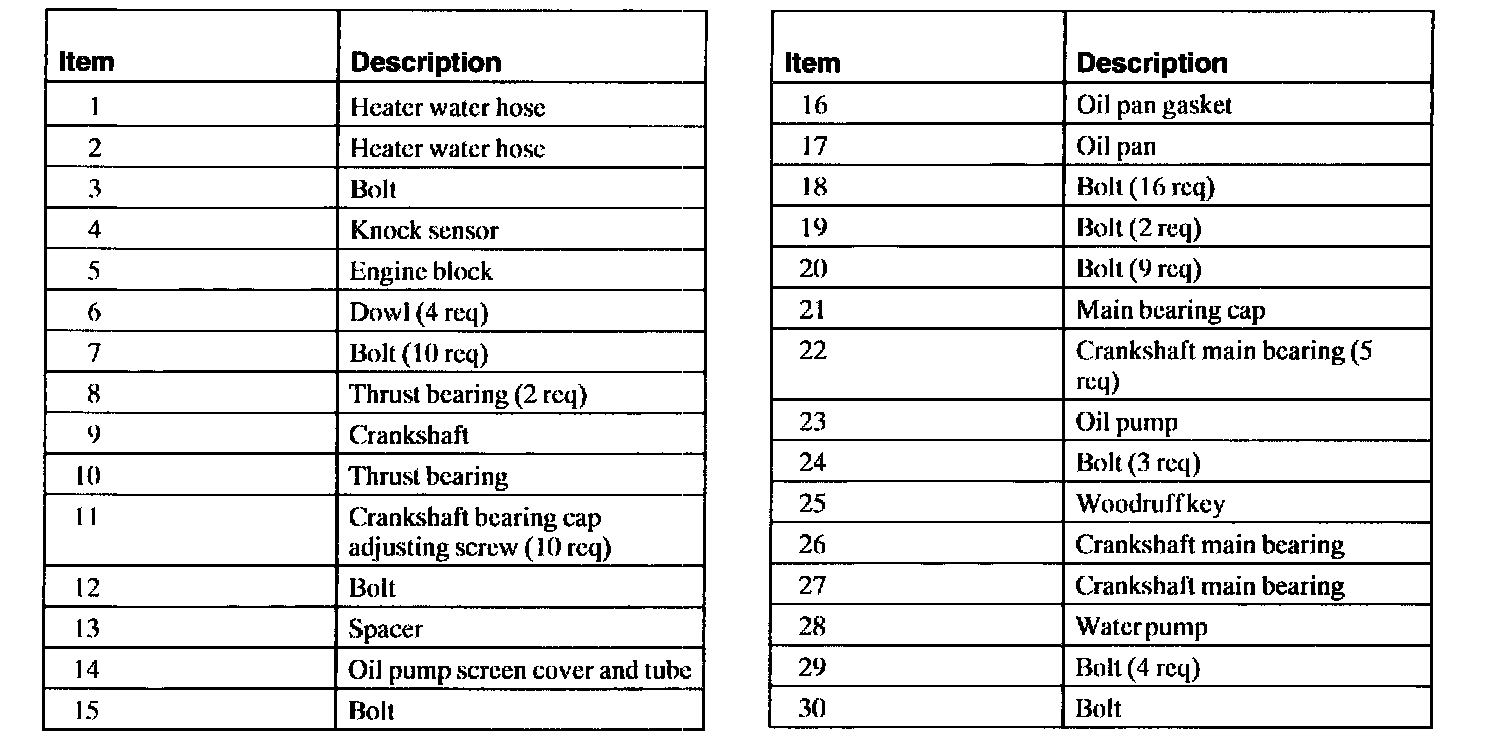

Lower End

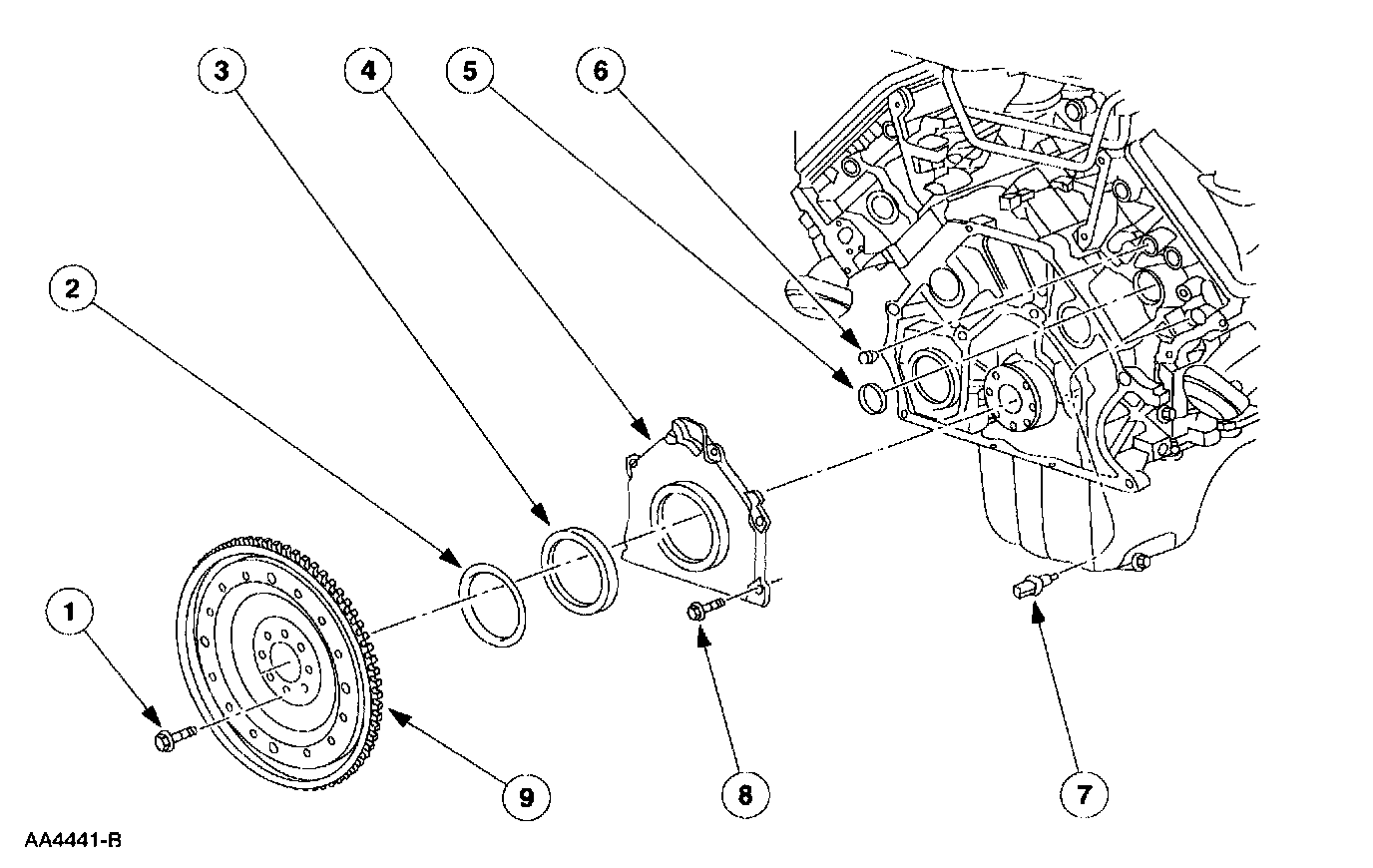

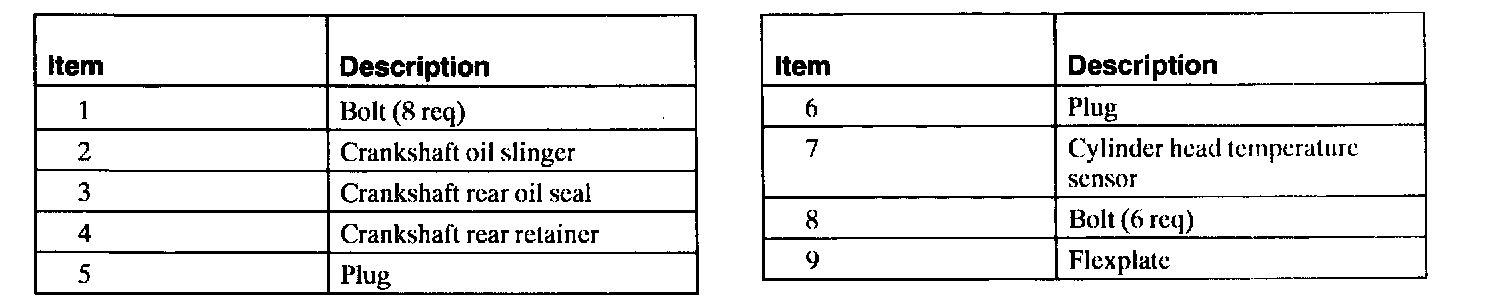

Flex Plate/Rear Seal
