Axle Nut

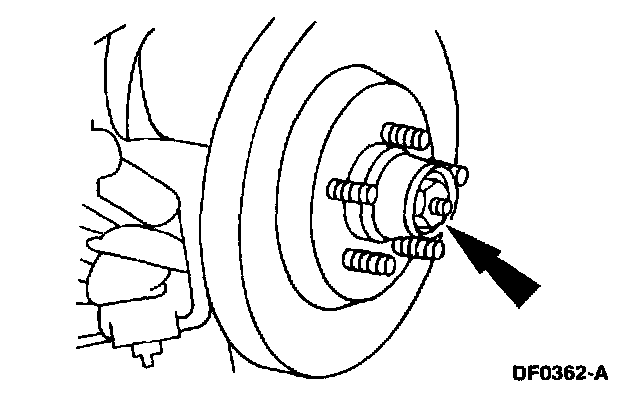

- Install the spindle nut.

Note: The brake disc and hub should be rotated while adjusting front wheel bearing end play.





- Tighten the spindle nut to 40 Nm (30 ft lbs).





- Loosen the spindle nut two turns.





- Tighten the spindle nut to 23-34 Nm (17-24 ft lbs) while rotating the brake disc counterclockwise.





- Loosen the spindle nut 175°.





- Tighten the spindle nut to 2 Nm (17 inch lbs).

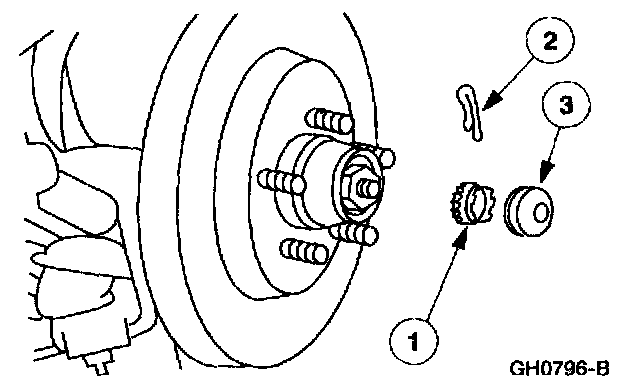

- Install the following components:
1 Install the retainer nut.
2 Install a new cotter pin.
3 Install the hub grease cap.
