Cable and Conduit - Front

Removal





1. Release the parking brake control, using the parking brake release handle.

2. WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can he accomplished by turning off the air suspension switch located in the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Raise the vehicle on a hoist.





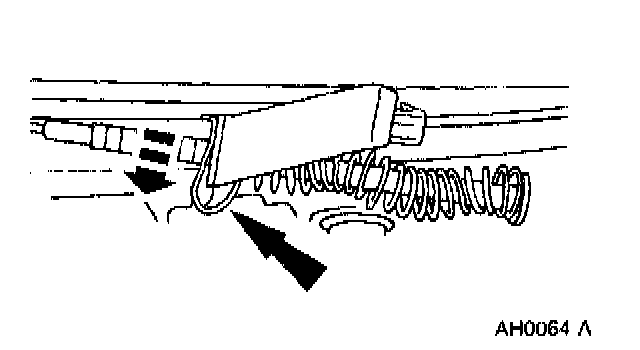

3. Pull the parking brake adjuster clip downward.
4. Apply the parking brake control fully.





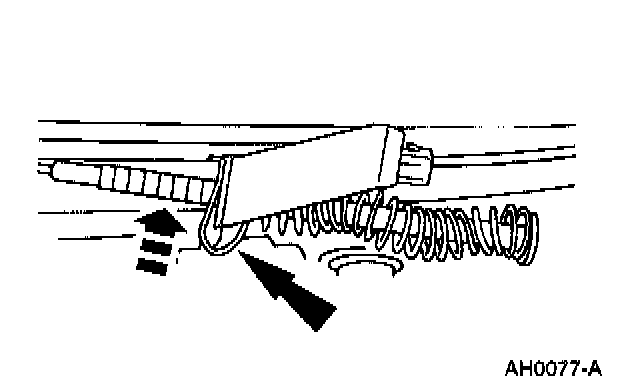

5. Push up on the parking brake adjuster clip to lock the adjuster.





6. Release the parking brake control, using the parking brake release handle.

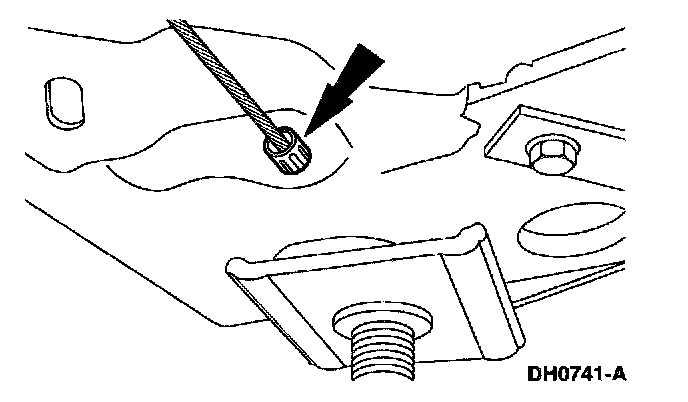

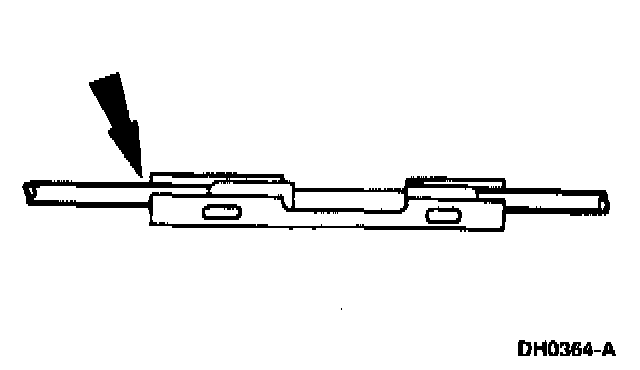

7. Disconnect the front parking brake cable and conduit from the LH parking brake rear cable and conduit at the cable connector.

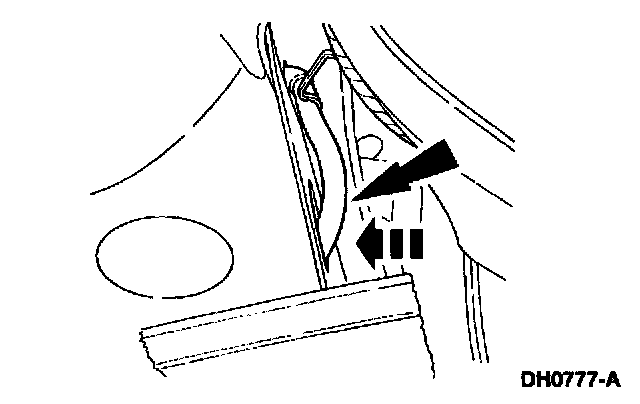

8. Press the retaining tabs, and remove the front parking brake cable and conduit retainer from the frame.





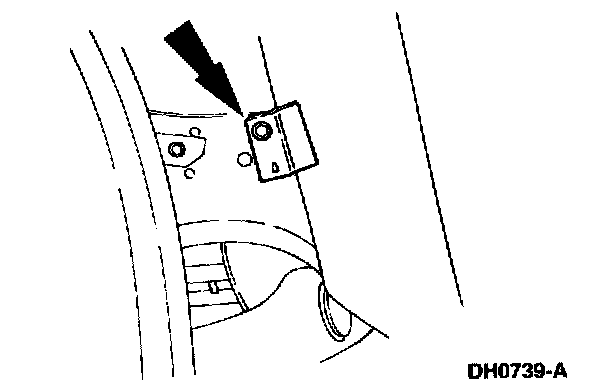

9. Remove the screw retaining the inner front fender apron to the frame.





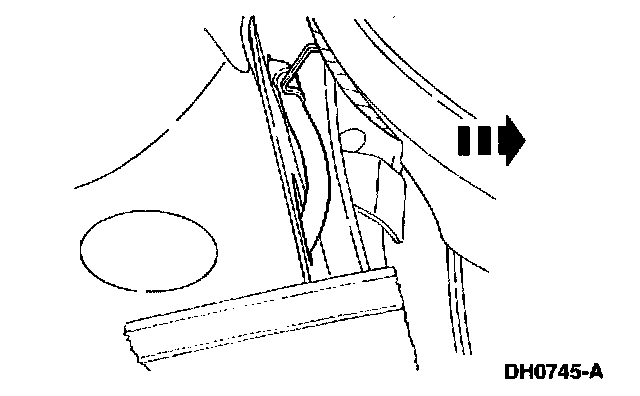

10. Pull back the front fender apron to expose the front parking brake cable and conduit.

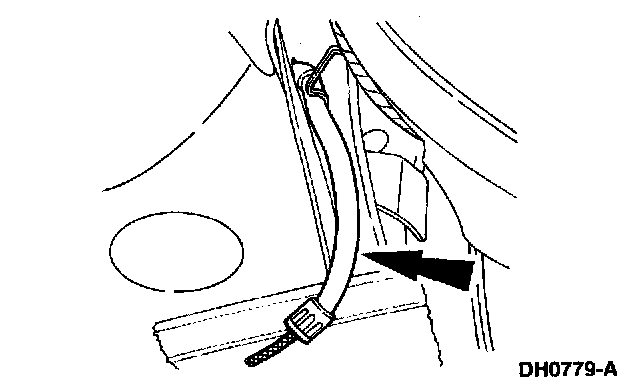

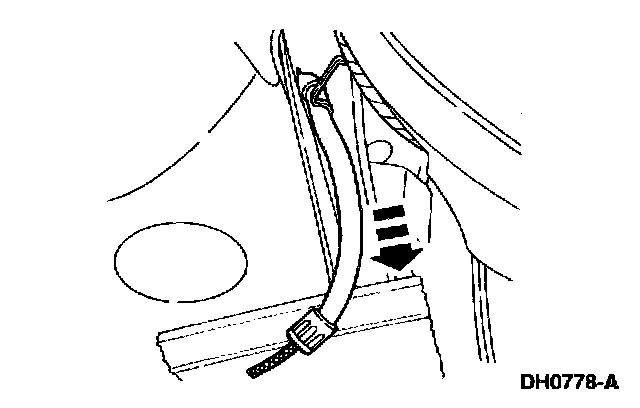

11. Pull the front parking brake cable and conduit through the frame, and let it hang in the wheel housing.
12. Lower the vehicle.





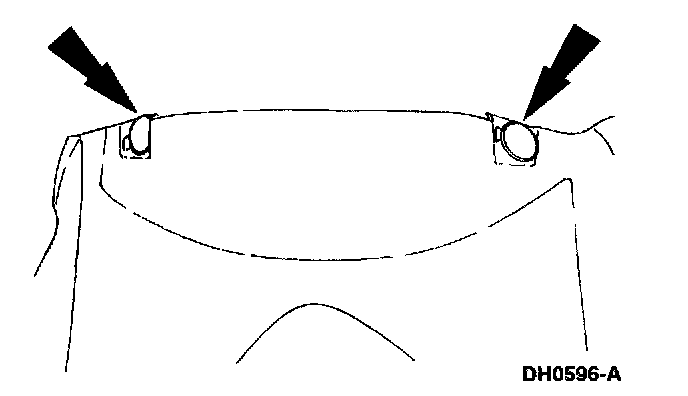

13. Remove the instrument close-out panel pushpins, and remove the panel.





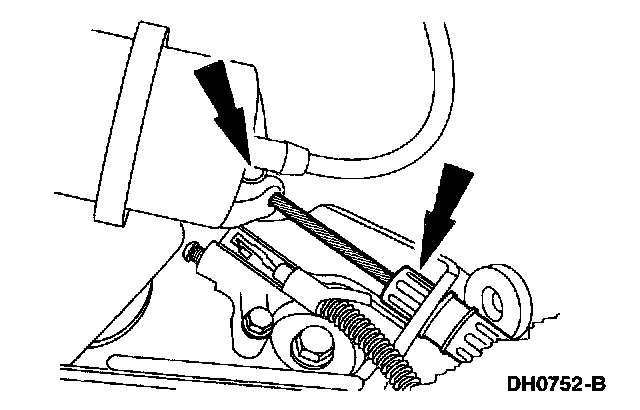

14. Disconnect the front parking brake cable and conduit from the parking brake control.





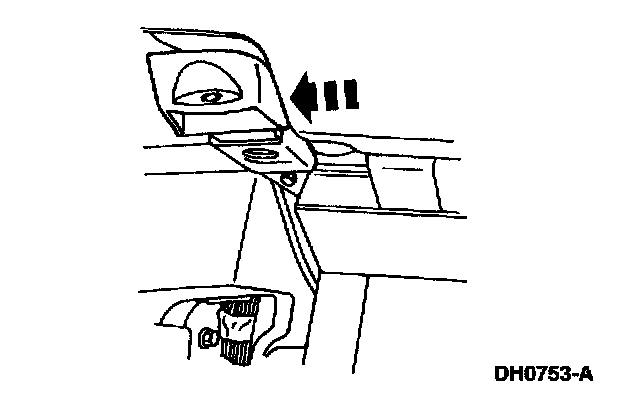

15. Push the front parking brake cable and conduit down, and remove the front parking brake cable and conduit from inside the wheel housing.

Installation

1. Install the front parking brake cable and conduit through the dash panel from inside the wheel housing.





2. Connect the front parking brake cable and conduit to the parking brake control.





3. Install the instrument close-out panel and the pushpins.
4. Raise the vehicle.





5. Install the front parking brake cable and conduit through the frame.





6. Position the front fender apron, and install the retaining screw.





7. Install the front parking brake cable and conduit retainer to the frame.





8. Connect the front parking brake cable and conduit to the LH parking brake rear cable and conduit at the cable connector.
9. Adjust the cable tension.
10. Turn the air suspension switch on.
