Air Cleaner Housing: Service and Repair

REMOVAL

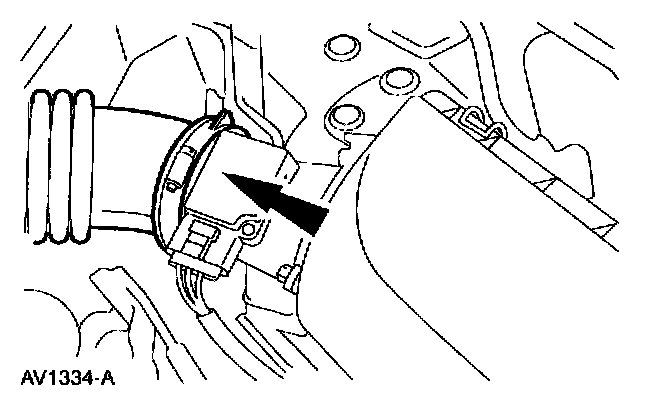

1. Loosen the air cleaner outlet tube and resonator assembly clamp and disconnect from the Mass Air Flow sensor (MAF sensor).

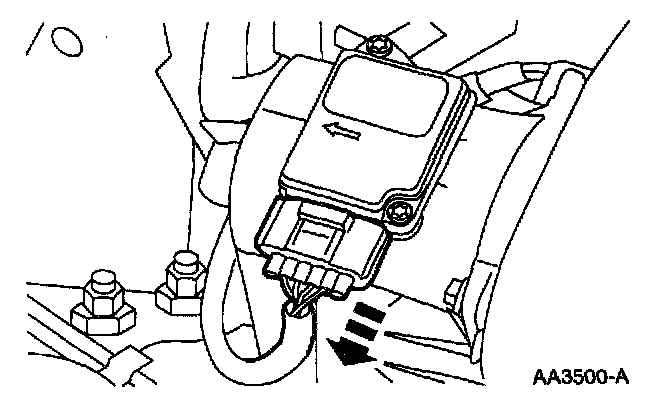

2. Disconnect the connector from the mass air flow sensor.







3. Disconnect the Intake Air Temperature sensor (IAT) electrical connector.







4. Remove the nuts and the engine Air Cleaner (ACL).

INSTALLATION
1. To install, reverse the removal procedure.
