EGR Tube: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

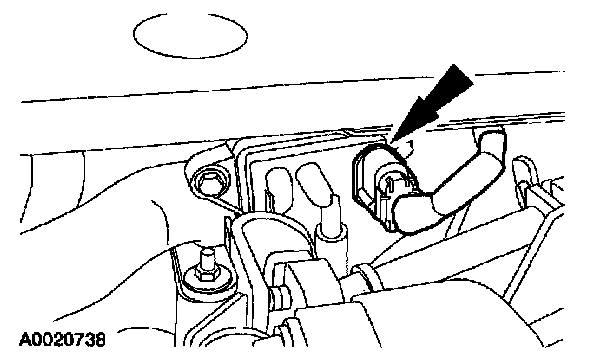

2. Remove the cabin air filter.

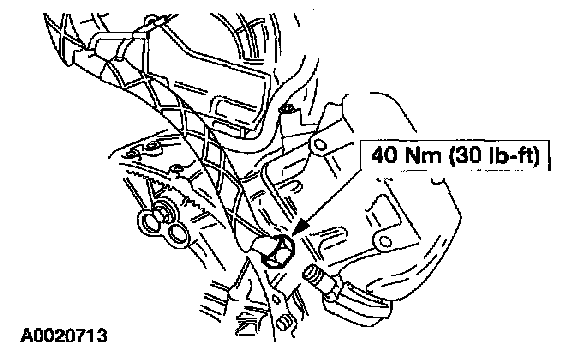

3. Disconnect the Exhaust Gas Recirculation (EGR) tube from the exhaust manifold.
^ Loosen the compression nut.

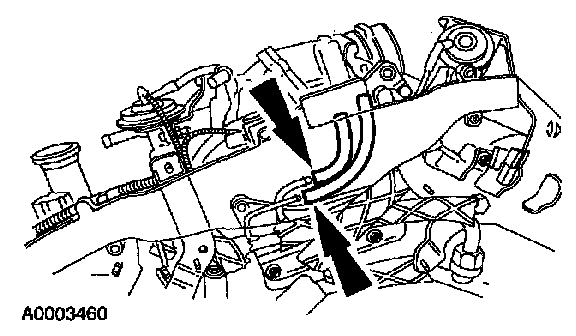

4. Disconnect the Differential Pressure Feedback EGR (DPFE) hoses.







5. Disconnect the DPFE electrical connector.

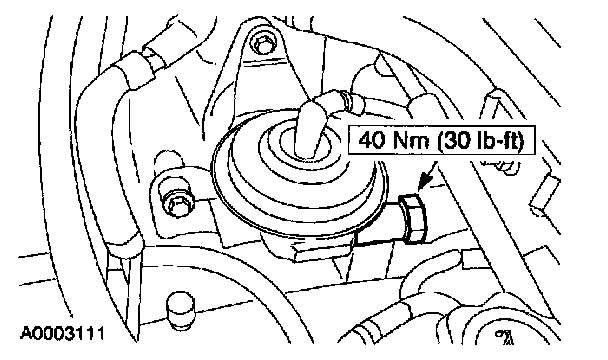

6. Disconnect the EGR tube from the EGR valve.
^ Loosen the compression nut.







7. Disconnect the accelerator and speed control cables.

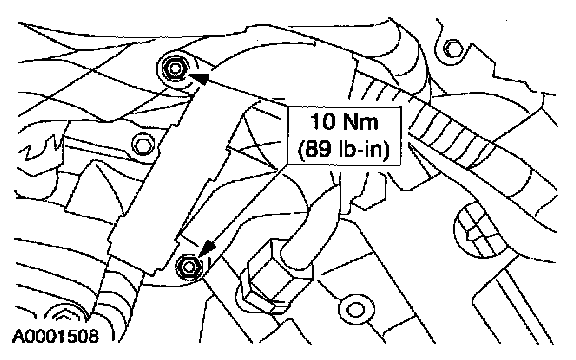

8. Position the wire harness bracket aside.
^ Remove the nuts.

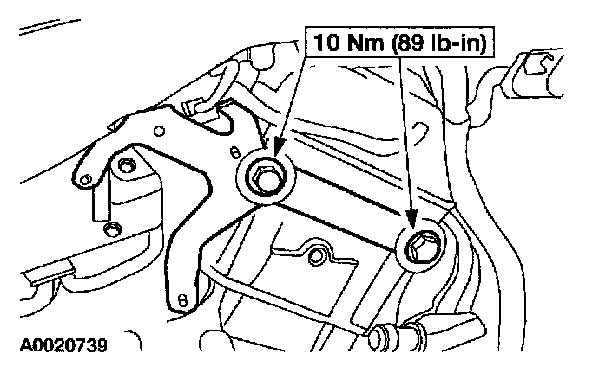

9. Position the bracket aside.
^ Remove the bolts.
10. Remove the EGR tube from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.
