Quarter Window Glass: Service and Repair

REMOVAL
1. Remove the rear door window glass.
2. Remove the rear door glass run and the exterior moulding at the top of the glass.

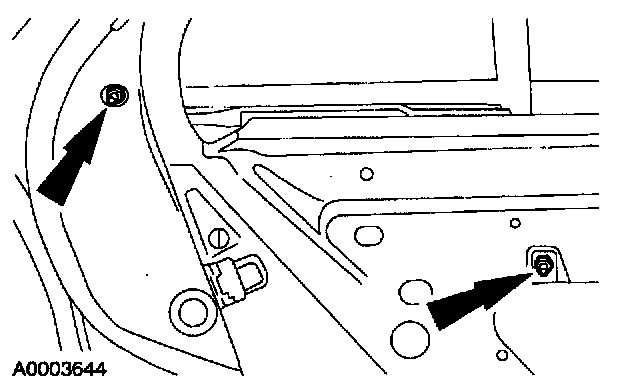

3. Remove the quarter window glass nuts.

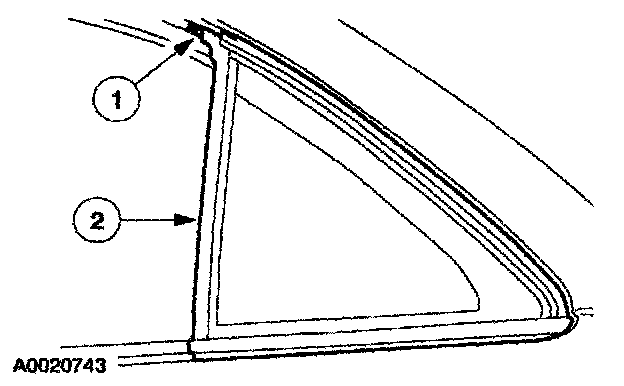

4. Remove the quarter window glass
1 Remove the screw.
2 Remove the quarter window glass.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE:
^ If reinstalling the original quarter glass, clean off any remaining butyl prior to installation.
^ Clean the area of any remaining foam or residue prior to installation of the quarter window glass
^ Apply the new butyl to the installation area.
