Heater Core: Service and Repair

REMOVAL

NOTE: If a heater core leak is suspected, the heater core must be leak tested before it is removed from the vehicle.

1. Remove the plenum chamber.

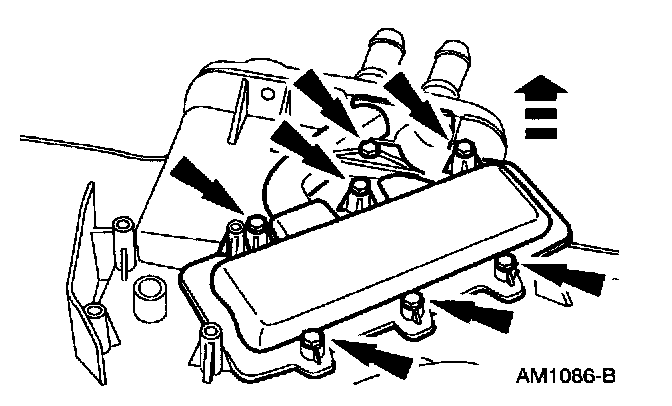

2. Remove the screws and the heater core cover.







3. Remove the seal.

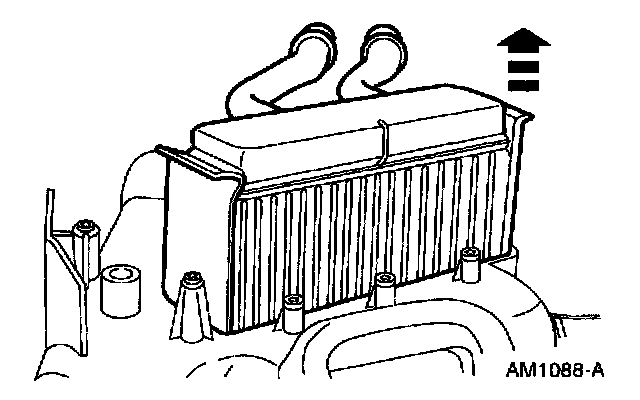

4. Remove the heater core.

INSTALLATION

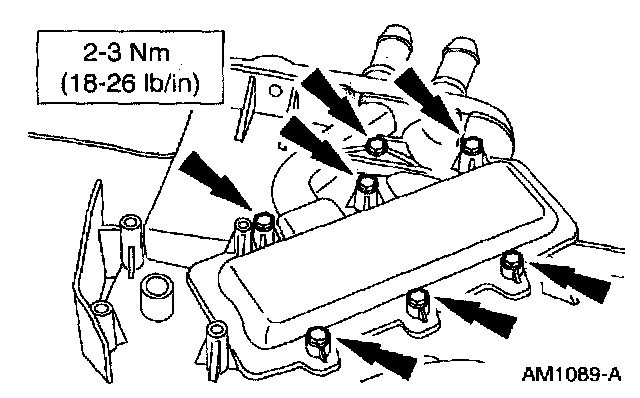

1. To install, reverse the removal procedure.
