Connector Locations

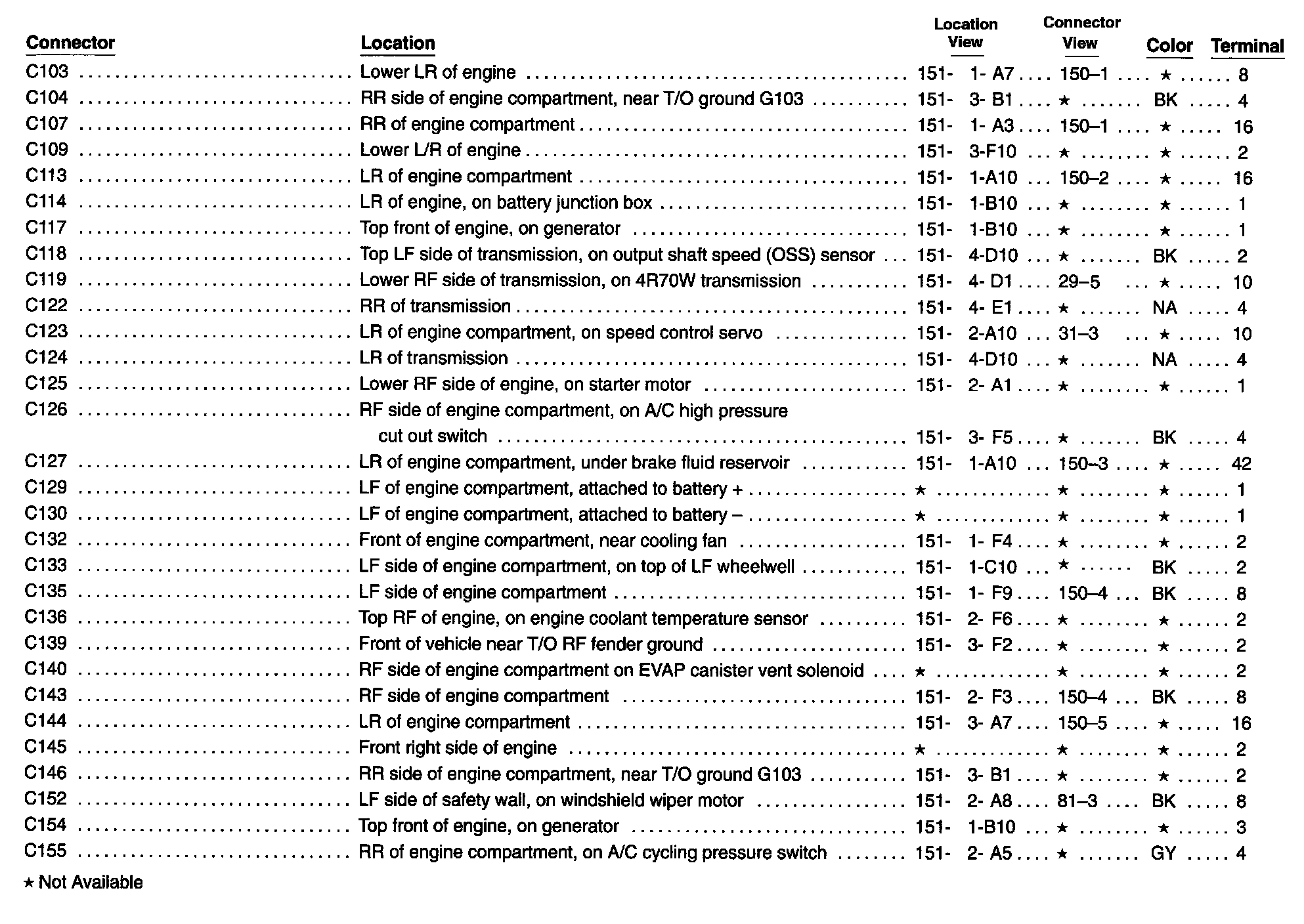

C103 - C155:

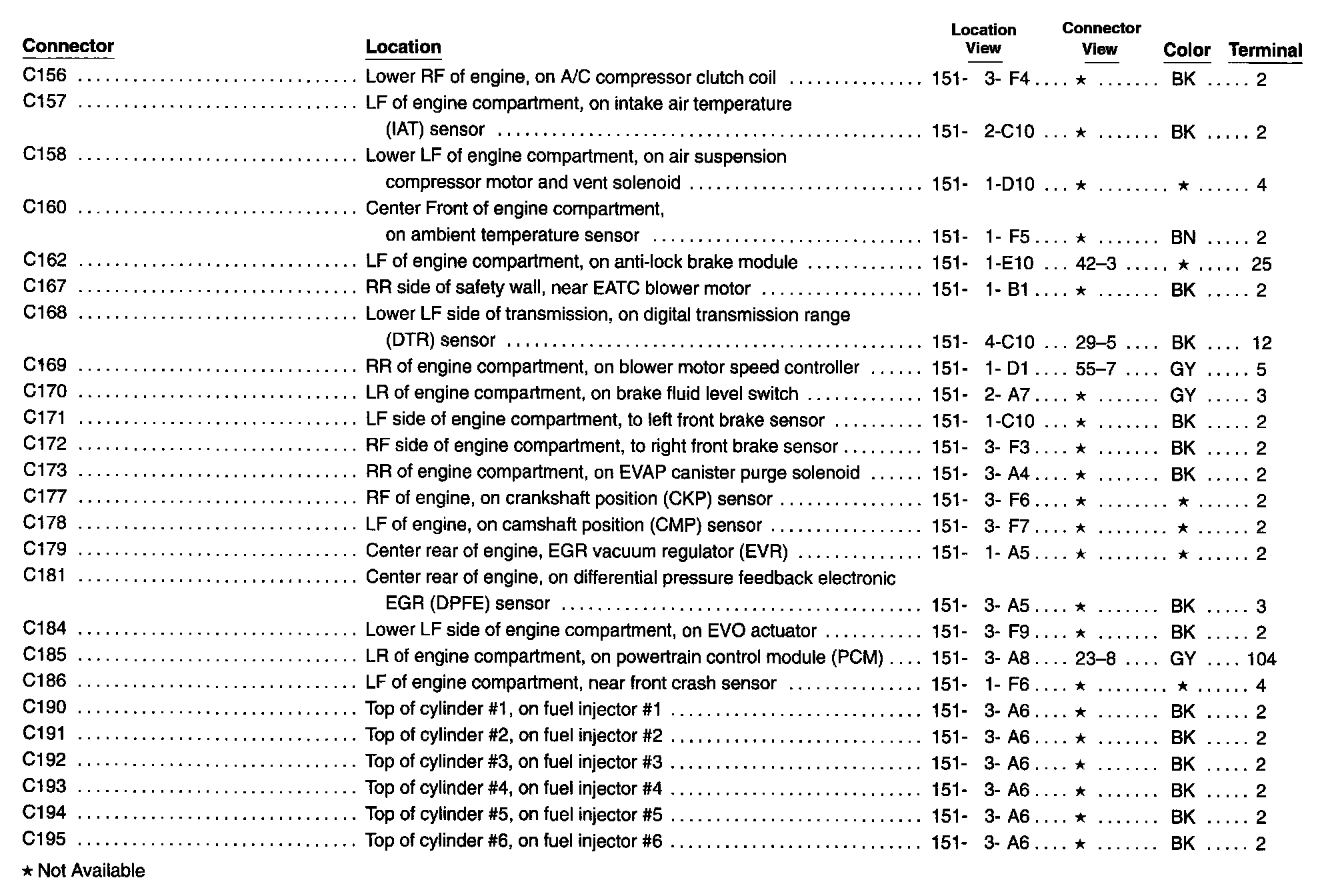

C156 - C195:

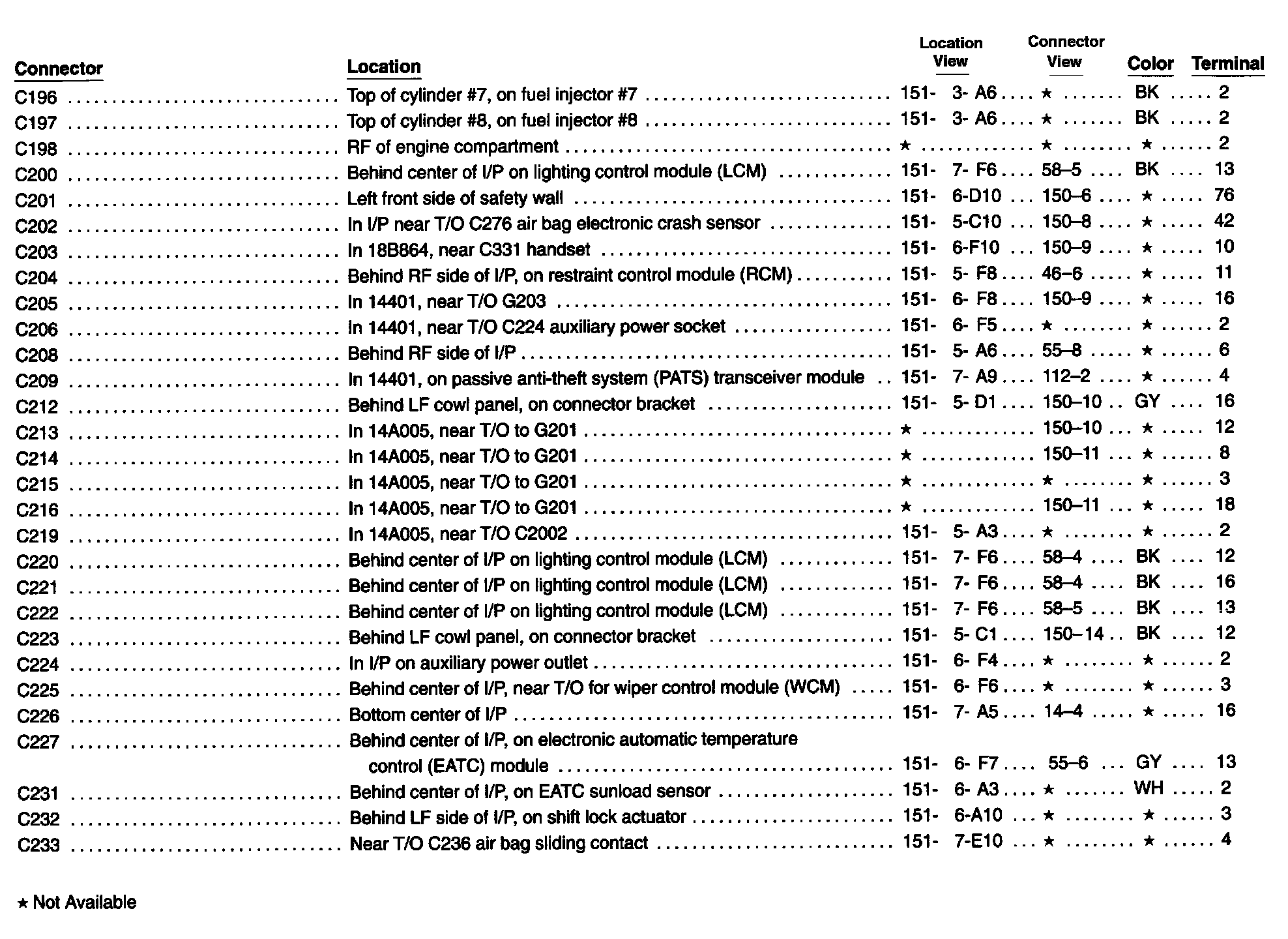

C196 - C233:






C234 - C298:






C299 - C332:

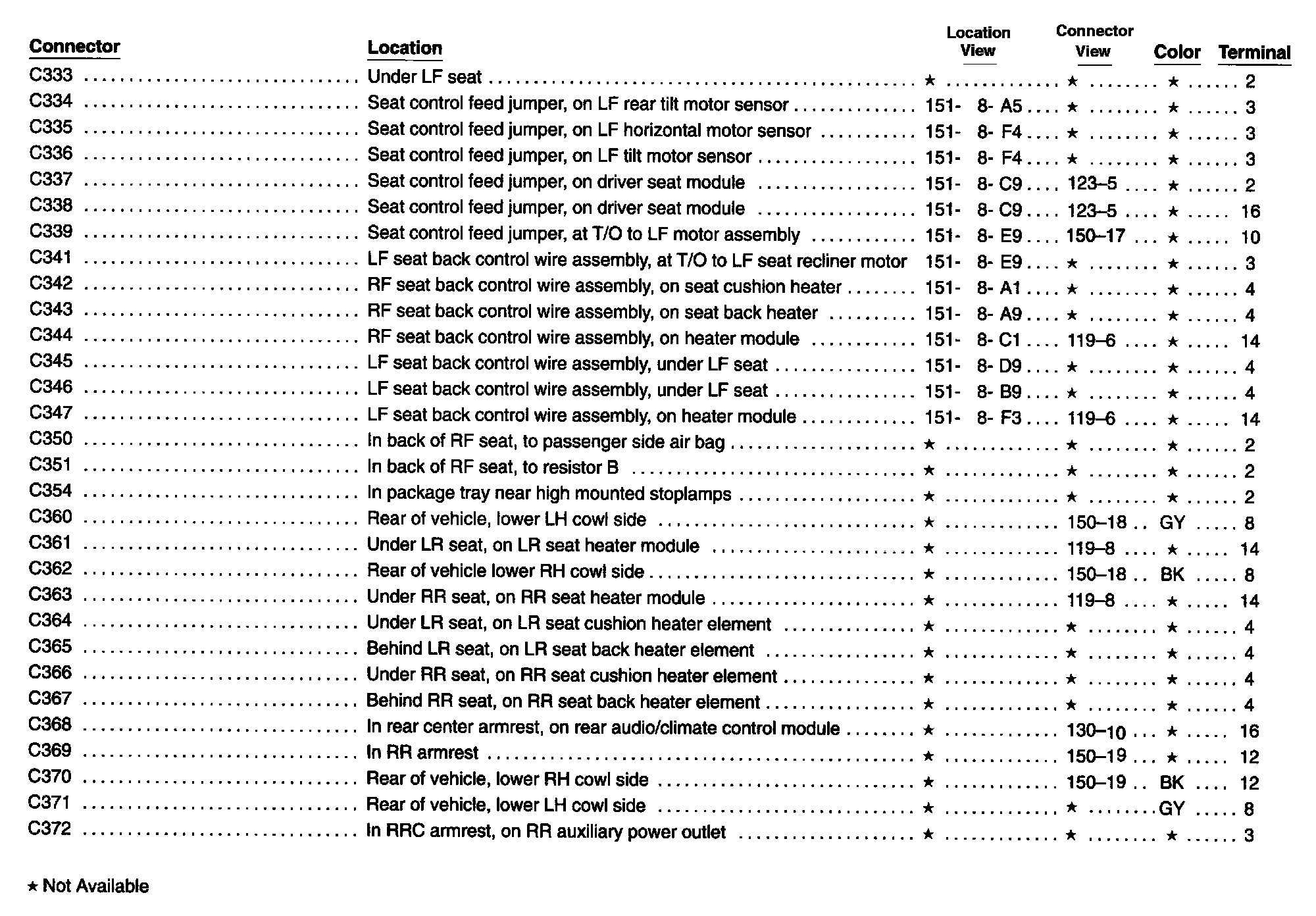

C333 - C372:

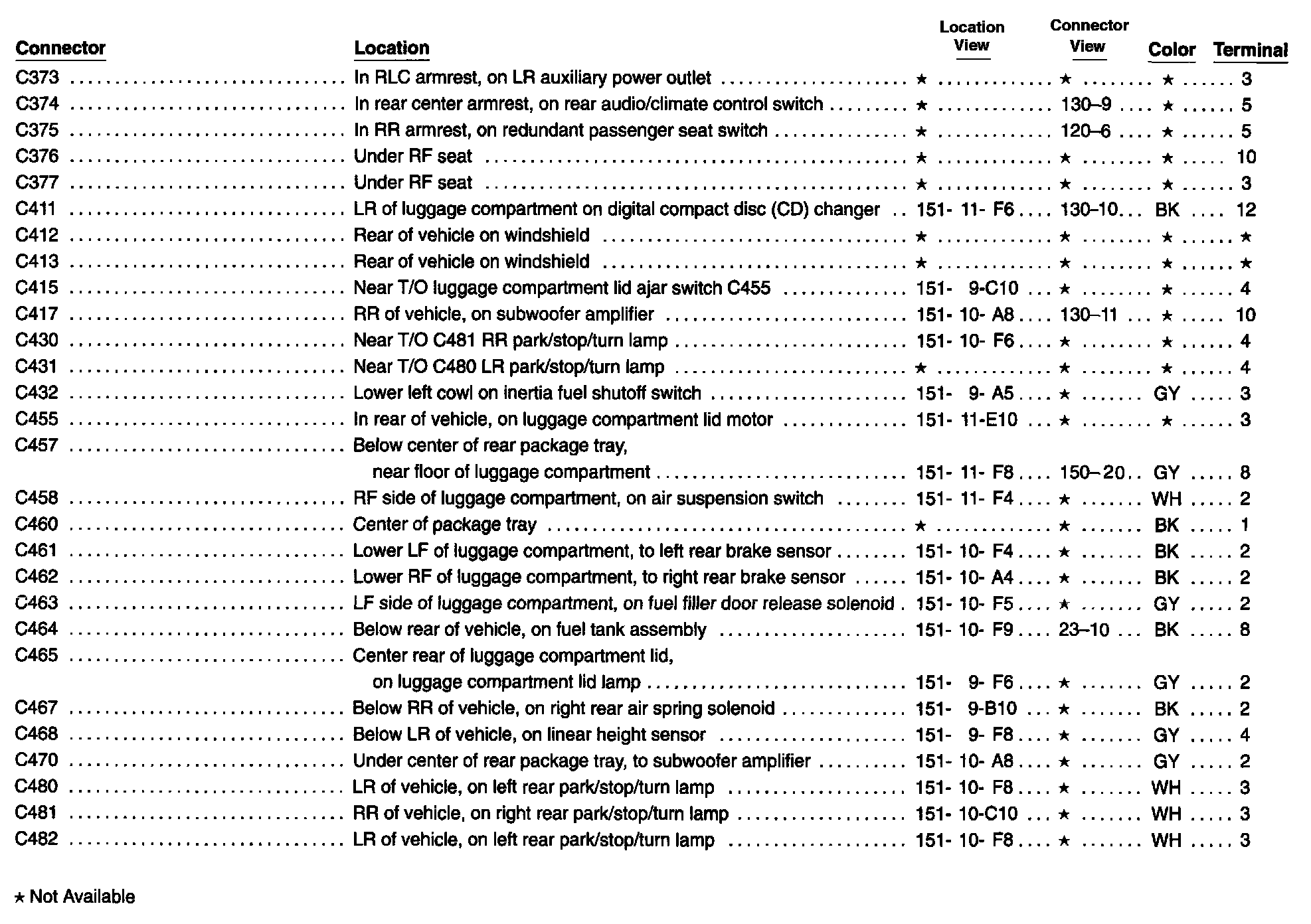

C373 - C482:






C483 - C521:






C522 - C711:

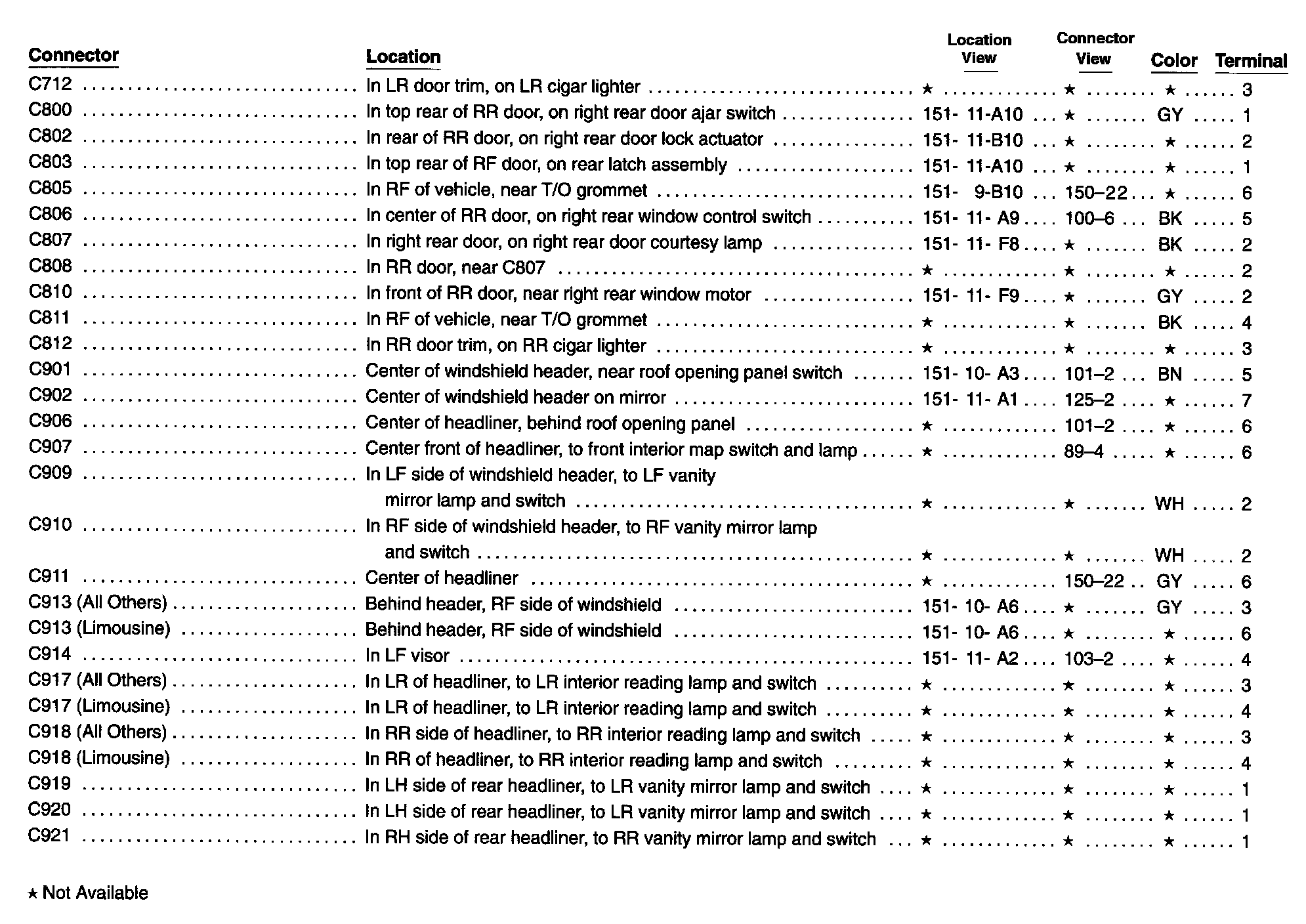

C712 - C921:

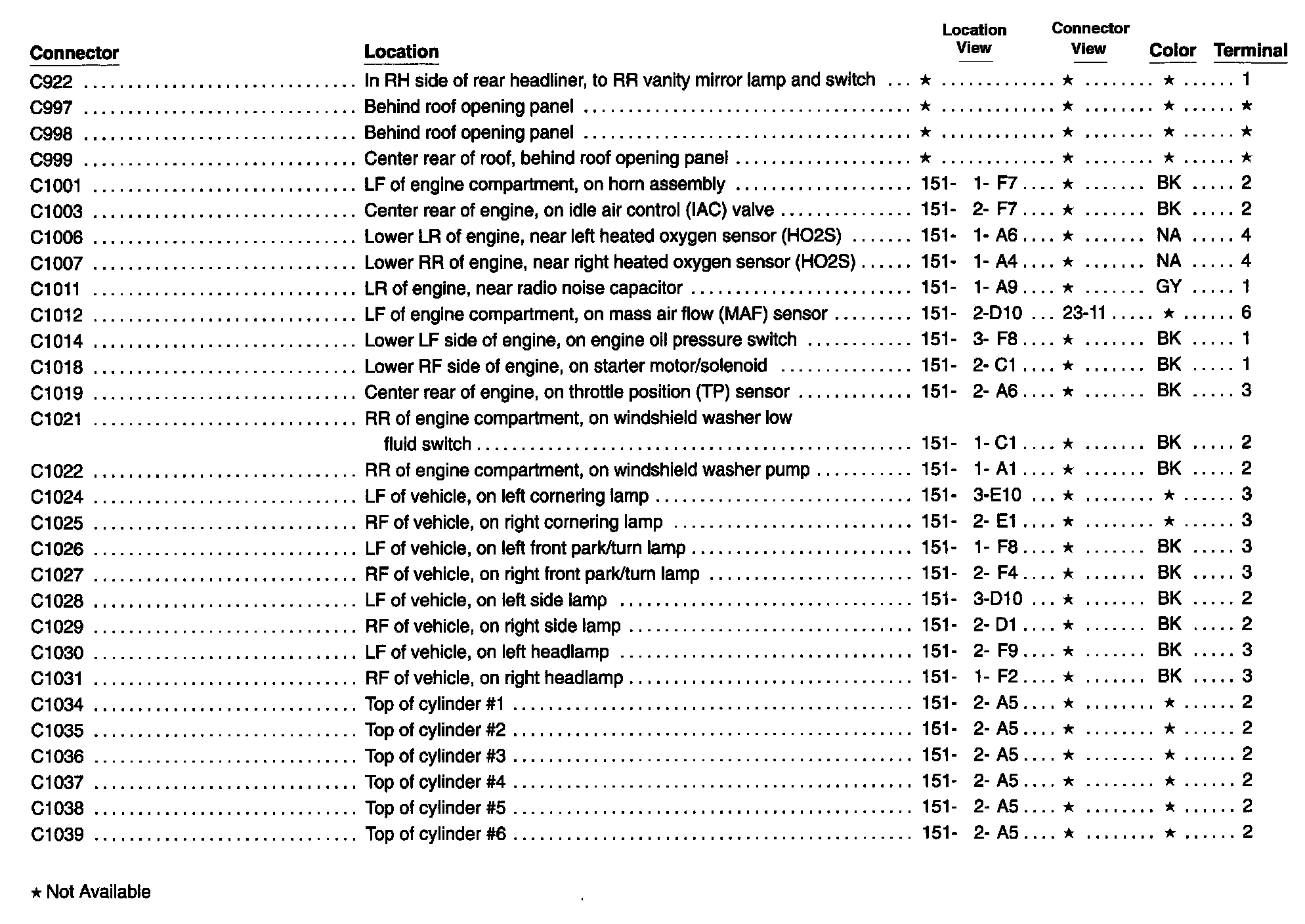

C922 - C1039:

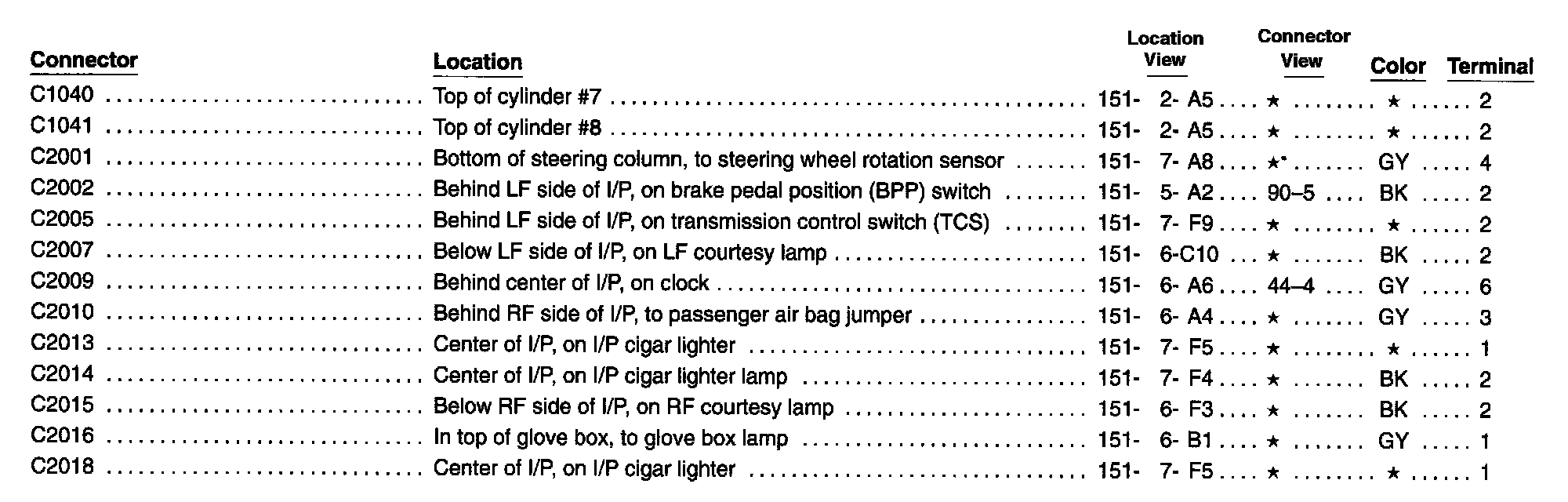

C1040 - C2018:
