Cruise Control Servo Cable: Service and Repair

SPEED CONTROL CABLE

REMOVAL

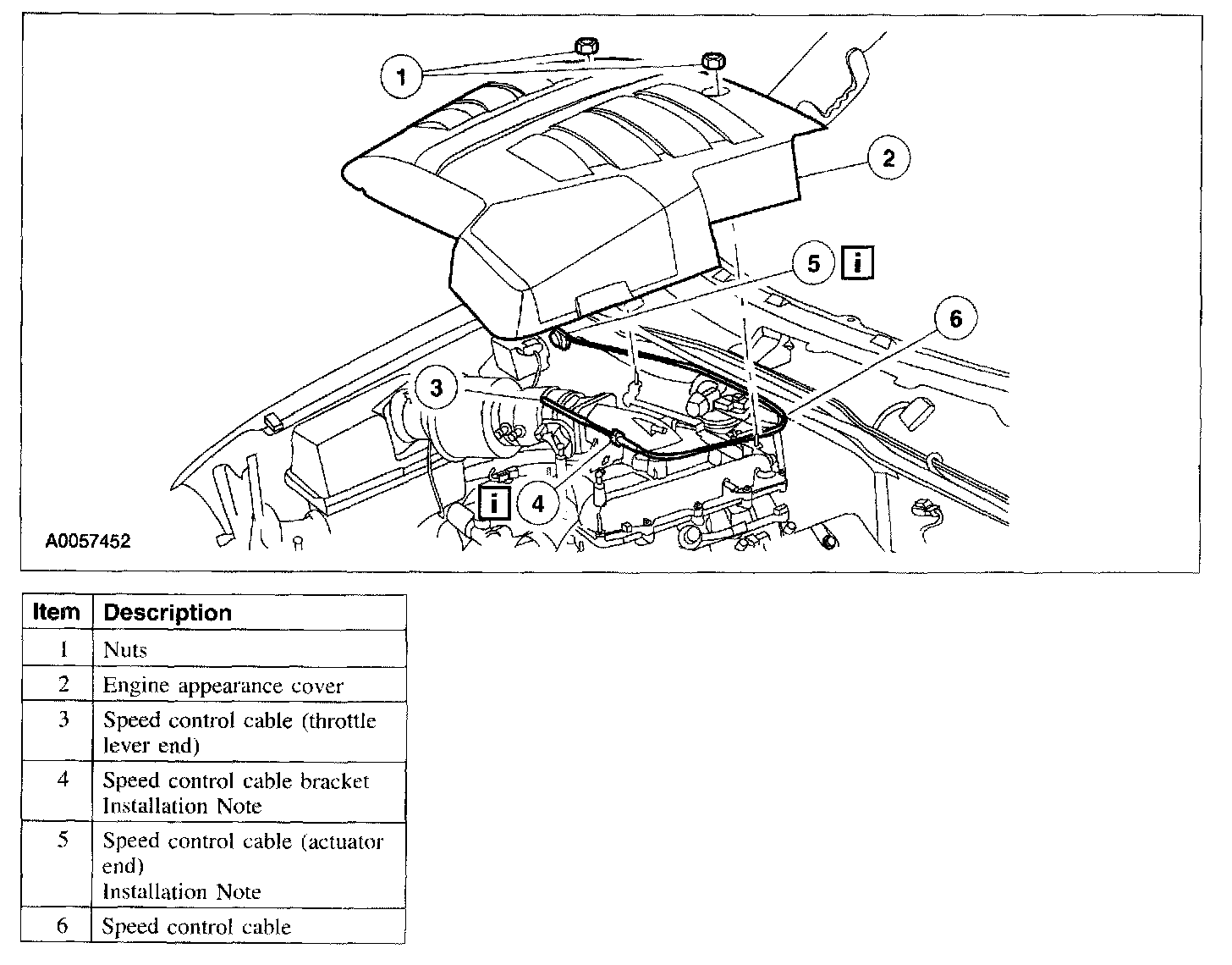

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: Speed Control Cable Bracket Installation Note
1. Make sure the tabs on the speed control cable are locked in place and cable is fully seated in accelerator bracket.

Item 5: Speed Control Cable Installation Note
1. Make sure the rubber seal is fully seated onto the speed control cable cap.
