Receiver Drier

RECEIVER DRIER

NOTE:
- Installation of a new receiver/drier is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier.
- New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C fitting which has been disconnected.

REMOVAL
1. Position the vehicle on a hoist with the gear selector in NEUTRAL.
2. Recover the refrigerant.

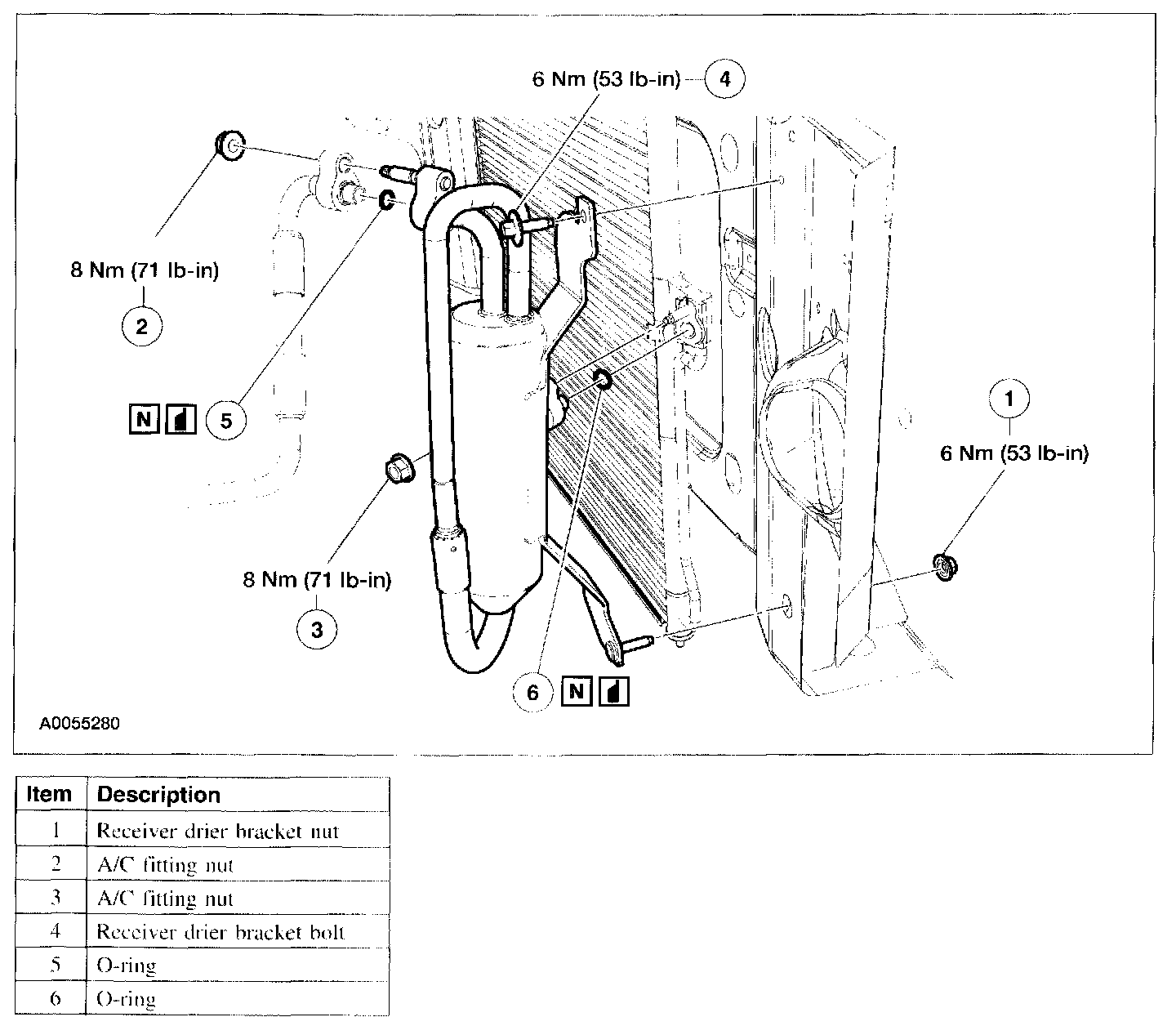

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install reverse the removal procedure
2. Lubricate the refrigerant system with the correct amount of clean PAG oil.
3. Evacuate, leak test and charge the refrigerant system.
