Exhaust Gas Recirculation: Service and Repair

Exhaust Gas Recirculation (EGR) Valve
1. Remove the engine cover.
2. Remove the RH front wheel and tire assembly.

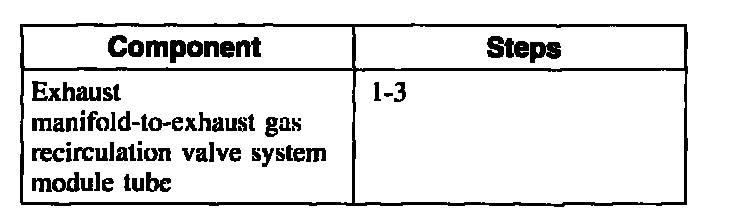

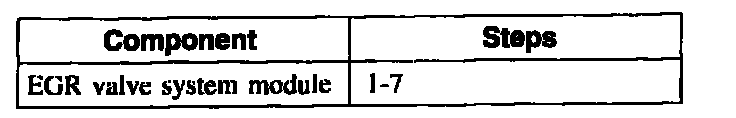

3. To remove individual components, carry Out only the listed steps.

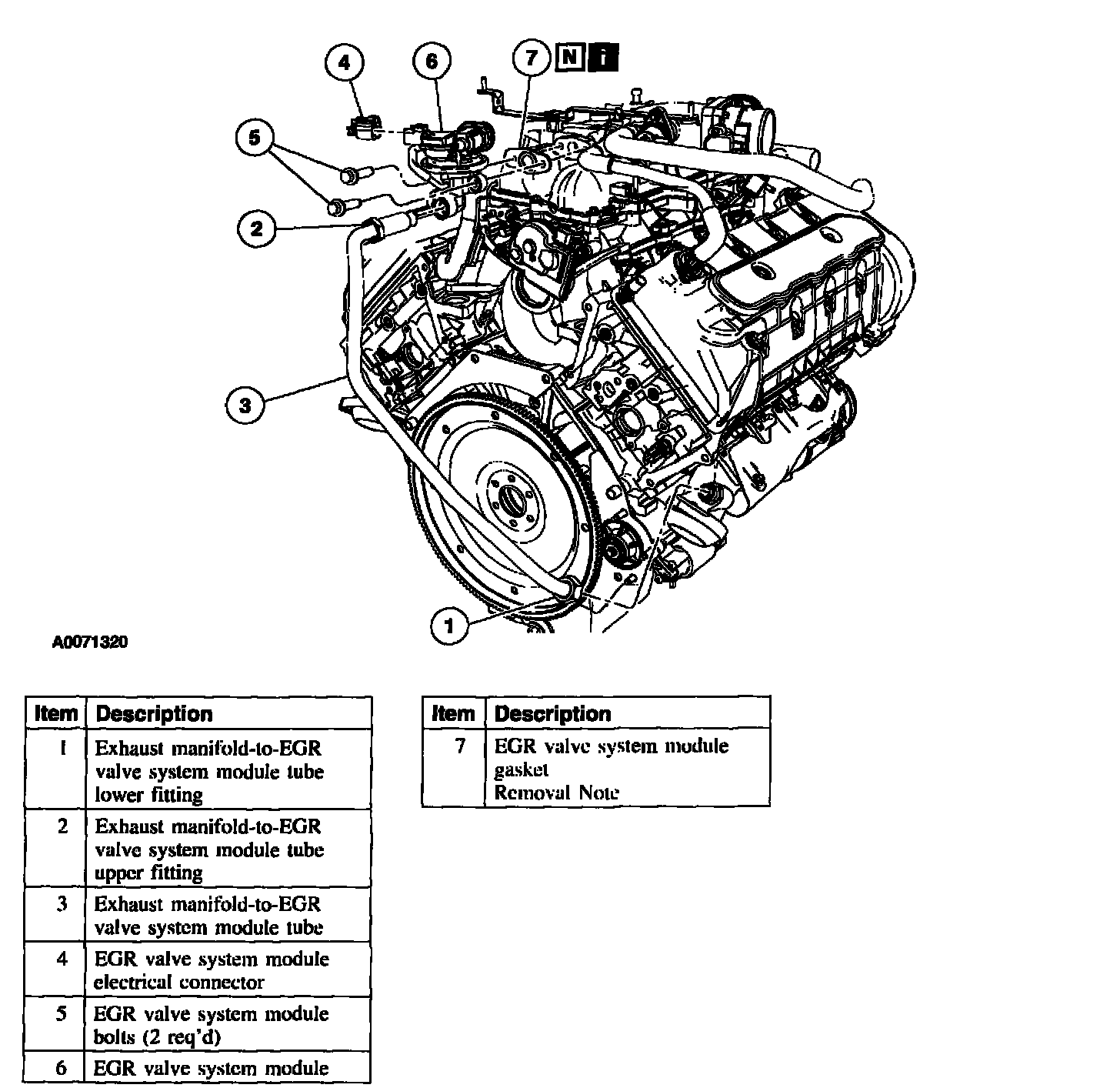

4. Remove the components in the order indicated in the illustration and table.
5. To install. reverse the removal procedure.

Item 7: EGR Valve System Module Gasket Removal Note

1. NOTE: The EGR valve sealing Surfaces are soft metals.

Carefully clean the EGR sealing surfaces.
