Liftgate Window Glass: Service and Repair
LIFTGATE WINDOW GLASS

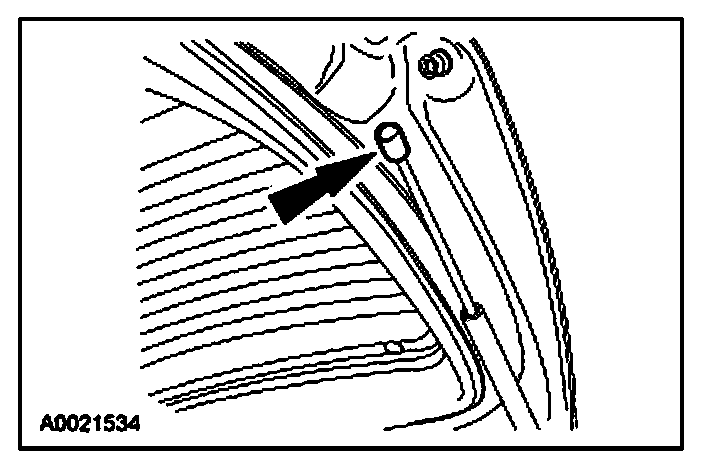

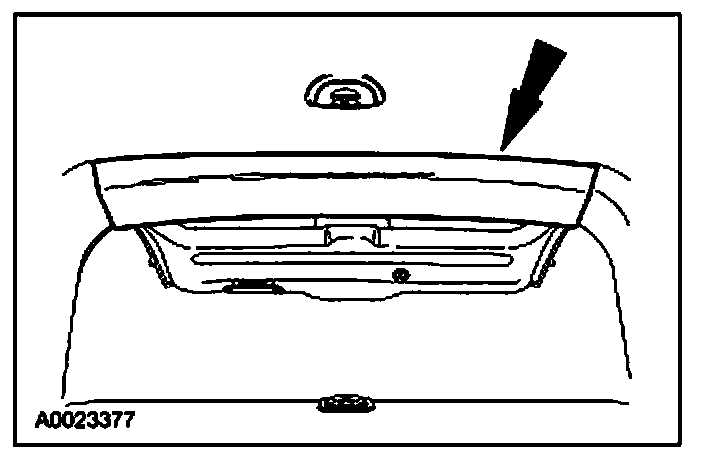

1.
Remove the upper
headliner
trim panel
.
2.

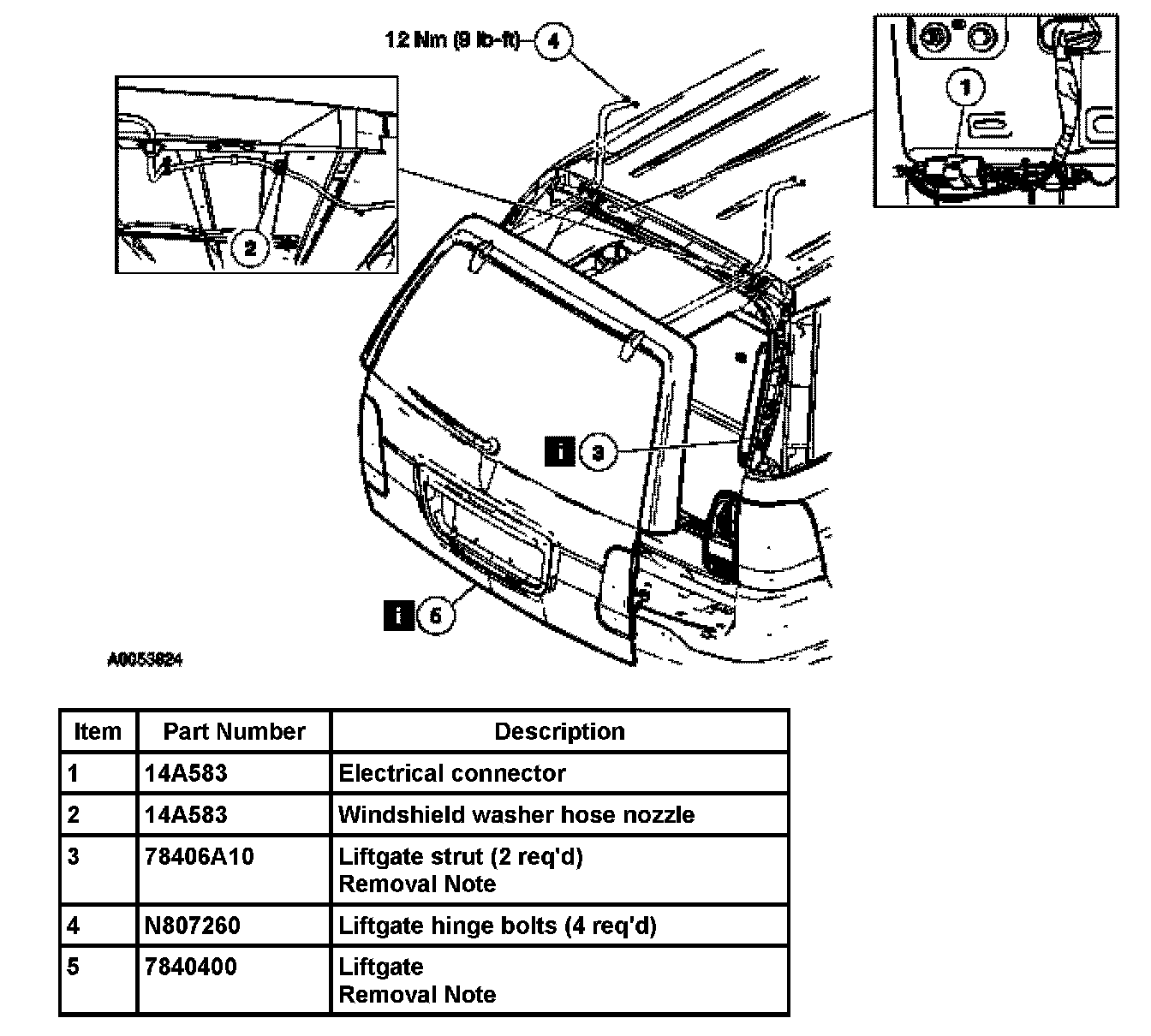

Remove the parts in the order indicated in the following illustration and table.
3.
To install, reverse the removal procedure.
