Front Door Window Regulator: Service and Repair

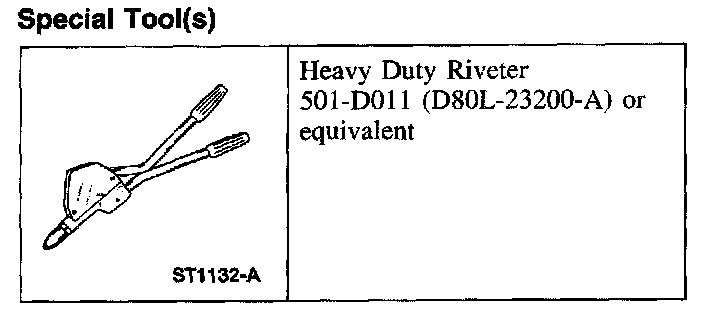

DOOR WINDOW GLASS - FRONTSpecial Tool(s):
Special Tool(s)
NOTE:
- RF side shown. LF side similar.
- The LF window motor must be reinitialized whenever: the motor is removed from window regulator drum housing, a new motor is installed, a new window regulator is installed, a new window glass is installed, glass top run removal or installation, and when carrying out any operation in which grease or lubricants are applied to the window system. A new LF window motor will be in a proportional up/down mode until initialized.
1. Remove the front door trim panel.
2. Remove the door weathershield.
3. Remove the front door speaker.
4. Disconnect and position aside the exterior mirror electrical connector.

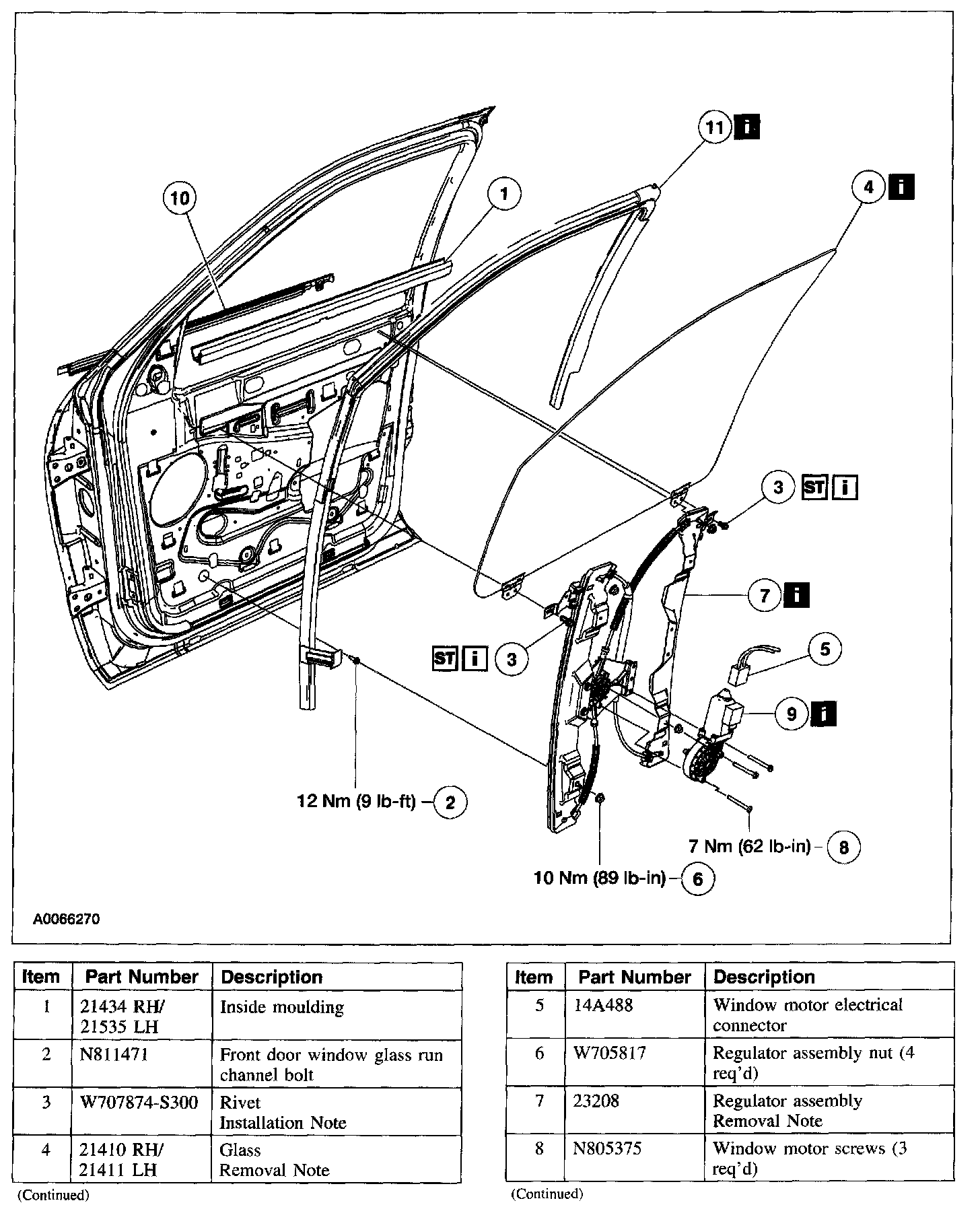

5. Remove the components in the order indicated in the illustration and table.
To remove individual components, only carry out the listed steps.

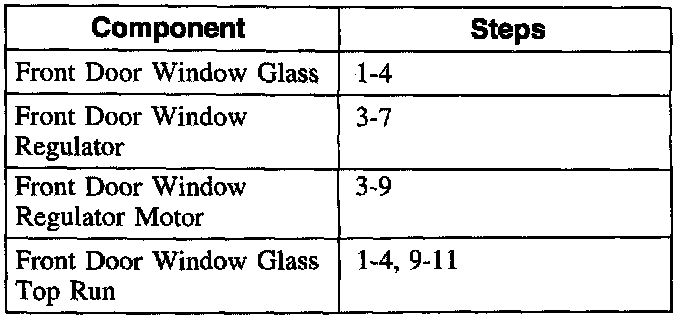

Part 1:

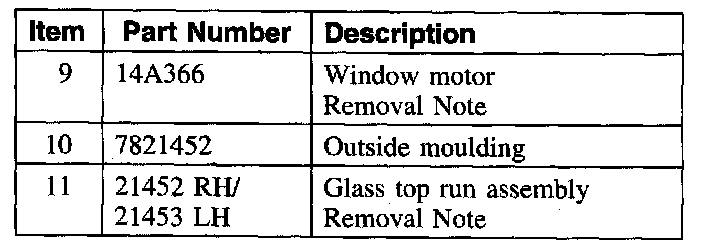

Part 2:
6. To install, reverse the removal procedure.
7. If the work was carried out on the LF door, reinitialize the LF window motor.
Item 3: Rivet Installation Note

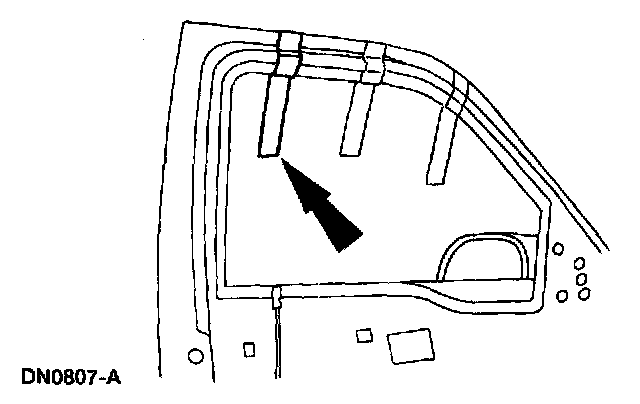

1. Lower the front door window glass as necessary to access rivets.
Item 4: Glass Removal Note
NOTE: The LF window motor must be reinitialized whenever: the motor is removed from window regulator drum housing, a new motor is installed, a new window regulator is installed, a new window glass is installed, glass top run removal or installation, or when carrying out any operation in which grease or lubricants are applied to the window system. A new LF window motor will be in a proportional up/down mode until initialized.
1. If removing only the front door window glass regulator assembly and motor, tape window in the closed position after removing rivets.
2. If removing the front door window glass, pull glass out through the top inboard side of the door.
Item 7: Regulator Assembly Removal Note
1. NOTE: The LF window motor must be reinitialized whenever: the motor is removed from window regulator drum housing, a new motor is installed, a new window regulator is installed, a new window glass is installed, glass top run removal or installation, or when carrying out any operation in which grease or lubricants are applied to the window system. A new LF window motor will be in a proportional up/down mode until initialized.

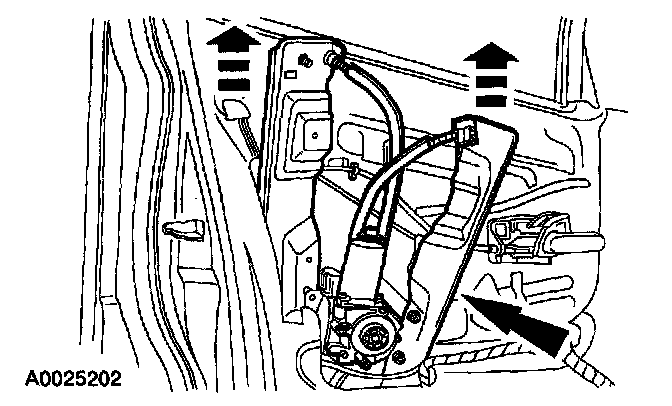

Disconnect the window regulator motor electrical connector and pull the motor through the door opening.
Item 9: Window Motor Removal Note
1. NOTE: The LF window motor must be reinitialized whenever: the motor is removed from window regulator drum housing, a new motor is installed, a new window regulator is installed, a new window glass is installed, glass top run removal or installation, or when carrying out any operation in which grease or lubricants are applied to the window system. A new LF window motor will be in a proportional up/down mode until initialized.
Use a flat-blade screwdriver between the window regulator motor and window regulator assembly to hold the window regulator assembly drum in place.
Item 11: Glass Top Run Assembly Removal Note
1. NOTE: The LF window motor must be reinitialized whenever: the motor is removed from window regulator drum housing, a new motor is installed, a new window regulator is installed, a new window glass is installed, glass top run removal or installation, or when carrying out any operation in which grease or lubricants are applied to the window system. A new LF window motor will be in a proportional up/down mode until initialized.
Remove the glass top run assembly up through the top opening of the front door.
