Rear Door Window Regulator: Service and Repair

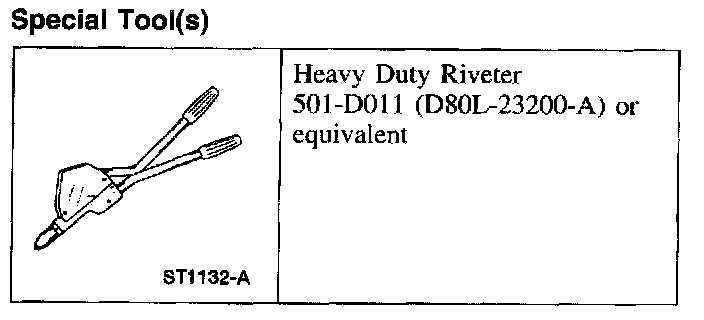

DOOR WINDOW GLASS - REARSpecial Tool(s):
Special Tool(s)
Removal and Installation
NOTE: RH side shown. LH side similar.
1. Remove the rear door trim panel.
2. Remove the door weathershield.
3. Remove the rear door mounted speaker.

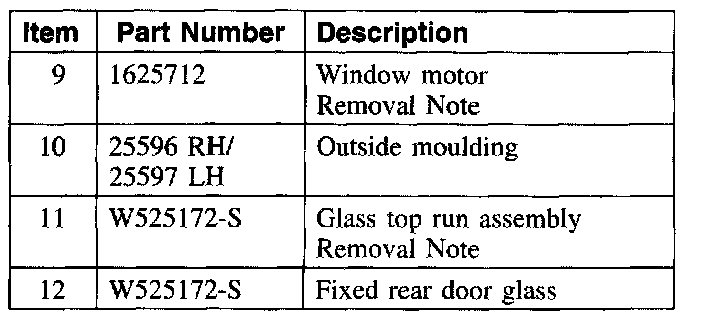

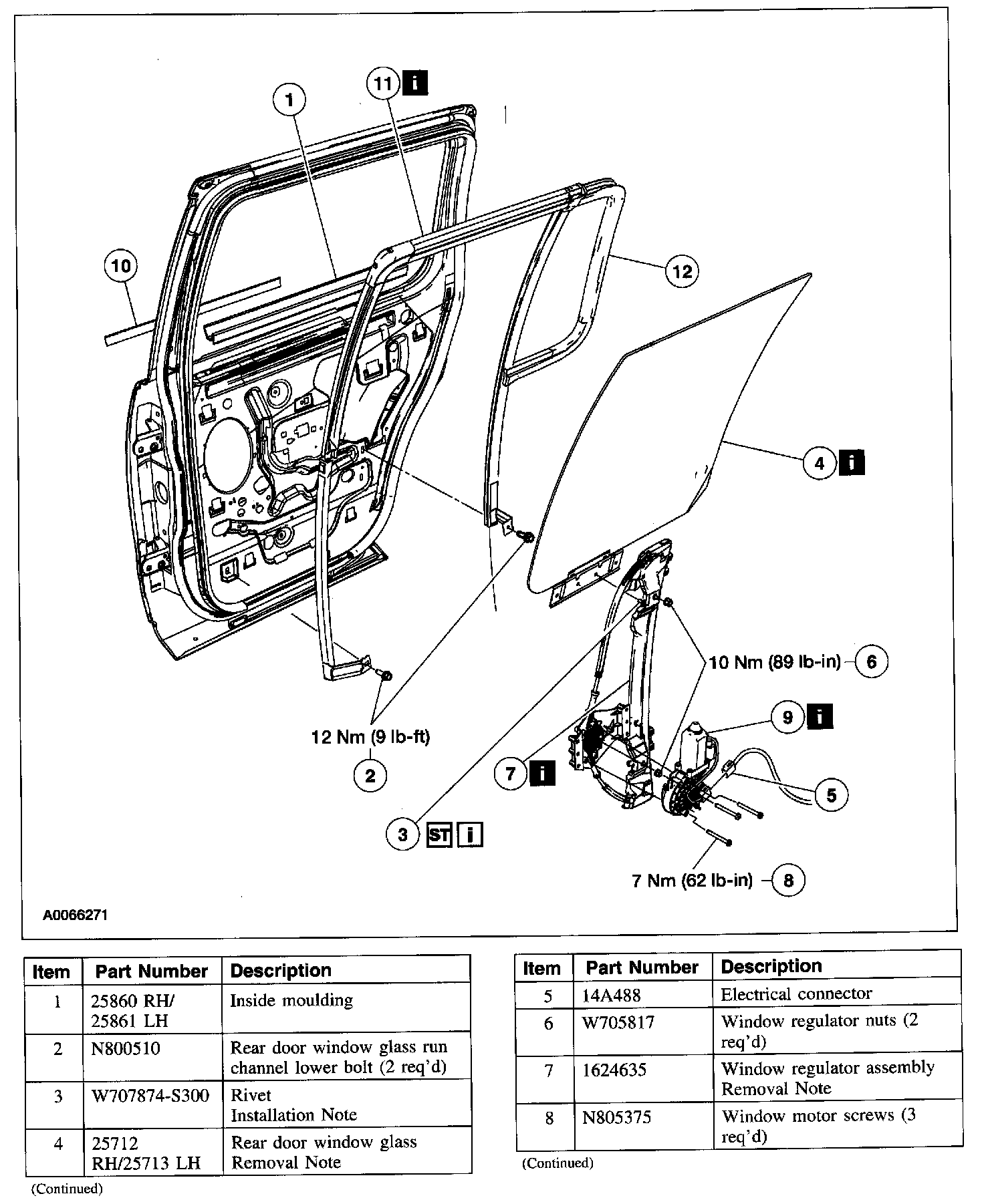

4. Remove the components in the order indicated in the illustration and table.

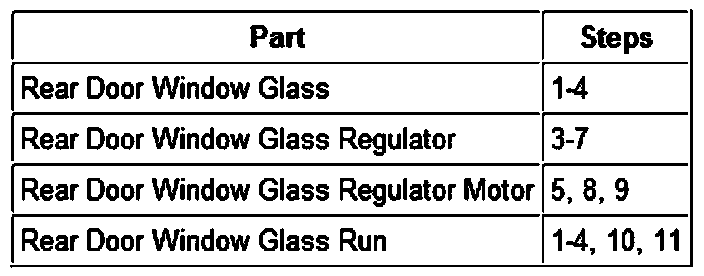

To remove individual components, only carry out the listed steps.
Part 1:
Part 2:
5. To install, reverse the removal procedure.
Item 4: Rear Door Window Glass Removal Note
1. If only removing the rear door window glass regulator assembly and motor, tape window in the closed position after removing the rivet.
2. If removing the rear door window glass, remove the applique on the rear door.
- Remove the screws.

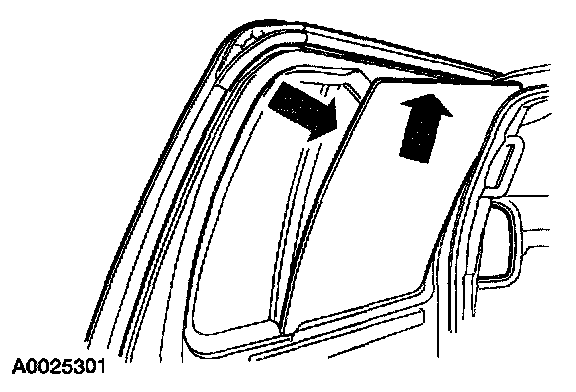

3. If removing the rear door window glass, pull the glass out through the top inboard side of the door.
Item 7: Door Window Regulator Assembly Removal Note

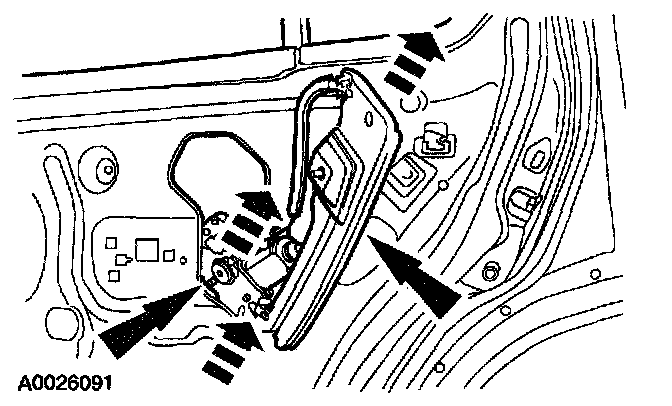

1. Remove the window glass regulator assembly through the door opening.
Item 9: Window Motor Removal Note

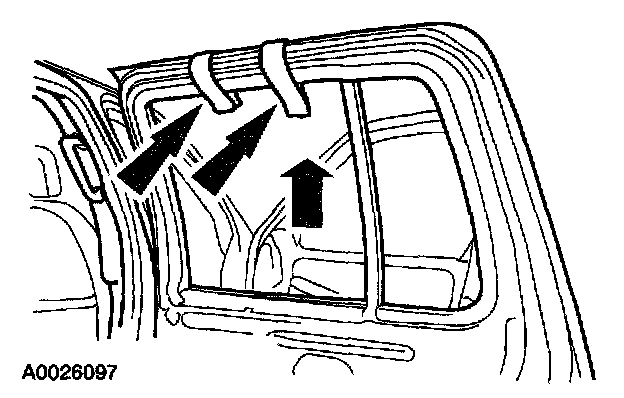

1. Before removing the window motor, secure the glass in the full up position with tape.
2. Use a flat-blade screwdriver between the window regulator motor and window regulator assembly to hold the window regulator assembly drum in place.

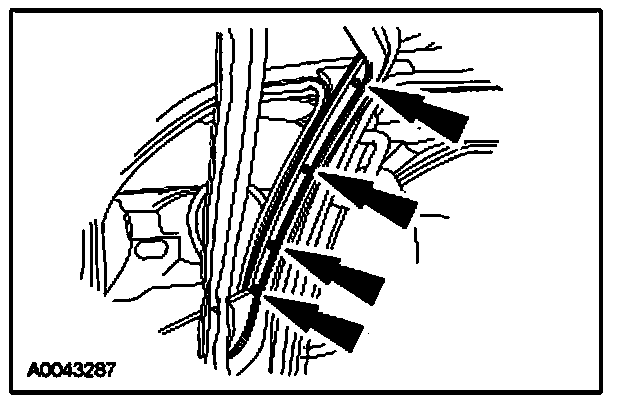

Item 11: Glass Top Run Assembly Removal Note
1. Remove the glass top run through the top opening of the rear door.

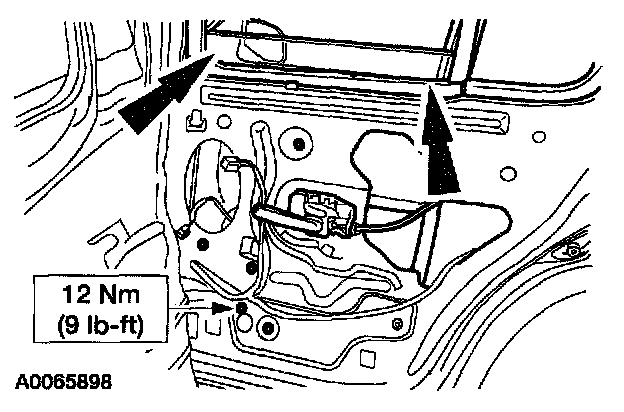

Item 3: Rivet Installation Note
1. Lower the rear door window glass as necessary to access rivet.
