Lincoln
>>
2003
>>
Aviator 4WD V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
System Diagram
>>

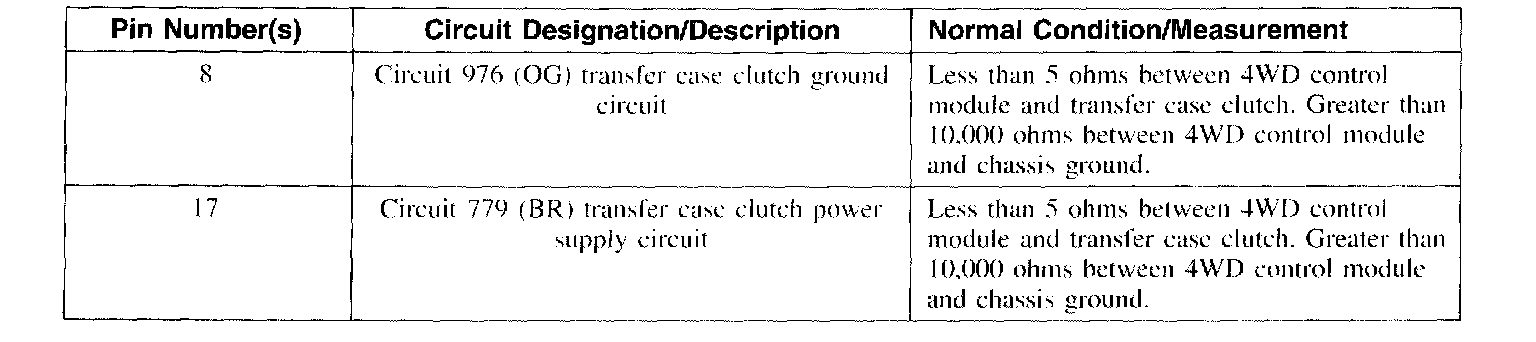

Four Wheel Drive (4WD) Control Module C281A
Four Wheel Drive (4WD) Control Module C281A
Four Wheel Drive (4WD) Control Module C281a
Part 1 Of 2:
Part 2 Of 2:
