Child Safety Seat Tether Anchor - LATCH

CHILD SAFETY SEAT TETHER ANCHOR - LATCH

REMOVAL

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped), child safety seat tether attachments and attaching hardware should be inspected after any collision. All belt assemblies should be installed new unless a qualified technician finds the assemblies show no damage and operate properly. Belt assemblies not in use during a collision should also be inspected and installed new if either damage or improper operation is noted.

NOTE:
- Sealant must be applied to the tether anchor bolts when installed.
- Passenger side shown, driver side similar.

1. To access the tether anchors, remove the rear seat cushion, seat back and position aside the carpet.

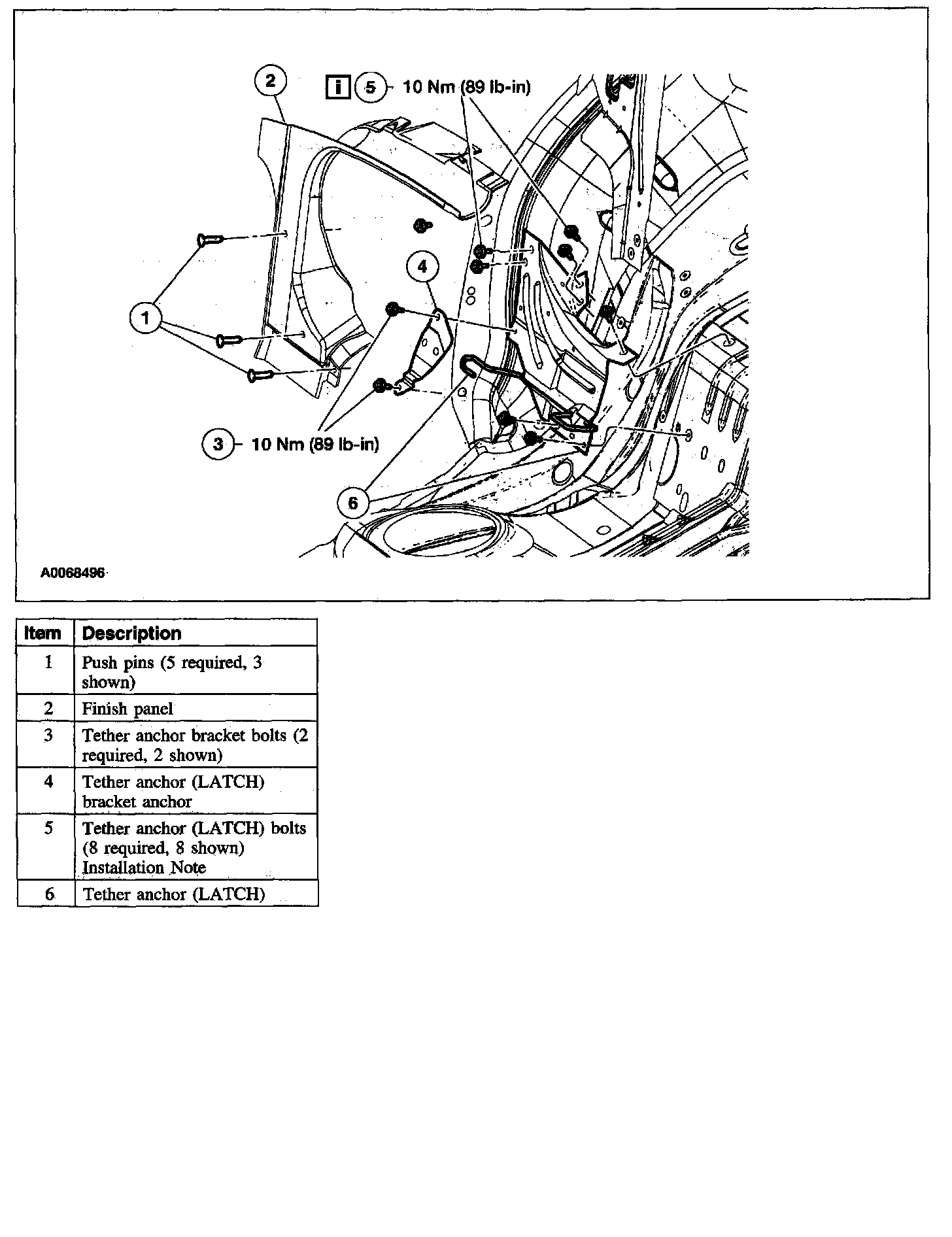

2. Remove the components in the order indicated in the illustration and table. To remove individual components, carry out the steps shown in the table.

INSTALLATION







1. To install, reverse the removal procedure.

Item 5: Tether Anchor (LATCH) Bolts Installation Note
1. Sealant must be applied to the tether anchor (LATCH) bolts when installed.
