Transmission Mount: Service and Repair

Transmission Support Insulator

Removal and Installation
1. With the vehicle in NEUTRAL position it on a hoist.
2. Support the transmission with a transmission jack.

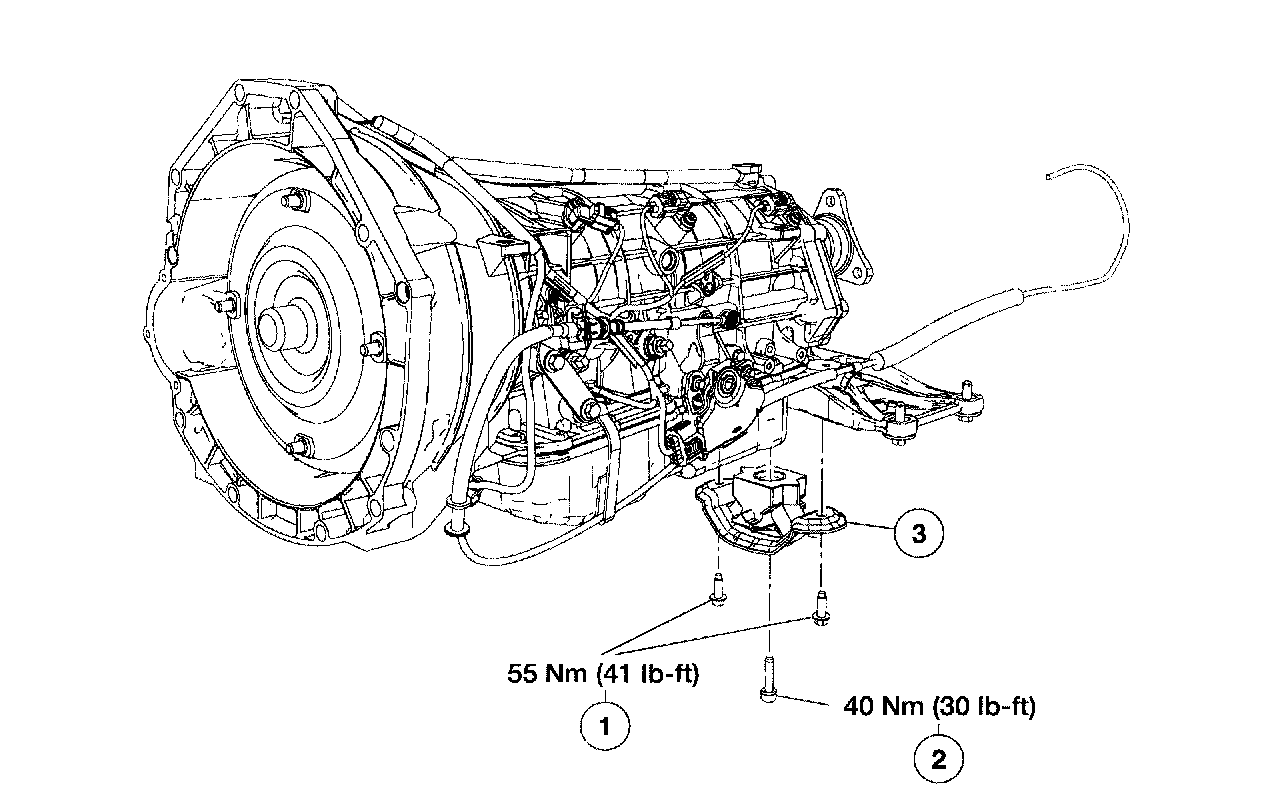

3. Remove the components in the order indicated in the illustration and table.








4. To install, reverse the removal procedure.
