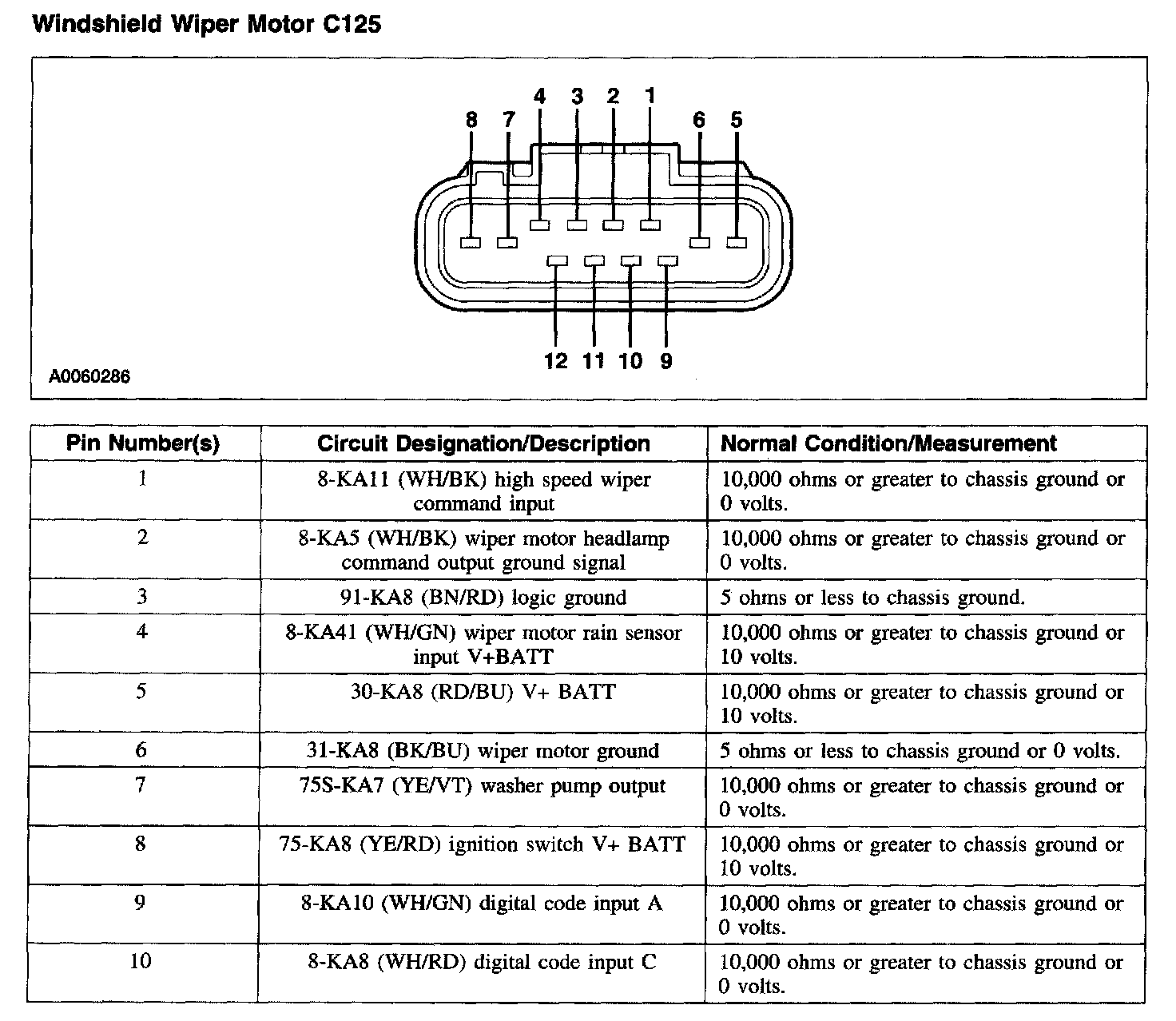

Windshield Wiper Motor C125

Windshield Wiper Motor C125, Part 1:



Windshield Wiper Motor C125, Part 2:
