Ignition Coil: Service and Repair
IGNITION COILREMOVAL

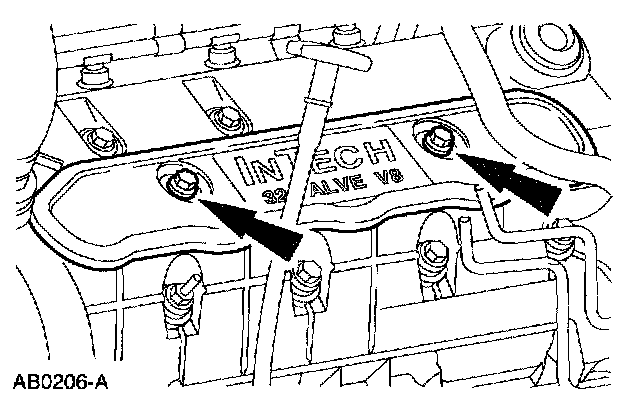

1. Remove the bolts and the ignition coil cover.
2. Disconnect the electrical connector from the ignition coil.

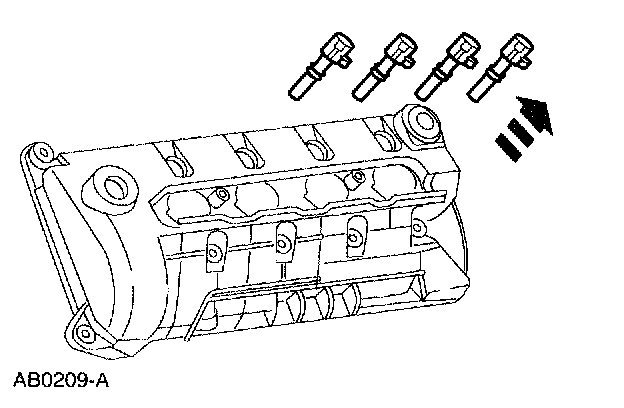

3. Remove the ignition coils.
INSTALLATION

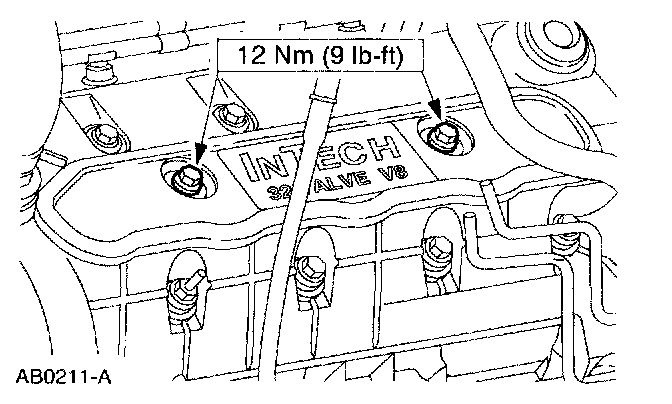

1. To install, reverse the removal procedure.
