EATC/Datc

CLIMATE CONTROL ASSEMBLY - EATC, DATC

REMOVAL

Navigator
1. Disconnect the negative battery cable.

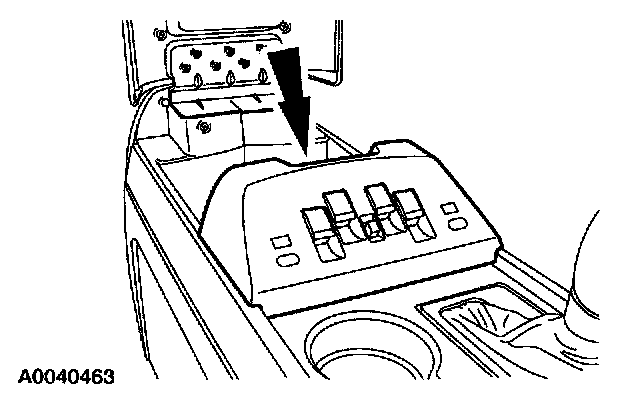

2. Detach and position aside the switch housing.

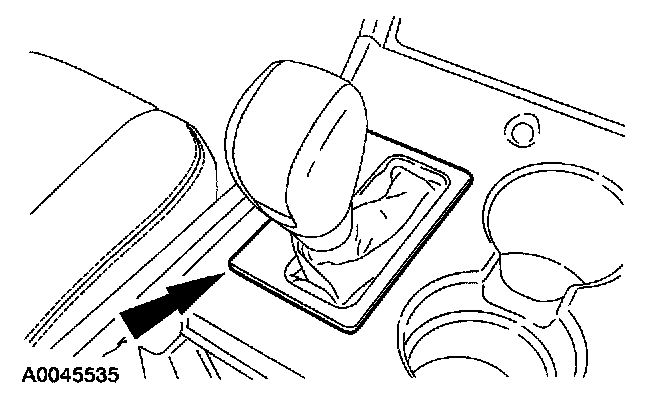

3. Detach the shift lever cover.
- Disconnect the electrical connector.

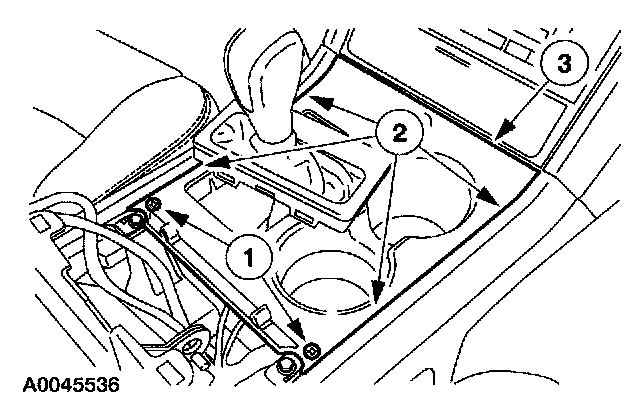

4. Remove the center console trim panel.
1 Remove the screws.
2 Disengage the four clips.
3 Remove the center console trim panel.

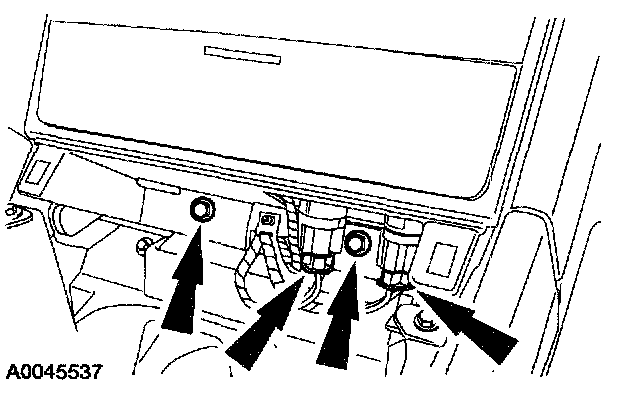

5. Disconnect the electrical connectors and remove the screws.

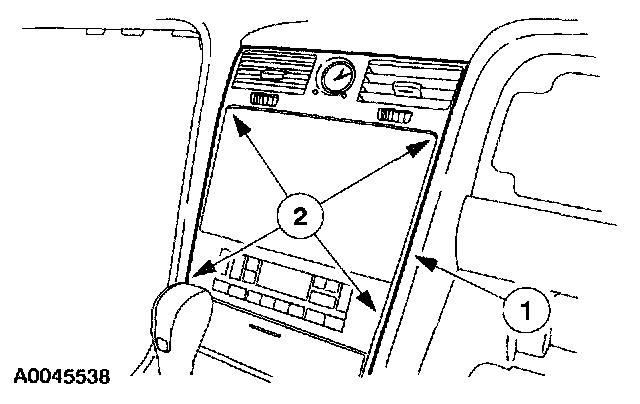

6. Remove the center instrument panel finish panel.
1 Open the audio unit cover to the full open position.
2 Disengage the four clips.
- Disconnect the electrical connectors.

Expedition
7. Apply the parking brake and place the gear selector in (I).
8. Disconnect the negative battery cable.







9. Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.

All vehicles

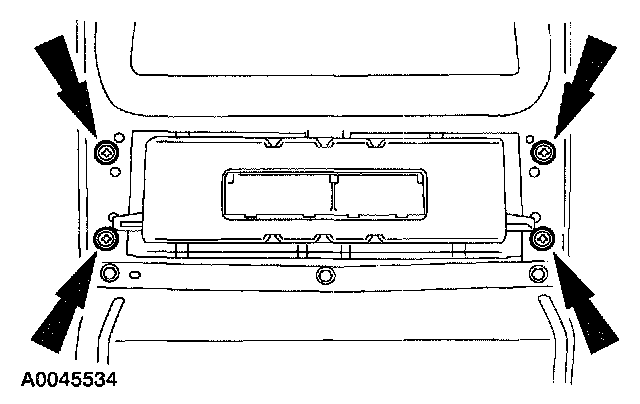

10. NOTE: Navigator shown, Expedition similar.

Remove the screws and the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
