Test F: Solenoid Mechanical Failure
Test F: Solenoid Mechanical Failure

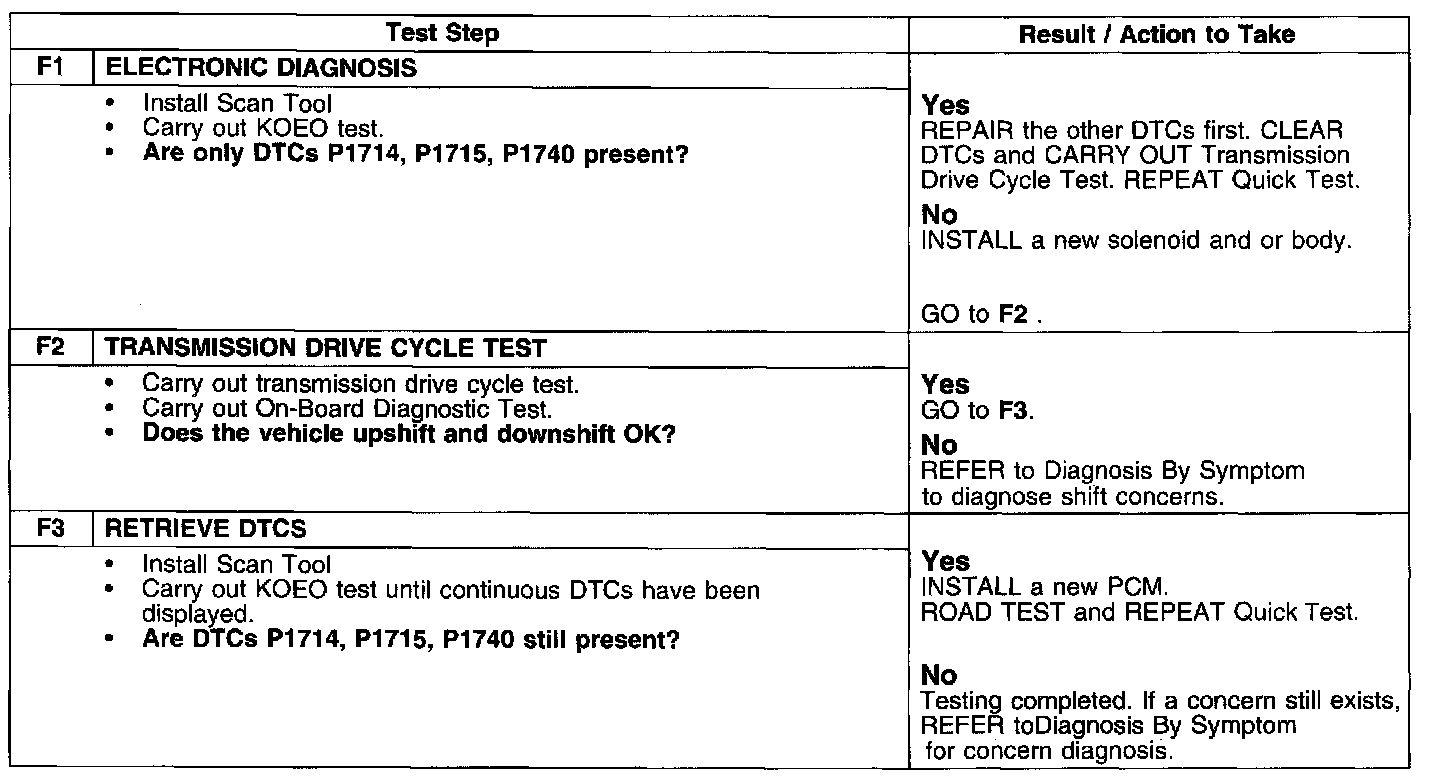

PINPOINT TEST F:
SOLENOID
MECHANICAL FAILURE
Test F1-F3:
NOTE:
Repair all other DTCs before repairing the following DTCs P1714, P1715 P1740.
