Driver Seat (Dsm) Module

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the driver seat.

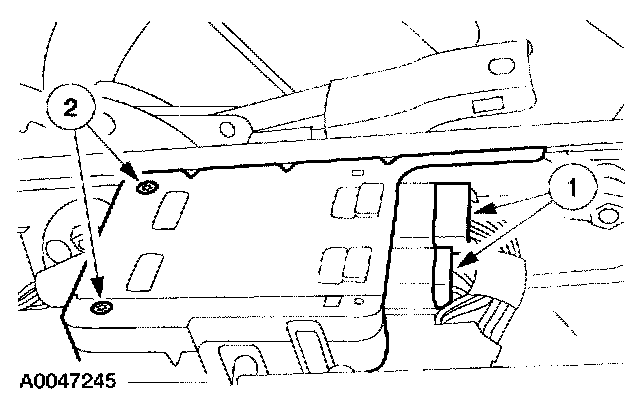

3. Remove the Driver Seat Module (DSM).
1 Disconnect the electrical connectors.
2 Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
